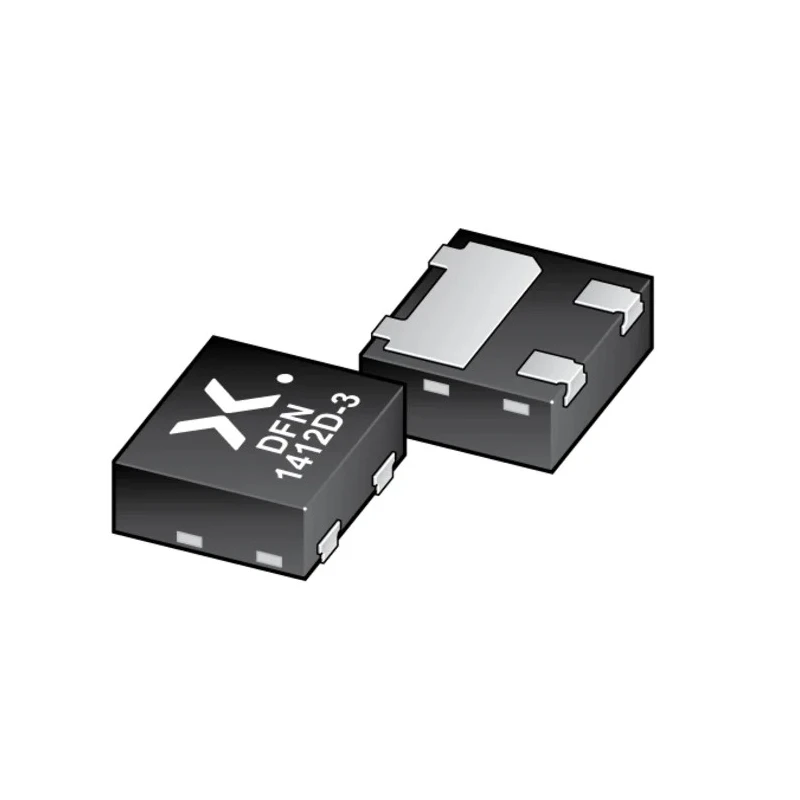

Nexperia 30 V 200 mA Schottky Barrier Diode DFN1412D-3 BAT54QC-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54QC-QZ |
| Mount Type | Surface |
| Series | BAT54QC-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |
Key Features
- The diode features low forward voltage of 380 mV ensuring efficient operation.
- Surface mount leadless DFN1412D-3 package reduces space on PCB.
- Operating temperature range from -55°C to 150°C suits demanding environments.
- Qualified to automotive standard AEC-Q101 for reliability.
- Low capacitance and low package height of 0.5 mm enable compact, high-performance applications.
- Leadless package compatibility with Automatic Optical Inspection (AOI) improves manufacturing yields.
- RoHS compliant ensuring environmental safety.
- Single Schottky diode configuration for versatile electronic designs.
Product Description
Nexperia BAT54QC-QZ is a Schottky Barrier Diode designed for high efficiency and compactness, packaged in an ultra-small leadless DFN1412D-3 (SOT8009) surface-mounted device. It supports a maximum continuous forward current of 200 mA and peak reverse voltage of 30 V, making it suitable for low voltage applications.
The diode's low forward voltage of 380 mV contributes to reduced power losses and improved performance in power-sensitive circuits. It operates reliably over a wide temperature range from -55°C to 150°C, making it suitable for industrial, automotive, and consumer electronics.
The DFN1412D-3 package features side-wettable flanks and a low profile height of 0.5 mm, enabling space-efficient PCB layouts. The leadless construction supports Automated Optical Inspection (AOI) of solder joints, enhancing manufacturing quality assurance.
This component is qualified to the automotive AEC-Q101 standard, attesting to its robustness and reliability in automotive electronic applications. The diode’s low capacitance characteristic aids high-frequency operation, making it ideal for switching and rectifying required circuits.
Applications include power management, automotive electronics, battery protection, and other electronic systems requiring a reliable low voltage Schottky diode. The diode has low forward voltage ensuring minimal conduction losses.
Compact surface mount package ideal for dense PCB assembly. Wide operating temperature range supports harsh environments. Automotive grade compliant with AEC-Q101 standard. Leadless package supports automated inspection methods.
RoHS compliant ensuring manufacturing and environmental safety. Single diode structure for flexible circuit design. Suitable for automotive, industrial, and consumer electronics applications. Explore more Schottky Diodes & Rectifiers from Nexperia on EnvMart for high-quality semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the BAT54QC-QZ Schottky diode is 200 mA.
This diode has a peak reverse voltage rating of 30 V.
The operating temperature range for this model is from -55°C to 150°C.
The forward voltage drop of the BAT54QC-QZ is 380 mV.
This diode is packaged in a leadless DFN1412D-3 package.
Yes, the BAT54QC-QZ is qualified to the automotive standard AEC-Q101.
The DFN1412D-3 package has a low profile height of 0.5 mm, which supports compact PCB layouts.
This Schottky diode is suitable for applications in power management, automotive electronics, and battery protection.
The BAT54QC-QZ features low capacitance, which aids in high-frequency operation.
Yes, the leadless construction of this diode supports Automated Optical Inspection (AOI) of solder joints.
The country of origin for this diode is India.
The BAT54QC-QZ uses a single diode configuration.
