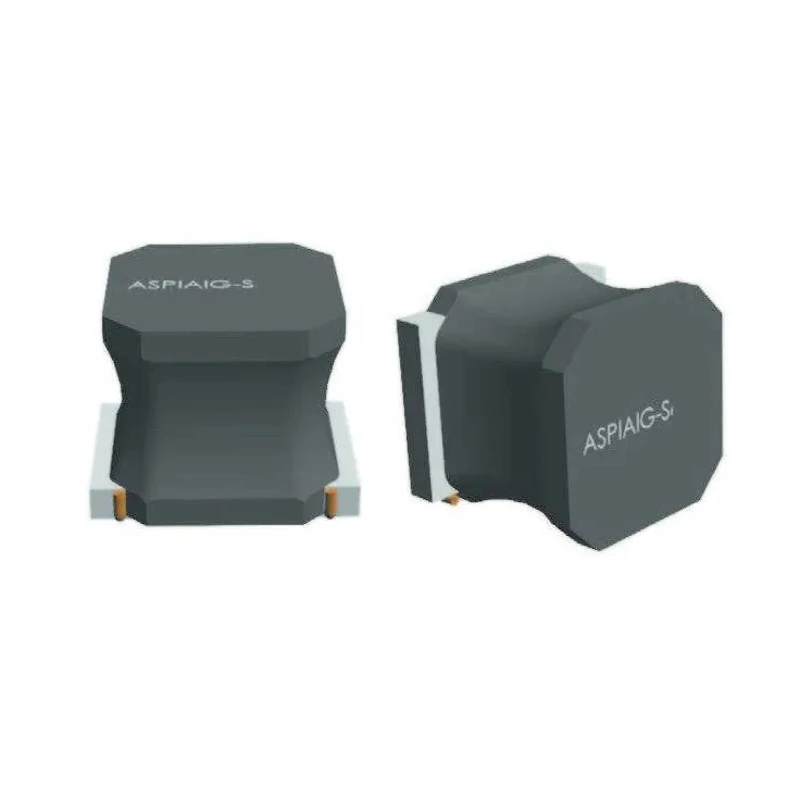

Abracon Compact Shielded Surface Mount Power Inductor, Ferrite Core, 100μH, 1.25A, Surface Mount ASPIAIG-S6055-101M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5.5mm |
| Length | 6mm |
| Model | ASPIAIG-S6055-101M-T |
| Depth | 5.5mm |
| Series | ASPIAIG-SXXXX |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | ISO 9001-2015 |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.25A |
| Pin Count | 2 |
| Inductance Tolerance | 20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Compact Shielded Surface Mount Power Inductor |
Key Features
- Compact shielded design reduces electromagnetic interference effectively.
- Surface mount package with size 6mm length, 5.5mm height, and 5.5mm depth.
- Maximum DC current rating of 1.25 amps ensures robust power handling.
- Wide operating temperature range from -40°C to 125°C for diverse environments.
- Automotive grade construction supports automotive electronics systems.
- Moulded design enhances durability and reliability.
- 20 percent inductance tolerance meets precision requirements.
- Environmental compliant with ISO 9001-2015 standards.
Product Description
Abracon ASPIAIG-S6055-101M-T is a Compact Shielded Surface Mount Power Inductor featuring a ferrite core and a 100μH inductance, designed for high-performance electronic applications. It operates within a temperature range from -40°C to 125°C, making it suitable for industrial, automotive, transportation, solar power, and lighting applications where size and electromagnetic interference reduction are critical.
This power inductor has a surface mount package with dimensions of 6mm length, 5.5mm height, and 5.5mm depth. The shielded construction minimizes EMI, contributing to stable and reliable operation in high-density electronic circuits. It supports a maximum DC current of 1.25 amperes, making it ideal for automotive body electronics, comfort systems, and navigation modules requiring durable inductors.
The Abracon ASPIAIG series ensures high reliability with wire-wound, moulded construction and complies with ISO 9001-2015 quality standards. The product is automotive grade and supports PPAP level 3 requirements, confirming its suitability for automotive manufacturing and quality assurance processes.
Compact shielded design reduces electromagnetic interference effectively. Robust surface mount package supports standard PCB assembly. Wide temperature range ensures operation in harsh conditions. High inductance with 20 percent tolerance for consistent performance.
Automotive grade with ISO certification supporting automotive electronics. Durable moulded ferrite core construction enhances reliability. Maximum DC current 1.25A enables robust power handling capabilities. 2-pin termination style designed for secure soldering on PCBs.
This inductor is widely used in industrial electronics, automotive systems, renewable energy installations, and commercial electronic devices where noise reduction and compactness are vital. It is a preferred choice for electrical engineers seeking reliable Surface Mount Inductors with a compact design and high current rating.
Browse the Electronics Components category at EnvMart to find a comprehensive range of inductors and passive components designed for professional industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100μH, which is suitable for various electronic applications.
The maximum DC current rating for this inductor is 1.25A, ensuring robust power handling capabilities.
It has a compact surface mount package with dimensions of 6mm in length, 5.5mm in height, and 5.5mm in depth.
The inductor utilizes a ferrite core, which is effective in reducing electromagnetic interference.
This model features a surface mount termination style, designed for secure soldering on PCBs.
The inductance tolerance for this unit is 20%, ensuring consistent performance in various applications.
Yes, it complies with ISO 9001-2015 standards, confirming its quality assurance processes.
It is widely used in industrial electronics, automotive systems, renewable energy installations, and commercial electronic devices.
The ASPIAIG-S6055-101M-T features a compact shielded construction, which enhances durability and reduces EMI.
The country of origin for this inductor is India.
This model has a pin count of 2, suitable for standard PCB assembly.
