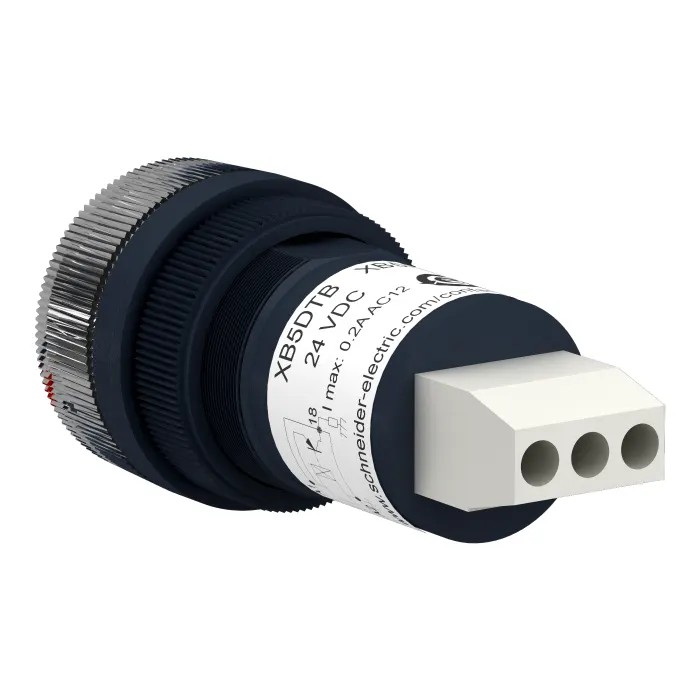

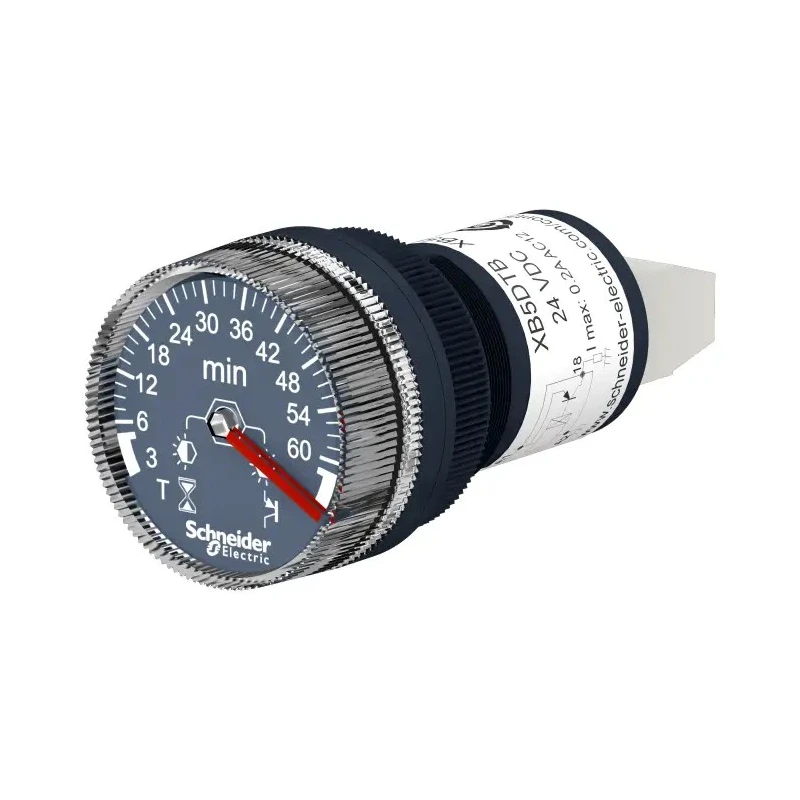

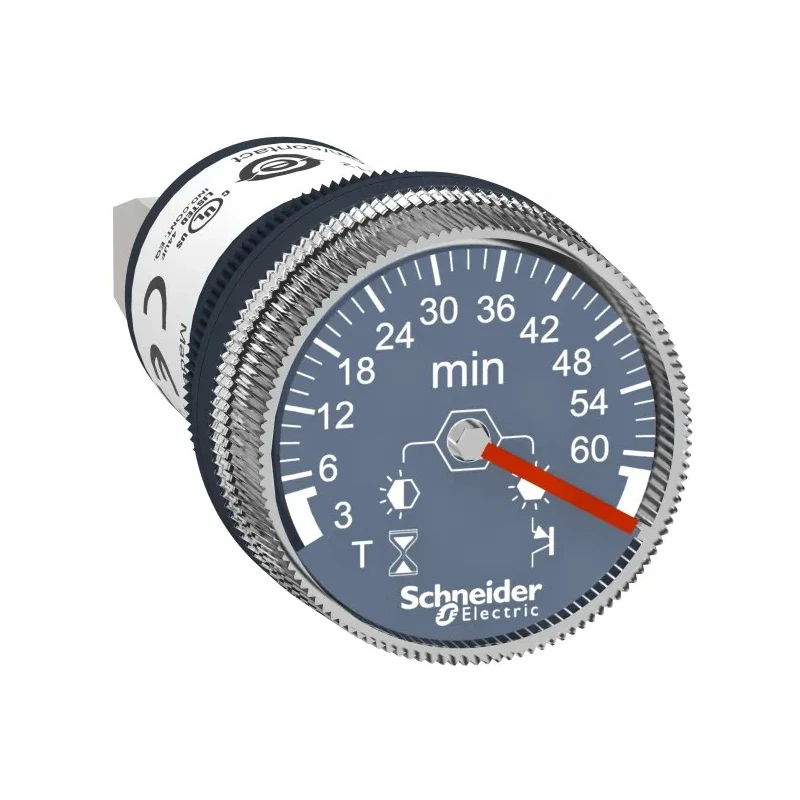

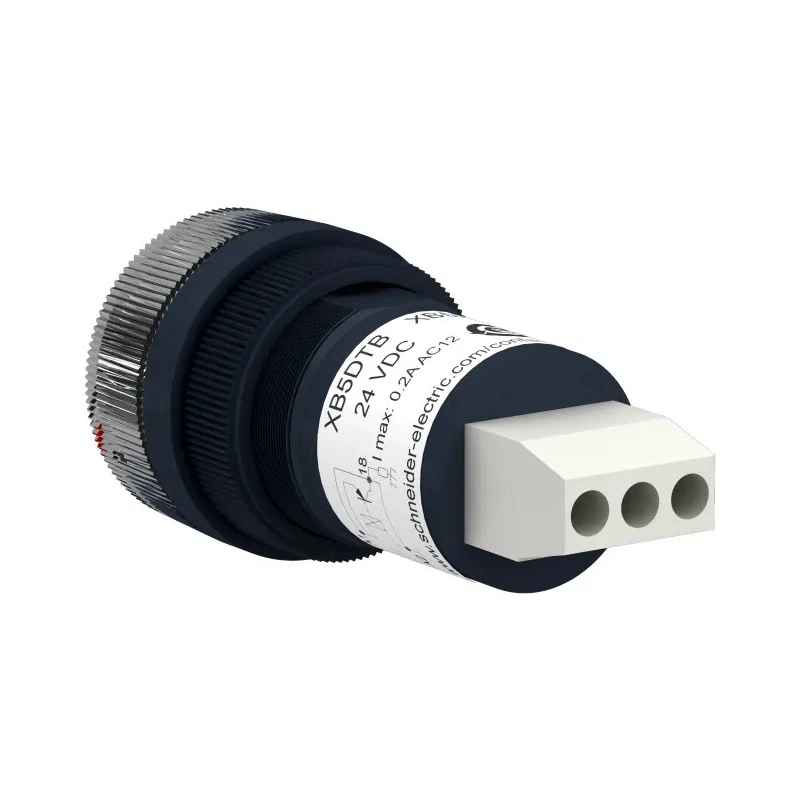

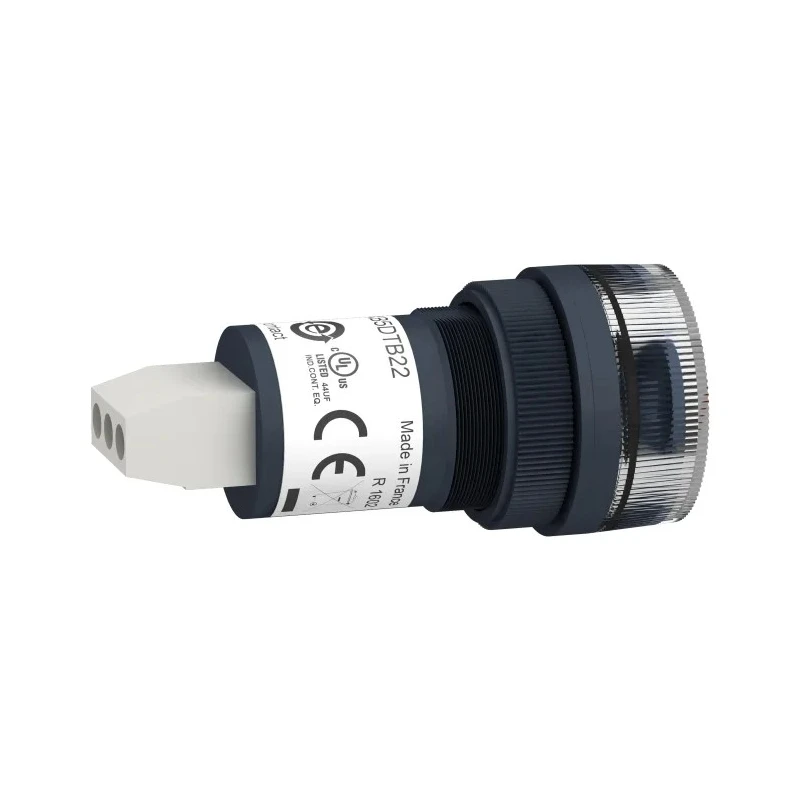

Crouzet Harmony XB5 Series Panel Timer Relay 24 V dc 24 V ac 3 to 60 min 1-Function XB5DTB25

Schneider Electric XB5DTB25 Panel Timer Relay is part of the Harmony XB5 series, designed for precise timing applications in industrial, electrical, and automation systems. The relay operates on a supply voltage of 24 V dc or 24 V ac and supports a timing interval adjustable from 3 to 60 minutes with a single timer function, making it ideal for machine process timing control.

This timer relay is panel mountable with a standard 22.5 mm diameter cut-out, complemented by screw terminal connections for reliable wiring. It features an offset double ring end function to provide consistent and accurate timing that enhances operational efficiency. The device's IP20 and IP65 ratings offer robust protection against dust, water, and impact, allowing it to perform reliably in harsh industrial environments.

The compact form factor with dimensions of 62 mm height, 62 mm length, and 90 mm width facilitates flexible installation in control panels. Withstanding operating temperatures between -20°C and 60°C, it ensures performance across varied environmental conditions. The product holds certification approvals such as UL 508, CE, and EN/IEC 61812-1, assuring compliance with global safety and quality standards.

An integral LED indicator provides visible timing status, allowing easy monitoring during operation. Additionally, the relay supports sustainability with repairability offered to end users, extending product life and reducing waste.

Panel mount timer relay with 22.5 mm mounting hole diameter. Offset double ring end function for sensitive timing precision. Time range adjustable between 3 to 60 minutes for versatile usage. Single timer function suitable for straightforward timing tasks.

IP20 and IP65 rated for dust and water resistance, suitable for industrial use. Screw terminal type provides secure, manageable electrical connections. Compact size integrates into varied control panel configurations. Wide operating temperature range from -20°C to 60°C enhances operational reliability.

Certified to UL 508, CE, and EN/IEC 61812-1 international standards. Includes a visual LED to indicate active timing. Repairable by end users to promote sustainability and reduce downtime.

This Schneider Electric Harmony XB5 Panel Timer Relay is widely applicable in industrial automation, manufacturing controls, electrical panels, and other machine timing scenarios. Advanced features and robust design ensure a dependable solution for timing relay needs.
