| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.33mm |
| Length | 0.63mm |
| Model | ESDALC5-1BF4 |
| Width | 0.32mm |
| Mount Type | Surface |
| Series | ESDALC5-1BF4 |
| Maximum Operating Temperature | 150°C |
| Package Type | 0201 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 2 |
| Clamping Voltage VC | 30V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 5.8V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 28W |
| Maximum Peak Pulse Current Ippm | 2.5A |

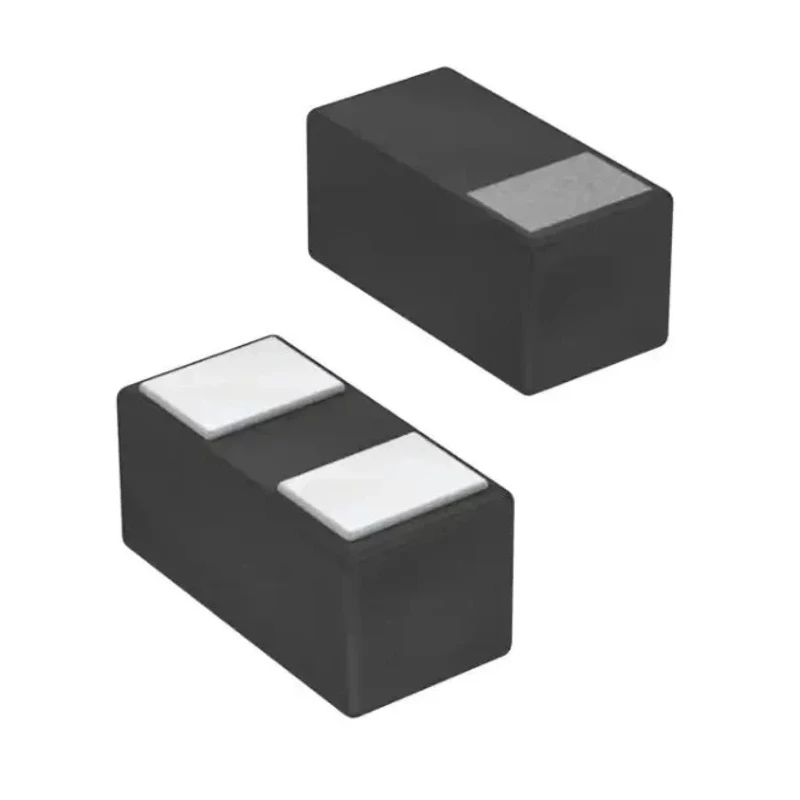

STMicroelectronics ESDALC5-1BF4 is a Bi-Directional Transient Voltage Suppression (TVS) diode designed to provide robust electrostatic discharge (ESD) protection for sensitive electronic components, especially data lines and input/output ports. With a peak pulse power rating of 28 W, it effectively clamps voltage spikes and prevents damage from ESD transients.
Packaged in an ultra-compact 0201 surface mount format, this diode occupies minimal PCB space, measuring only 0.63 mm in length, 0.32 mm width, and 0.33 mm height, which is ideal for high-density automotive, industrial, and consumer electronic circuits.
Key specifications include a minimum breakdown voltage of 5.8 V, maximum reverse stand-off voltage of 30 V, and maximum clamping voltage of 30 V. It supports a peak pulse current of 2.5 A and operates reliably over a temperature range of -40°C to 150°C.
The device is compliant with IEC and RoHS standards and is qualified to the AEC-Q101 automotive standard, ensuring suitability for demanding automotive electronic applications. Low leakage current and low capacitance characteristics preserve signal integrity in high-speed circuits.
As an ECOPACK2 compliant component, it aligns with environmentally responsible design and manufacturing practices. Low clamping voltage for effective protection. Bidirectional TVS diode for versatile ESD protection. Ultra-small 0201 surface mount package suitable for high density boards.
28 W peak pulse power rating with 2.5 A peak current handling. Compliance with IEC, RoHS, and automotive AEC-Q101 standards. Wide operating temperature range from -40°C to 150°C. Designed for minimal leakage current and low capacitance.
This TVS Diode is widely used in industrial, automotive, electronic manufacturing, telecommunications, and other applications requiring robust ESD protection with minimal board space. Its reliability, standards compliance, and small footprint make it an excellent choice for modern electronic designs.
