| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.33mm |
| Length | 0.63mm |
| Model | ESDALC5-1BF4 |
| Width | 0.32mm |
| Mount Type | Surface |
| Series | ESDALC5-1BF4 |
| Maximum Operating Temperature | 150°C |
| Package Type | 0201 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 2 |
| Clamping Voltage VC | 30V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 5.8V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 28W |
| Maximum Peak Pulse Current Ippm | 2.5A |

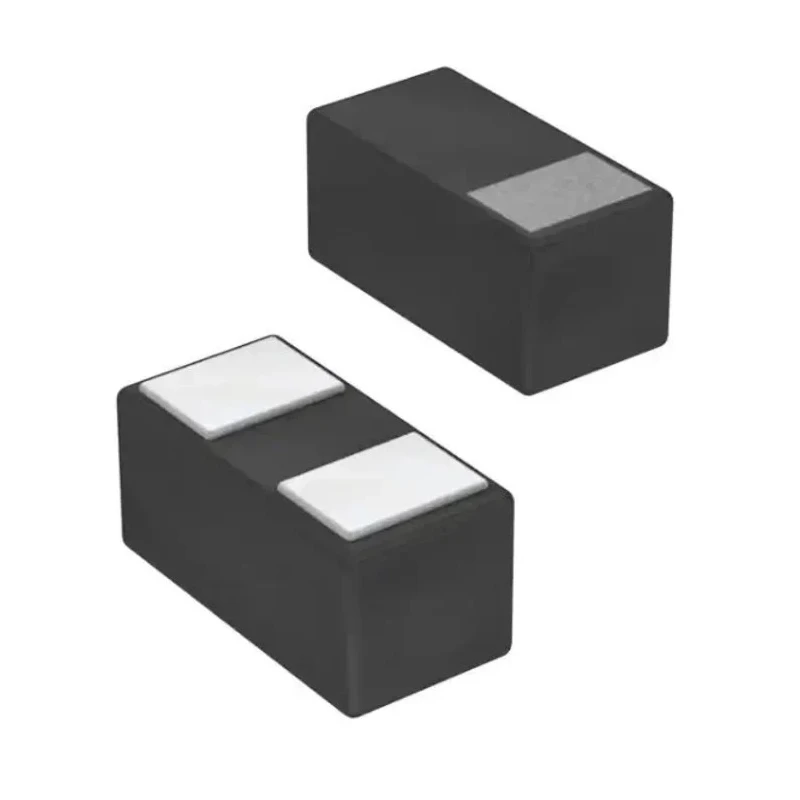

STMicroelectronics ESDALC5-1BF4 is a high-performance bi-directional TVS diode designed to protect electronic circuits against electrostatic discharge and transient voltage spikes. With a peak pulse power dissipation capability of 28 W and a compact 2-pin 0201 package, it is ideally suited for protecting sensitive data lines and I/O ports in a variety of electronic applications.
This diode features a low clamping voltage which reduces the risk of damage to components during ESD events, while its low leakage current contributes to efficient power usage. The device operates over a broad temperature range from -40°C up to 150°C, making it reliable for industrial, automotive, and consumer electronics environments.
Built to meet the IEC 61000-4-2 level 4 standard, the ESDALC5-1BF4 diode supports robust ESD protection of ±15 kV air discharge and ±8 kV contact discharge. The component is also compliant with RoHS directives and adheres to the stringent AEC-Q101 automotive qualification standard, ensuring dependable performance under harsh operating conditions.
The ultra-small 0201 surface mount package occupies just 0.18 mm² of PCB area, enabling space-saving layouts in compact device assemblies. Its 2-pin configuration simplifies integration into existing and new circuit designs, providing versatile application possibilities in industrial, automotive, communication, and consumer electronics sectors.
Low clamping voltage for sensitive circuitry protection. Bi-directional operation for data line and I/O port safeguarding. Low leakage current improves power efficiency. 0201 surface mount package minimizes PCB footprint.
Wide operating temperature range from -40°C to 150°C. Meets IEC 61000-4-2 level 4 ESD protection standards. AEC-Q101 qualified for automotive applications. Complies with RoHS environmental standards. Ultra-low PCB area of 0.18 mm².
Ideal for industrial, automotive, communication, and consumer electronics use. Explore EnvMart’s category for TVS Diodes to find a comprehensive selection from trusted manufacturers including STMicroelectronics.
