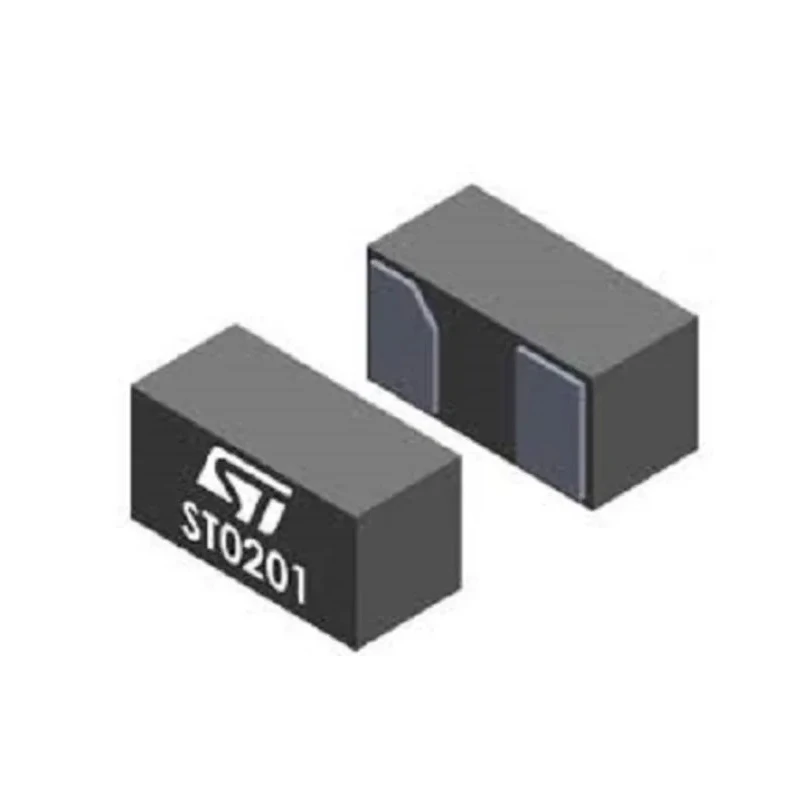

STMicroelectronics Uni-Directional TVS Diode, Surface Mount, 3-Pin 0201 Package, 5.8V Breakdown Voltage, 9V ESDA5-1F4
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.33mm |
| Length | 0.63mm |
| Model | ESDA5-1F4 |
| Width | 0.32mm |
| Mount Type | Surface |
| Series | ESDA5-1F4 |
| Maximum Operating Temperature | 150°C |
| Package Type | 0201 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, IEC |
| Pin Count | 3 |
| Clamping Voltage VC | 9V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.8V |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- The device is designed for low clamping voltage and low leakage current applications.
- It offers a minimum breakdown voltage of 5.8V and a clamping voltage of 9V for surge protection.
- Suitable for data lines and I/O port protection where space saving is critical.
- Operates reliably from -55°C to 150°C operating temperature.
- Complies with RoHS and IEC standards and meets the automotive standard AEC-Q101.
Product Description
STMicroelectronics ESDA5-1F4 is a uni-directional TVS diode designed for surface mount applications, widely used to protect sensitive electronics against electrostatic discharge (ESD) and transient voltage spikes. Packaged in a compact 3-pin 0201 format, it is ideal for applications requiring minimal board space and low line capacitance.
This device provides a minimum breakdown voltage of 5.8V and clamps voltage at 9V under IEC 61000-4-2 contact discharge conditions at 30 ns. It features a low leakage current ensuring high efficiency and minimal power loss during operation.
The diode's operating temperature range from -55°C to 150°C allows for reliable use in harsh industrial, automotive, and consumer electronics environments. Its compliance with RoHS, IEC standards, and automotive AEC-Q101 qualification underlines its quality and reliability.
Typical applications include data line protection, signal line safeguarding, and general ESD transient suppression in communication devices, industrial control, and automotive systems.
The diode features a low clamping voltage for protection against voltage surges. Uni-directional design ideal for single line ESD protection. Compact 0201 surface mount package enhances PCB real estate efficiency. Wide operating temperature range accommodates diverse application environments.
Meets stringent automotive and industry standards for quality assurance.
This product is part of the extensive range of STMicroelectronics semiconductor devices available for industrial and commercial electronic designs. Browse the TVS Diode category at EnvMart for additional protection device options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 5.8V.
The clamping voltage is 9V under IEC 61000-4-2 contact discharge conditions.
It operates reliably within a temperature range of -55°C to 150°C.
This model is packaged in a compact 3-pin 0201 surface mount format.
The dimensions are 0.63mm in length, 0.32mm in width, and 0.33mm in height.
The maximum reverse leakage current is 100nA.
It complies with RoHS and IEC standards, and meets the automotive standard AEC-Q101.
This diode is suitable for data line protection, signal line safeguarding, and general ESD transient suppression.
It is a uni-directional TVS diode designed for single line ESD protection.
This model is designed for surface mount applications.
It belongs to the ESDA5-1F4 series of TVS diodes.
The country of origin for this product is India.
