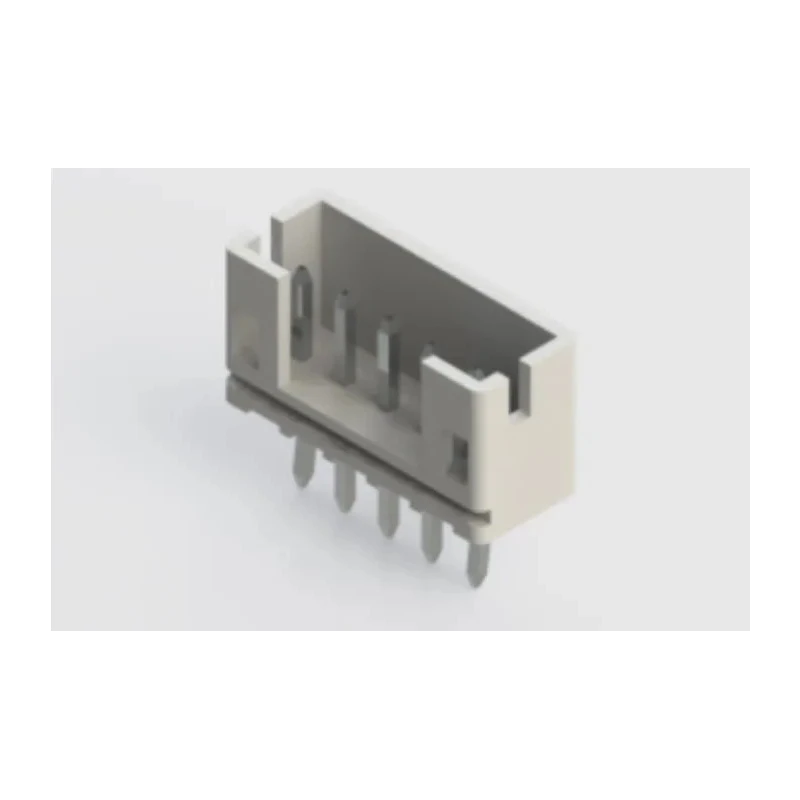

EDAC 140 Series Vertical Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-505-415-001

EDAC 140-505-415-001 is a vertical through hole PCB header connector from the 140 series, featuring 5 female brass contacts with tin plating and a 2 mm pitch in a single row, designed for high-density wire-to-board connections.

This connector utilizes a durable polyamide 66, UL94V-0 rated shrouded housing that provides excellent insulation and mechanical protection. Its vertical orientation and through hole mount ensure robust and reliable connection to PCBs in industrial electronics manufacturing.

Operating temperature ranges from -40°C to 105°C, making it suitable for a wide variety of commercial and industrial environments. Rated for 2 amps current and operating at a voltage up to 100 volts, this connector is ideal for signal and low power applications.

The design includes kinked first and last contacts for retention and stability. Tail pins of 3.4 mm length provide secure soldering to PCB pads. This component complies with RoHS standards, ensuring environmental compliance.

Typical applications include industrial automation, consumer electronics assembly, instrumentation, and telecommunications equipment where reliable, compact connectors are essential.

Durable polyamide 66 housing material. Vertical orientation suits compact PCB layouts. Secure wire-to-board connection system. 5 contacts with tin plated brass for conductivity and resistance. Wide operating temperature range of -40°C to 105°C.

Rated for 2A current and 100V voltage. RoHS compliant with UL94V-0 insulation rating. 3.4 mm tail pin length for solder termination. Compact 2.0 mm pitch spacing for high-density PCBs. Shrouded connector protects contacts during assembly and operation.
