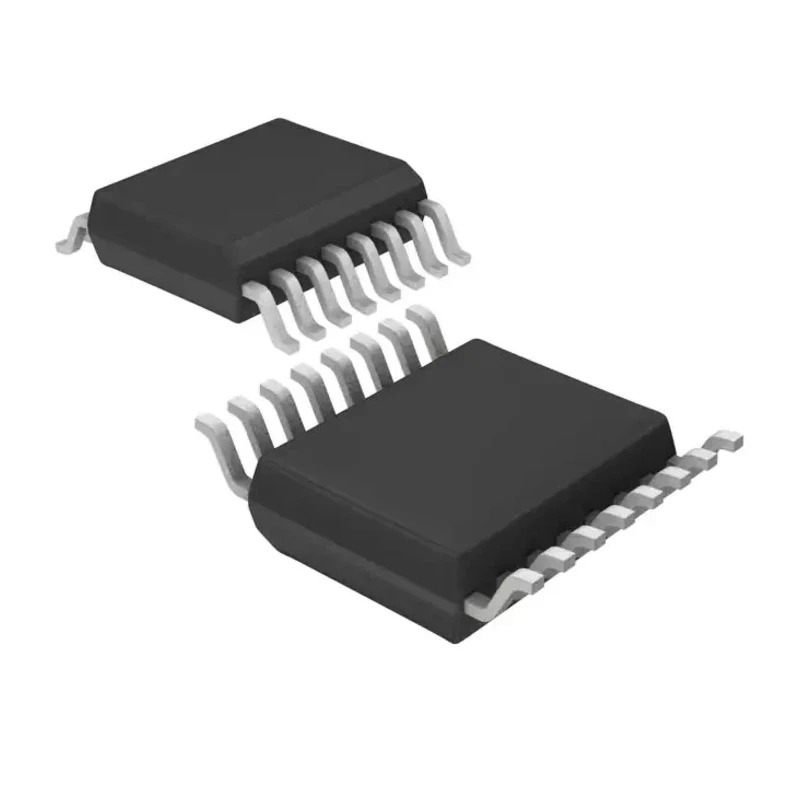

Renesas Electronics Multiplexer/Demultiplexer 4 LVTTL 16-Pin QSOP QS3257QG8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | QS3257QG8 |
| Mount Type | Surface |
| Output type | TTL |
| Series | IDTQS3257 |
| Maximum Operating Temperature | 85°C |
| Package Type | QSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LVTTL |
| Minimum Supply Voltage | 4.75V |
| Maximum On State Resistance | 7Ω |
Key Features
- The device supports 4 elements per chip with LVTTL logic family compatibility.
- It features a 7 Ohm maximum on-state resistance for minimal signal loss.
- Operates within a supply voltage range of 4.75V to 5.25V.
- Designed for surface mount applications with zero propagation delay and zero ground bounce characteristics.
- Operating temperature range extends from -40°C to 85°C for reliable industrial use.
- Provides undershoot clamp diodes on all switch and control inputs for signal integrity.
- Ideal for quick switching without added propagation delay, enhancing production efficiency.
- The device is function and pinout compatible with IDT QS3257 series for easy upgrade paths.
Product Description
Renesas Electronics QS3257QG8 is a high performance multiplexer/demultiplexer integrated circuit featuring 4 LVTTL compatible channels within a compact 16-pin QSOP surface mount package. Operating at a supply voltage between 4.75V and 5.25V, this device ensures minimal signal distortion with a maximum on-state resistance of 7 Ohms.
Its high-speed CMOS technology enables zero propagation delay and ground bounce, making it suitable for sensitive industrial electronic applications requiring fast signal routing and switching. The undershoot clamp diodes incorporated on all switch and control inputs protect against voltage spikes, enhancing device reliability.
Designed to operate robustly over a wide temperature range of -40°C to 85°C, the QS3257QG8 is ideal for use in various industrial environments including automation systems, electronic instrumentation, signal routing in manufacturing processes, and embedded control systems.
This device is compatible with the IDT QS3257 series, allowing for seamless integration and upgrade in existing systems. Its surface mount QSOP package facilitates space-efficient circuit designs and automated assembly.
The device supports 4 elements per chip with LVTTL logic family compatibility. Maximum on-state resistance is 7 Ohms, minimizing signal loss. Operates with supply voltage from 4.75V to 5.25V ensuring compatibility with standard 5V logic systems.
Features zero propagation delay and ground bounce for fast switching applications. Includes undershoot clamp diodes to improve signal integrity and protect inputs. Robust operating temperature range of -40°C to 85°C supports industrial environments.
Compact 16-pin QSOP surface mount package for space-saving PCB layouts. Pin and function compatible with IDT QS3257 for ease of replacement and design upgrades.
This multiplexer/demultiplexer IC is an excellent choice for industrial electronics, laboratory instruments, manufacturing automation, and embedded control systems requiring reliable high-speed channel switching with low noise and signal distortion.
Explore more semiconductor and logic IC solutions in the Multiplexer & Demultiplexer category at EnvMart for your electronic component needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.75V to 5.25V, ensuring compatibility with standard 5V logic systems.
The maximum on-state resistance is 7 Ohms, which helps minimize signal loss during operation.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This model supports 4 elements per chip, allowing for efficient signal routing and switching.
It is packaged in a compact 16-pin QSOP format, designed for surface mount applications.
Yes, it is function and pin compatible with the IDT QS3257 series, facilitating easy upgrades.
The QS3257QG8 is compatible with the LVTTL logic family, ensuring proper operation in relevant applications.
It includes undershoot clamp diodes on all switch and control inputs, which protect against voltage spikes and enhance signal integrity.
This model is designed for surface mount applications, allowing for space-efficient PCB layouts.
The output type of this multiplexer/demultiplexer is TTL, suitable for various electronic applications.
It is ideal for use in industrial electronics, laboratory instruments, manufacturing automation, and embedded control systems.
The country of origin for this device is India.
