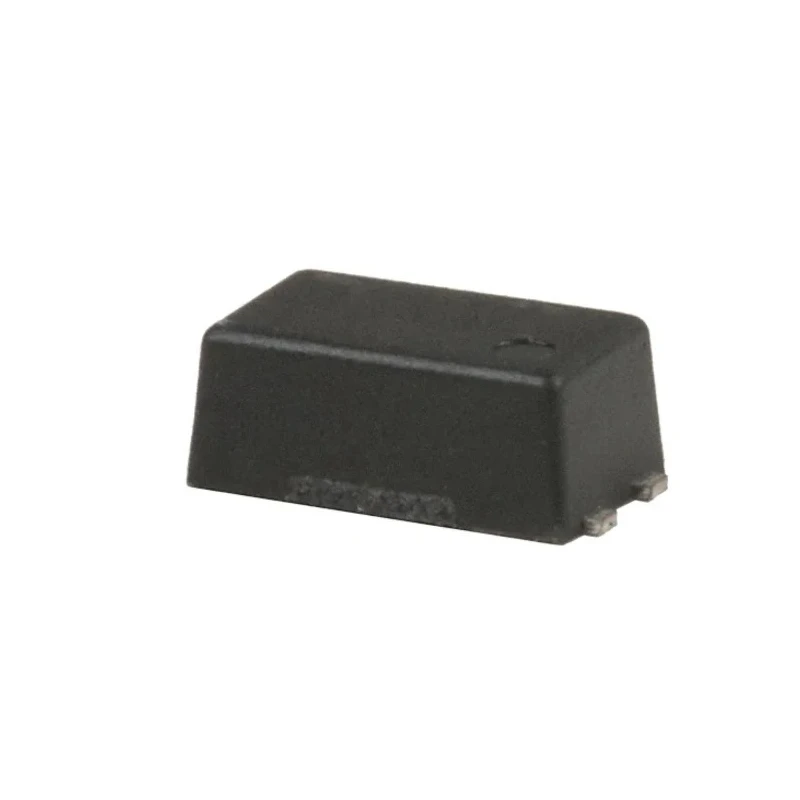

Renesas Electronics DC Input Photocoupler, 4-Pin Mini-Flat, Phototransistor Output, 1.3V Max Forward Voltage PS2913-1-V-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2913-1-V-F3-AX |
| Packaging | 500 pcs/Reel |
| Output type | Phototransistor |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | 55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 10μs |
| Maximum Current Transfer Ratio | 200% |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features a GaAs light emitting diode and NPN silicon phototransistor in a single package.
- Maximum forward voltage of 1.3 V ensures efficient operation.
- Designed for DC input with a maximum input current of 50 mA.
- Typical rise and fall times are 10 microseconds each for fast switching.
- Isolation voltage rated at 2500 Vrms for superior electrical isolation.
- Operating temperature range from -55°C to 100°C for reliable performance.
- Complies with BS EN 62368-1, DIN EN 60747-5-5, and UL1577 standards.
- Packaged in reels of 500 pieces for production efficiency.
Product Description
Renesas Electronics PS2913-1-V-F3-AX is a compact DC input photocoupler featuring a phototransistor output housed in a 4-pin mini-flat package. The device integrates a GaAs LED and an NPN silicon phototransistor, delivering high-density mounting benefits with approximately 30% reduction in mounting area compared to conventional designs.
Designed to provide high electrical isolation, it offers an isolation voltage rating of 2500 Vrms, making it suitable for various industrial and electronic applications where signal isolation is critical. The photocoupler supports a maximum forward voltage of 1.3 V and a maximum input current of 50 mA at DC input, ensuring efficient and reliable operation.
The device maintains high-speed switching characteristics with typical rise and fall times of 10 microseconds. It operates reliably across a wide temperature range from -55°C to 100°C, meeting rigorous standards such as BS EN 62368-1, DIN EN 60747-5-5, and UL1577, ensuring safety and compliance in professional use.
This model is supplied in reels of 500 pieces, facilitating streamlined automated production processes. It is ideal for signal isolation in industrial control, telecommunications, power supply and electronic equipment requiring high-density PCB mounting and robust performance under varying environmental conditions.
Includes a GaAs LED and NPN phototransistor combination in a mini-flat package. Offers high isolation voltage of 2500 Vrms for electrical safety. Maximum forward voltage of 1.3 V with 50 mA max input current. Fast switching with 10 μs typical rise and fall times.
Operates within -55 to 100°C temperature range for diverse environments. RoHS compliant and meets international safety standards. Packaging of 500 pieces per reel supports production efficiency. Suitable for electronics, industrial automation, and power control applications.
Explore our complete range of Electronic Components and optocouplers to find the best solution for your industrial and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.3 V, ensuring efficient operation.
It has an isolation voltage rating of 2500 Vrms, providing superior electrical isolation.
This unit operates reliably within a temperature range of -55°C to 100°C.
It features a phototransistor output, which is integrated with a GaAs LED in a single package.
The maximum input current is 50 mA at DC input, ensuring reliable operation.
The typical rise and fall times are both 10 microseconds, allowing for fast switching.
This model is packaged in reels of 500 pieces, facilitating efficient production processes.
It complies with BS EN 62368-1, DIN EN 60747-5-5, and UL1577 standards for safety and reliability.
This photocoupler has 4 pins, designed for compact installations.
It is suitable for signal isolation in industrial control, telecommunications, and power supply applications.
The maximum current transfer ratio is 200%, providing efficient signal transmission.
