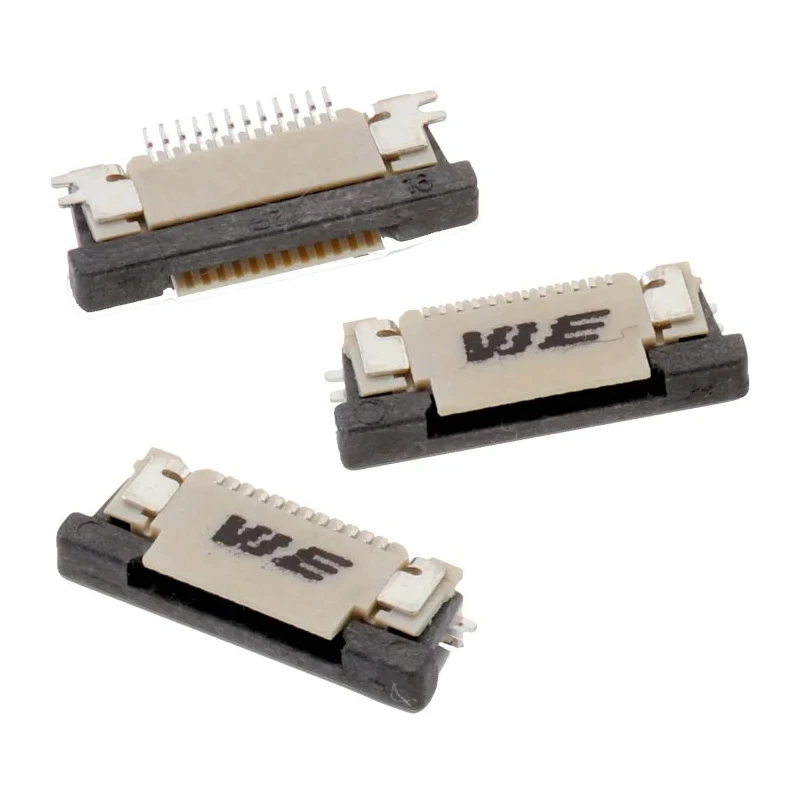

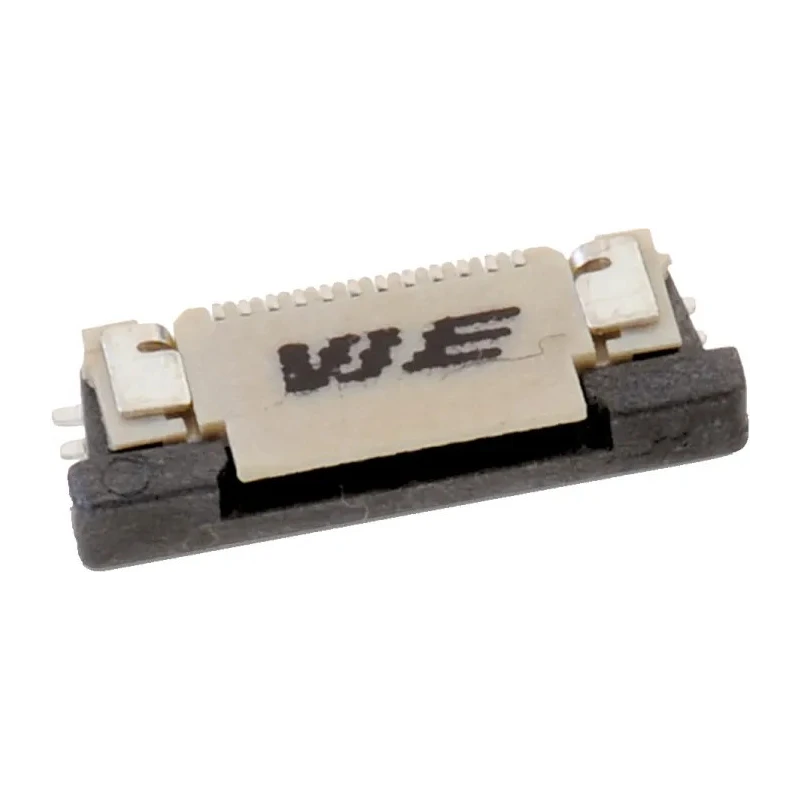

Wurth Elektronik WR-FPC 0.5 mm Pitch 26 Way Horizontal Female FPC Connector ZIF Top Contact 68712614022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Top Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- The connector features a Zero Insertion Force (ZIF) locking mechanism for secure and easy cable connections.
- Constructed with phosphor bronze contacts plated with tin over nickel to ensure reliable electrical performance.
- The housing is made from durable Liquid Crystal Polymer (LCP) material supporting operations from -25°C to 85°C.
- Designed for 50V applications with top contact position and horizontal orientation for PCB surface mounting.
- Comes with solder tabs made of brass facilitating robust mechanical stability.
- Suitable for industrial electronics requiring compact, reliable flexible printed circuit connections.
Product Description
Wurth Elektronik model 68712614022 is a 26-way female FPC connector featuring 0.5 mm pitch, specifically designed for horizontal surface mount applications. This connector employs a Zero Insertion Force (ZIF) top contact termination, reducing insertion force and improving connection reliability. It is built with phosphor bronze contacts plated with tin over nickel, combining excellent conductivity and corrosion resistance.
The connector housing is made from high-performance Liquid Crystal Polymer (LCP), providing thermal stability and mechanical strength. It operates reliably under a temperature range from -25°C to 85°C, making it suitable for various industrial environments. The solder tabs, constructed from brass, ensure a robust mechanical and electrical bond during assembly.
With a rated voltage of 50V, this connector is ideal for use in electronics requiring compact, durable, and stable flexible printed circuit connections. Its horizontal orientation and surface mount design simplify installation on printed circuit boards in electronic components and assemblies.
Applications include industrial electronics manufacturing, automotive electronics, computing devices, communication equipment, and other fields requiring reliable flexible printed circuit connectors.
The connector features a Zero Insertion Force locking mechanism for ease of cable assembly. Phosphor bronze contacts ensure durability and effective electrical conductivity. The tin over nickel plating enhances corrosion resistance and contact reliability.
Liquid Crystal Polymer housing provides excellent thermal and mechanical properties. Brass solder tabs facilitate strong mechanical attachment and electrical conduction. Suitable for operation within a temperature range of -25°C to 85°C and voltage up to 50V.
This Wurth Elektronik FPC Connector is a premium solution for precision electronics requiring secure and compact connections. Browse more quality electronic components and connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 0.5 mm.
This connector has 26 contacts.
The maximum operating temperature for this model is 85°C.
It employs a Zero Insertion Force (ZIF) top contact termination.
The housing is made from Liquid Crystal Polymer (LCP), and the contacts are phosphor bronze plated with tin over nickel.
The rated voltage for this connector is 50V.
This connector is designed for horizontal orientation.
It is designed for surface mounting on printed circuit boards.
The minimum operating temperature is -25°C.
The solder tabs are made of brass, ensuring strong mechanical and electrical connections.
It is suitable for industrial electronics, automotive electronics, computing devices, and communication equipment.
The contacts in this connector are female.
