Samtec MPS-C Series Vertical Through Hole PCB Socket, 20-Contact, 4 Row, 5 mm Pitch Solder MPSC-02-16-02-7.70-03-L-V

Free Delivery in India | Lowest Global Shipping Charges

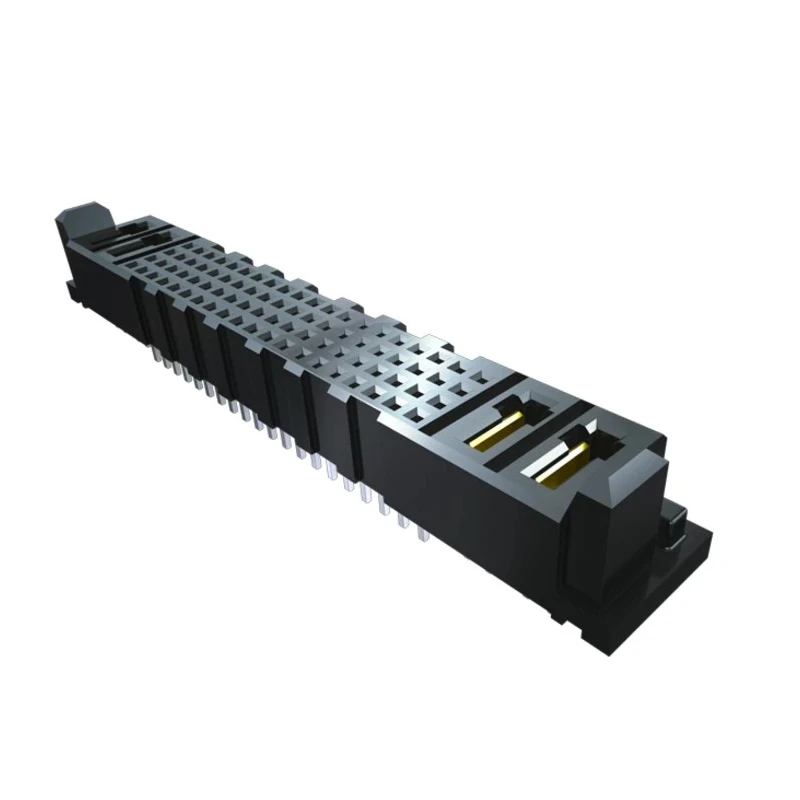

Samtec MPS-C Series Vertical Through Hole PCB Socket, 20-Contact, 4 Row, 5 mm Pitch Solder MPSC-02-16-02-7.70-03-L-V

Name: Samtec MPS-C Series Vertical Through Hole PCB Socket, 20-Contact, 4 Row, 5 mm Pitch Solder MPSC-02-16-02-7.70-03-L-V
Brand: Samtec
SKU: 172487
Price: 9.04 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	354V
Brand	Samtec
Orientation	Vertical
Current	30A
Model	MPSC-02-16-02-7.70-03-L-V
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	MPS-C
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket
Minimum Operating Temperature	-55°C
Number of Rows	4
Pitch	5mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	14mm
Row Pitch	2.54mm

Key Features

20 contact points ensure reliable signal and power transmission.
Four rows with a 5 mm pitch solder termination for robust assembly.
Made with liquid crystal polymer housing for durability and stability.
Supports a current rating of 30A and voltage rating of 354V.
Gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance.
Through hole mount type with vertical orientation for PCB integration.
Stacking height of 14mm to support multi-board configurations.
Operating temperature range from -55°C to 105°C for harsh environments.

Product Description

Samtec MPSC-02-16-02-7.70-03-L-V is a vertical through hole PCB socket designed for high reliability in electronic components applications. Featuring 20 female contacts arranged in 4 rows with a 5 mm pitch, this socket supports a robust current of 30A and voltage up to 354V, suitable for demanding industrial and electronic systems.

The housing is constructed from liquid crystal polymer material, providing excellent mechanical strength and thermal stability. The contacts are made from phosphor bronze with gold plating to ensure high conductivity and corrosion resistance over extended operational life.

With a stacking height of 14 mm and board-to-board connector system, this socket supports vertical orientation, making it ideal for compact PCB designs in industrial, laboratory, manufacturing, and electronic assembly environments. The termination type is solder, using through hole mount style for easy integration and secure connection.

This component conforms to RoHS standards and is lead-free solderable, supporting environmentally friendly manufacturing processes. It operates reliably within a temperature range of -55°C to 105°C, suitable for outdoor and industrial applications exposed to temperature extremes.

20 contact points ensure reliable signal and power transmission. Four rows with a 5 mm pitch solder termination for robust assembly. Made with liquid crystal polymer housing for durability and stability. Supports a current rating of 30A and voltage rating of 354V.

Gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance. Through hole mount type with vertical orientation for PCB integration. Stacking height of 14mm to support multi-board configurations.

Operating temperature range from -55°C to 105°C for harsh environments. RoHS compliant and lead-free solderable for environmental safety.

This PCB socket is widely used in electronics manufacturing, power and connector applications, and various industrial sectors needing dependable board-to-board interconnections. Its durable design and certifications make it suitable for commercial, manufacturing, and laboratory use.

Explore more high-quality PCB Sockets and connectors from Samtec available through EnvMart's comprehensive catalog.
