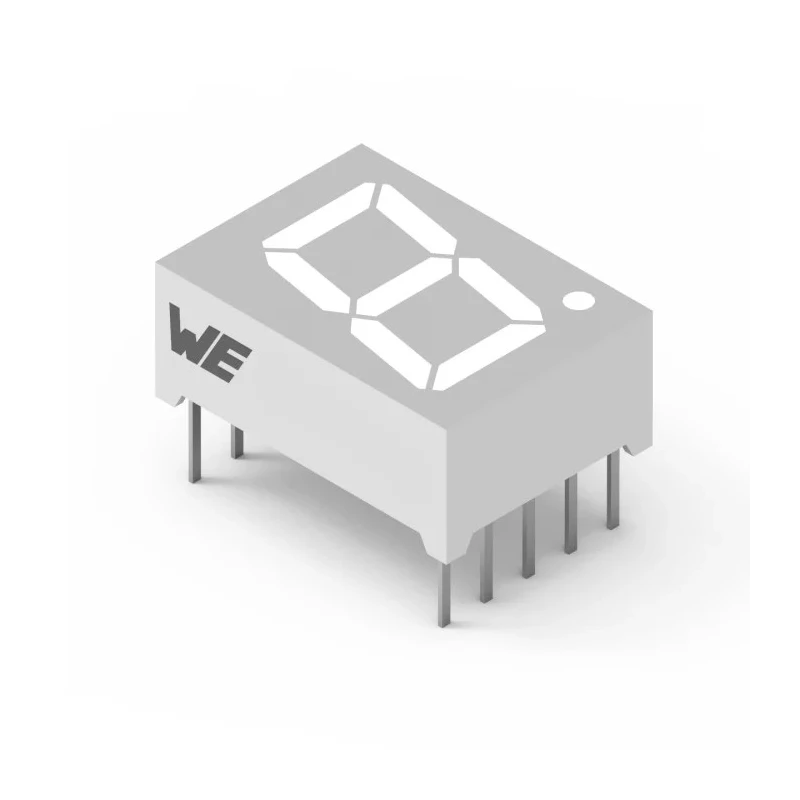

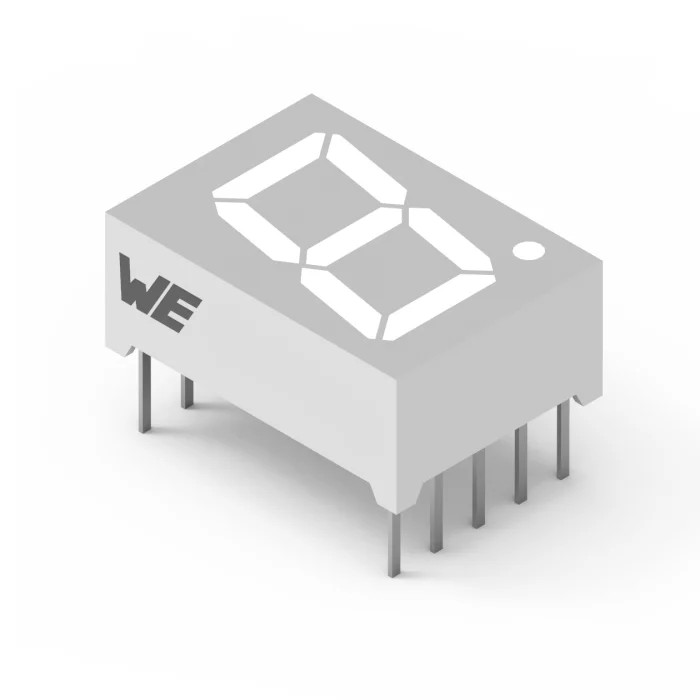

Wurth Elektronik 1 7 Segment LED Display Common Cathode Super Red 38mcd Right Side 9.9 mm 157119S12701

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1 7 Segment LED Display Common Cathode Super Red 38mcd Right Side 9.9 mm 157119S12701

Name: Wurth Elektronik 1 7 Segment LED Display Common Cathode Super Red 38mcd Right Side 9.9 mm 157119S12701
Brand: Wurth Elektronik
SKU: 172331
Price: 1.17 USD
Availability: InStock



Category LED Display Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Wurth Elektronik
Model	157119S12701
Series	WL-T7DS
Character height	9.9mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
Power Dissipation	52mW
Luminous Intensity	38mcd
Standards/Approvals	EN, REACH, IEC, RoHS
LED Colour	Super Red
Dominant Wavelength	635nm
Colour of Face	Grey
Forward Current	100mA
Number of Characters	1
Common Connection	Cathode
Decimal Orientation	Right Side

Key Features

Utilizes a common cathode configuration for compatibility with standard circuits.
Features super red LED colour with a dominant wavelength of 635 nm for high visibility.
Character height is 9.9 mm with right side decimal orientation for clear digital readout.
Low power dissipation of 52 mW ensures efficient operation.
Operates within a temperature range of -40°C to 85°C for industrial robustness.
Grey face with milky/diffused segments enhances display readability.
Designed to handle forward current up to 100 mA for high peak current applications.
Compact dimensions of 13 x 10 x 7 mm enable installation in tight spaces.

Product Description

Wurth Elektronik 157119S12701 is a 1 7 Segment LED Display with a common cathode configuration. It emits a super red light with luminous intensity of 38mcd, and a character height of 9.9 mm designed for clear digital readouts. This display features a grey faceplate with milky/diffused segments that improve legibility even in various lighting conditions.

The device operates with low power dissipation of 52 mW and supports a forward current up to 100 mA, making it suitable for applications requiring high peak currents. Its temperature range from -40°C to 85°C allows reliable performance in demanding industrial and electronic environments.

Measuring compactly at 13 mm by 10 mm by 7 mm, this LED display module fits seamlessly into audio and measurement equipment, instrument panels, digital readout displays, and control units. The right side decimal orientation makes it ideal for numerical displays where decimal points are required.

Being RoHS and REACH compliant, the 157119S12701 meets rigorous environmental and safety standards. It is ideal for industrial automation, electronic instrumentation, manufacturing equipment, HVAC control panels, and laboratory devices.

Utilizes common cathode circuitry compatible with standard electronic drivers. Emits high-visibility super red light at 635 nm wavelength. Designed for clear numeric displays with 9.9 mm character height. Supports operation in extreme temperatures from -40°C to 85°C.

Low power consumption with power dissipation rated at 52 mW. Compact form factor of 13 x 10 x 7 mm for versatile mounting. Right side decimal point orientation for accurate numeric indication. Meets international standards including EN, IEC, RoHS, and REACH.

This LED display is a reliable component for electronic designers and engineers focusing on display modules in industrial, laboratory, electronic instrumentation, and commercial product development applications.
