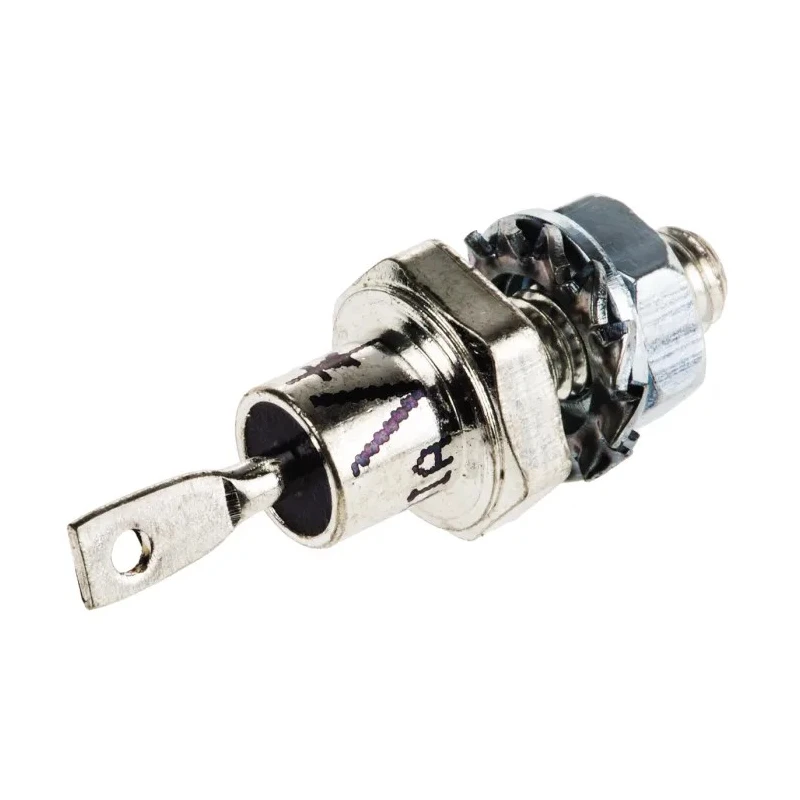

Vishay Switching Diode VS-16FR80 800 V 16 A 2-Pin DO-203AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-16FR80 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-16F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 370A |
| Maximum Forward Voltage Vf | 1.23V |
| Vishay 600 V 16 A Diode Fast Recovery 2-Pin DO-203AABrand | Vishay |
| Vishay 800V 16A, Silicon Junction Diode, 2-Pin DO-203AA VS-16FR80Brand | Vishay |
Key Features
- Standard recovery switching diode designed for industrial and electronic semiconductor applications.
- Maximum forward voltage of 1.23 V enables efficient switching performance.
- Supports peak non-repetitive forward surge current of 370 A for transient conditions.
- Operates within a temperature range from -65°C to 175°C for reliable use in harsh environments.
- Compact DO-203AA screw mount package with dimensions 31.8 mm height, 12.69 mm length, and 11 mm width.
- Stud anode diode configuration with 2 pins ensures easy mounting and integration.
- No automotive or additional approvals but meets standard industry package requirements.
- Equipped to handle peak reverse current of 12 mA for stable operation.
Product Description
Vishay VS-16FR80 Switching Diode is a high-performance standard recovery power diode designed for switching and rectifier applications in industrial, electronic, and power management systems.
This 2-pin DO-203AA package diode is rated at a maximum continuous forward current of 16 A and peak reverse repetitive voltage of 800 V, making it suitable for high voltage switching environments. Its maximum forward voltage is 1.23 V, ensuring energy efficiency during conduction.
The device supports peak non-repetitive forward surge currents up to 370 A, providing robustness against transient load spikes. It operates reliably across a wide temperature range from -65°C to 175°C, suitable for harsh industrial conditions.
The rectangular DO-203AA package is engineered for screw mounting with dimensions of 31.8 mm height, 12.69 mm length, and 11 mm width. Its stud anode configuration with 2 pins facilitates easy installation and stable electrical connection.
Although it lacks specific automotive certifications, it is widely used in power switching and discrete semiconductor applications such as power supplies, inverters, and electronic converters.
Standard recovery switching diode ensures efficient power management. High voltage and current ratings enable use in demanding circuits. Compact, durable DO-203AA package designed for screw mount applications. Wide operating temperature guarantees stability in diverse environments.
Peak surge current handling protects against occasional overloads. Stud anode design enhances assembly reliability and mechanical strength. Compatible with a variety of industrial and electronic semiconductor systems.
This Vishay diode is ideal for laboratory, industrial electronics manufacturing, power electronics, and HVAC equipment where reliable Switching Diodes are required. Explore more Vishay semiconductor components on EnvMart for your specialized application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-16FR80 diode is 16 A.
This diode has a peak reverse repetitive voltage rating of 800 V.
The maximum forward voltage of the Vishay VS-16FR80 is 1.23 V.
The VS-16FR80 operates reliably within a temperature range from -65°C to 175°C.
The diode features a stud anode configuration with 2 pins.
The dimensions of the DO-203AA package are 31.8 mm in height, 12.69 mm in length, and 11 mm in width.
The VS-16FR80 supports a peak non-repetitive forward surge current of 370 A.
This model can handle a peak reverse current of 12 mA for stable operation.
The mounting type for the VS-16FR80 is screw mount.
This diode is commonly used in power supplies, inverters, and electronic converters.
The country of origin for the Vishay VS-16FR80 is India.
The VS-16FR80 is classified as a standard recovery switching diode.
