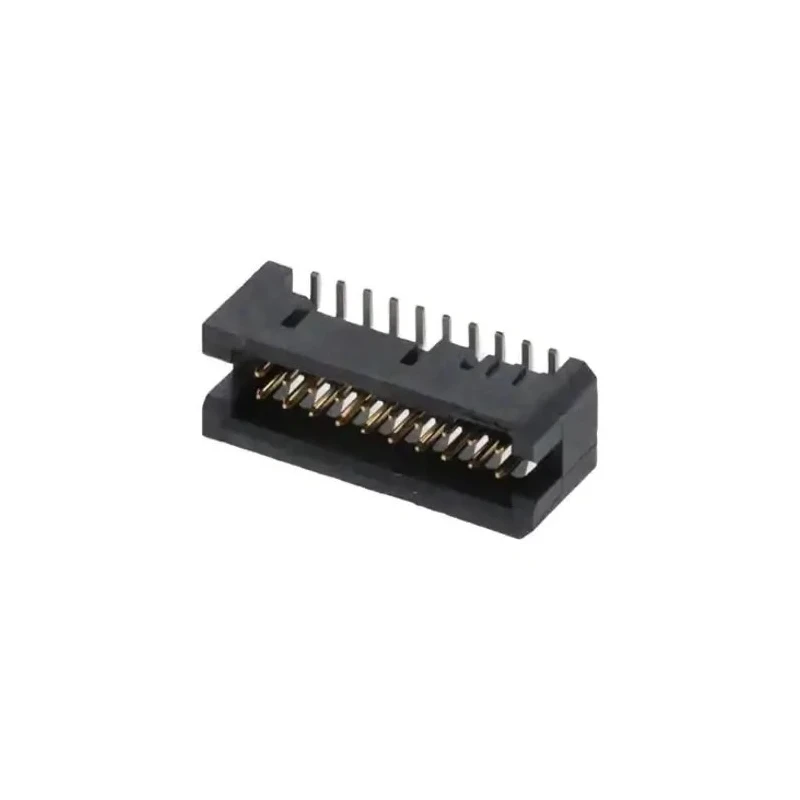

Samtec TFML Series Vertical Through Hole PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFML-110-02-S-D-P-TR

Samtec TFML-110-02-S-D-P-TR is a high-quality vertical through hole PCB header designed for reliable electronic component connections. This PCB header features 20 contacts arranged in 2 rows with a 1.27 mm pitch, making it suitable for compact and dense PCB assembly requirements.

The header housing is made of liquid crystal polymer, providing excellent durability and mechanical strength. Contacts are fabricated from phosphor bronze and plated with 0.000762 mm selective gold in the contact area and matte tin on the tail, ensuring excellent electrical conductivity and corrosion resistance.

Its shrouded design adds an extra layer of protection to the connectors and helps prevent damage during handling and installation. The orientation is vertical, providing a space-efficient solution for board-to-board connections. The header supports a maximum current of 3.2A and voltage up to 250V, accommodating a wide range of electronic applications.

Rated for continuous operation in temperatures ranging from -55°C to 125°C, this header is well suited to industrial, commercial, and manufacturing environments requiring robust, reliable PCB interconnections. The solder termination type ensures secure mounting on through hole PCB boards.

Tape and reel packaging supports automated placement machinery, enhancing manufacturing efficiency. The dual row configuration with 10 positions per row increases contact density, ideal for compact electronic designs.

The header is shrouded for enhanced protection and durability. High-quality phosphor bronze contacts with gold plating ensure excellent conductivity. Designed for vertical orientation and through hole mounting. Supports operating temperatures from -55°C to 125°C.

Rated for 3.2A current and 250V voltage capacity. Dual row with 20 total contacts for increased connection density. Constructed with durable liquid crystal polymer housing. Solder termination suitable for secure PCB assembly.

Tape and reel packaging enables automated processing.

This Samtec TFML series PCB Header is ideal for industrial electronics, telecommunications, computing hardware, instrumentation, and other applications demanding precise, reliable board-to-board connections.
