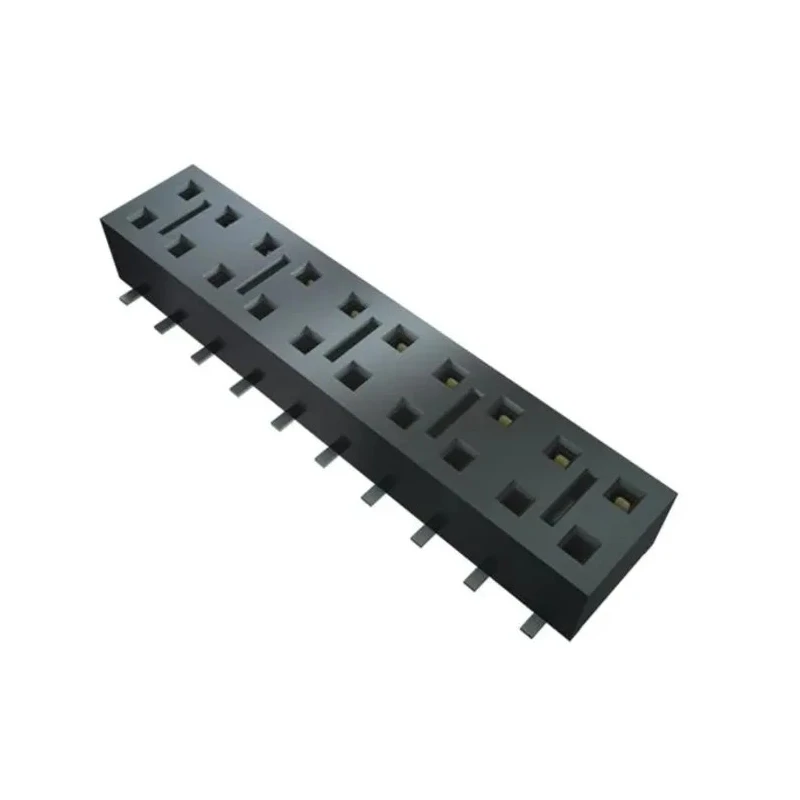

Samtec HLE Series Straight Surface PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 4.1A Current HLE-120-02-G-DV-BE-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec HLE Series Straight Surface PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 4.1A Current HLE-120-02-G-DV-BE-A-K-TR

Name: Samtec HLE Series Straight Surface PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 4.1A Current HLE-120-02-G-DV-BE-A-K-TR
Brand: Samtec
SKU: 172149
Price: 11.57 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	Samtec
Orientation	Straight
Current	4.1A
Model	HLE-120-02-G-DV-BE-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Cost-Effective Single Beam Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Connector System	Board-to-Board

Key Features

Constructed with liquid crystal polymer housing for durability.
Supports a continuous current of 4.1A and voltage rating of 400V.
Contact material is beryllium copper alloy with gold plating ensuring reliable conductivity.
Operates within a temperature range of -55°C to 125°C.
Designed as a cost-effective single beam socket strip with solder termination.
Features dual vertical rows with bottom entry orientation ensuring stable connectivity.
Packaged in tape and reel for easy automated assembly.
Includes an alignment pin and polyimide film pick & place pad for precision mounting.

Product Description

Samtec HLE-120-02-G-DV-BE-A-K-TR is a straight surface PCB socket from the HLE series, designed for reliable board-to-board connections in electronic components assemblies. This socket offers 40 contacts arranged in 2 rows with a 2.54 mm pitch, suitable for high-density applications requiring consistent electrical performance and mechanical stability.

Its housing is made from durable liquid crystal polymer, supporting operation across harsh temperature environments from -55°C up to 125°C. The socket supports a current rating of 4.1 amperes and a voltage rating of 400 volts, making it suitable for demanding electronic power applications.

The design includes dual vertical rows with bottom entry orientation, aligned by a precision alignment pin and equipped with a polyimide film pick & place pad for easy and accurate placement during automated PCB assembly processes. Termination is via solder, and the product comes packaged in tape and reel format, ideal for high-volume manufacturing environments.

This HLE series PCB socket is a cost-effective solution with a single beam socket strip subtype, offering robust electrical connections for a wide range of industrial, electronic manufacturing, and communication equipment. It has no specific certifications listed but complies with standard usage requirements.

Durable liquid crystal polymer housing material. Gold-plated beryllium copper contact material for reliable connections. Operates in a broad temperature range from -55°C to 125°C. Supports up to 4.1A current and 400V voltage.

Dual row, 40-contact design with 2.54mm pitch. Tape and reel packaging for efficient automated assembly. Includes alignment pin and polyimide film pick & place pad.

Ideal for electronics manufacturing, industrial control systems, telecommunications, and electronic module prototyping. This PCB socket ensures consistent performance in board-to-board electrical connections for high-reliability applications.

Explore a vast selection of high-quality PCB Sockets and board connectors in the Electronics & Electricals category at EnvMart.
