Samtec Vertical Surface Micro Socket Strip 16-Contact 2 Row 1 mm Pitch Through Hole CLM-108-02-F-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Surface Micro Socket Strip 16-Contact 2 Row 1 mm Pitch Through Hole CLM-108-02-F-D-K-TR

Name: Samtec Vertical Surface Micro Socket Strip 16-Contact 2 Row 1 mm Pitch Through Hole CLM-108-02-F-D-K-TR
Brand: Samtec
SKU: 172116
Price: 3.78 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	270V
Brand	Samtec
Orientation	Vertical
Current	3.1A
Model	CLM-108-02-F-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	CLM
Termination Type	Through Hole
Maximum Operating Temperature	125°C
Sub Type	Micro Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	16
Connector System	Board-to-Board

Key Features

Features a robust vertical orientation enabling compact PCB design integration.
Supports a maximum current rating of 3.1 amperes for reliable electrical performance.
Constructed with phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance.
Housing is made of liquid crystal polymer ensuring high temperature tolerance and mechanical stability.
Operates efficiently across a wide temperature range from -55°C to 125°C.
Designed for board-to-board connector applications with low profile double row Tiger Claw™ contacts.
Packaged on tape and reel to facilitate automated assembly processes.
Maintains a rated voltage of 270 volts suitable for diverse electronic applications.

Product Description

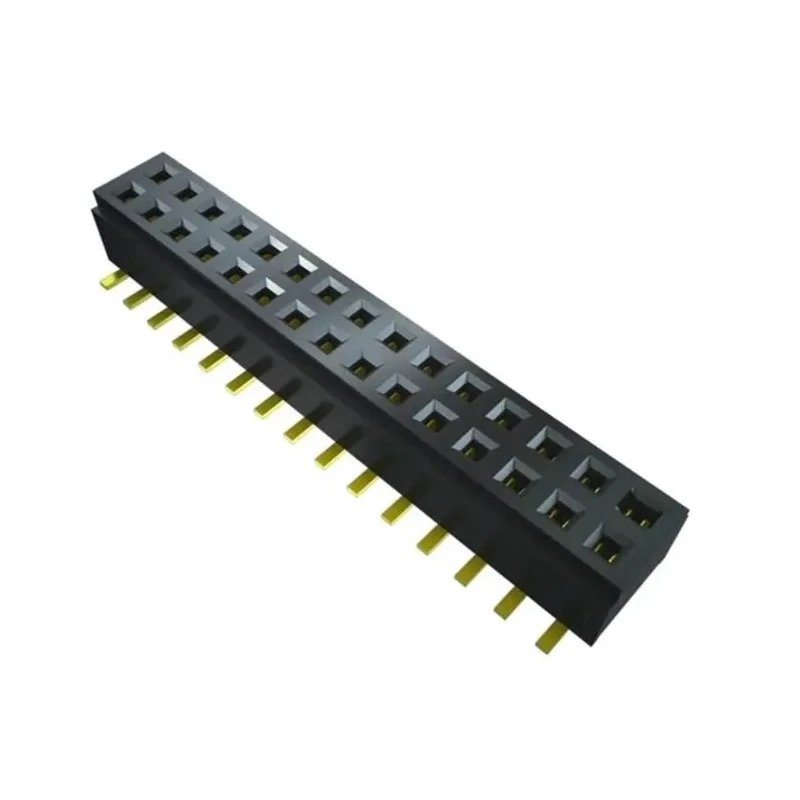

Samtec CLM-108-02-F-D-K-TR is a vertical surface mount micro socket strip featuring 16 contacts configured in 2 rows with a 1 mm pitch. Designed for through-hole termination, it provides a reliable board-to-board connection system suitable for industrial and electronic component applications.

The socket strip is constructed using liquid crystal polymer housing and phosphor bronze contact material plated with gold, ensuring durability and superior electrical conductivity. The double row configuration utilizes the Tiger Claw™ contact technology, providing a low-profile and robust connection with dual wipe for optimized contact reliability.

The product supports a current rating of 3.1 amperes and a voltage rating of 270 volts. Operating temperatures range from -55°C to 125°C, making it suitable for harsh environmental conditions in industrial, telecommunications, and electronics manufacturing scenarios.

This micro socket strip is supplied on tape and reel packaging to streamline pick-and-place assembly in high volume production environments. Its vertical orientation optimizes PCB footprint and interconnect density.

Robust vertical orientation and compact design. Gold-plated phosphor bronze contacts ensure high conductivity. High temperature liquid crystal polymer housing for stability. Rated up to 3.1 A current and 270 V voltage. Temperature operation from -55°C to 125°C.

Double row 1 mm pitch with Tiger Claw™ dual wipe contacts. Tape and reel packaging for automated PCB assembly.

This socket strip is ideal for use in industrial automation, telecommunications, electronic equipment manufacturing, and laboratory device assembly. Its reliable connectivity and rugged materials provide long-term performance in demanding applications.
