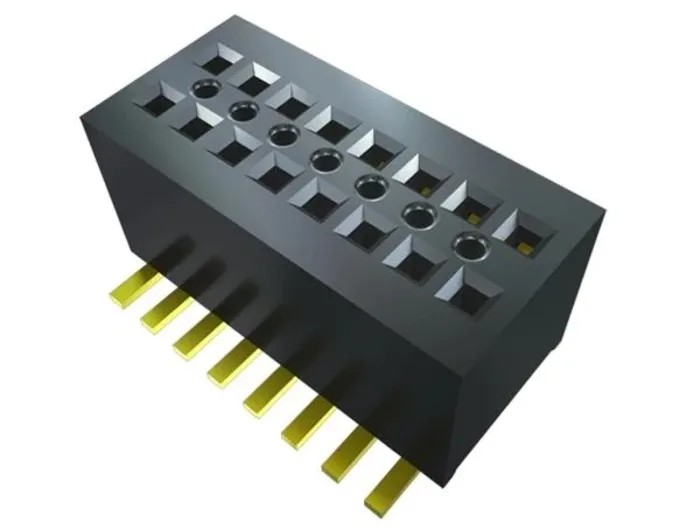

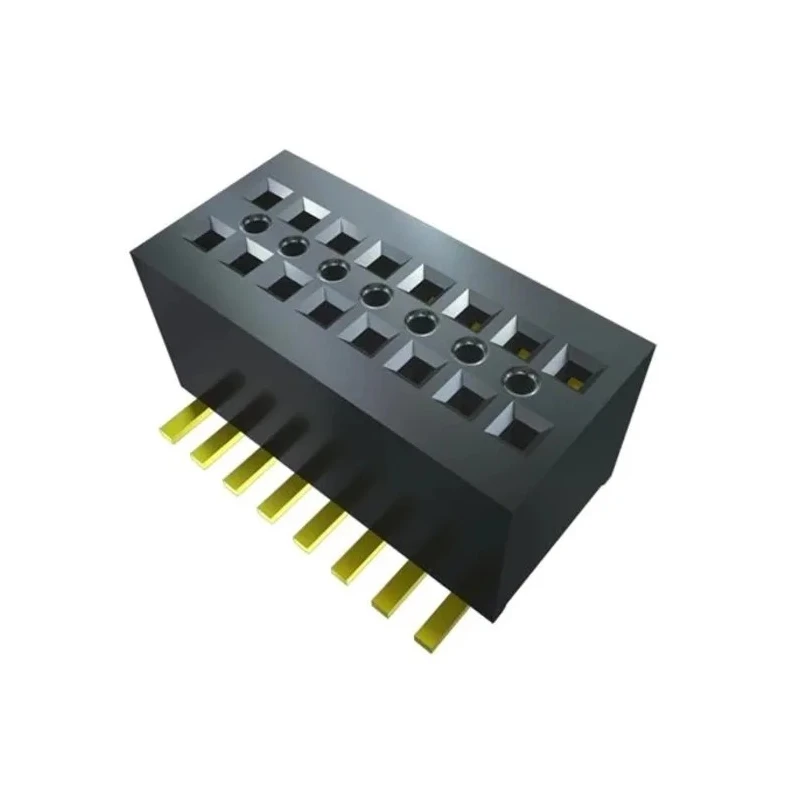

Samtec CLE Series Horizontal Surface Socket Strip, 10-Contact, 2 Row, 0.8 mm Pitch Through Hole CLE-110-01-G-DV-A-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 2.7A |
| Model | CLE-110-01-G-DV-A-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | CLE |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Single Beam Socket Trip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Row Pitch | 1.2mm |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Beryllium copper alloy contacts plated in gold for excellent conductivity.
- Designed for horizontal board-to-board connection with 1.2 mm row pitch.
- Operates reliably between -55°C and 125°C temperature range.
- Supports a current rating of 2.7 A ensuring efficient power transmission.
- Termination type is through-hole for secure mounting.
- Packaged with tape and reel for automated placement.
- Complies with RoHS standards ensuring hazardous substance restriction.
Product Description
The Samtec CLE-110-01-G-DV-A-P-TR is a high-quality horizontal surface socket strip designed for PCB applications requiring reliable board-to-board connections. Featuring 10 contacts arranged in 2 vertical rows with a precise 0.8 mm pitch, this socket strip offers excellent electrical and mechanical performance for advanced electronic assemblies.
The housing is made of liquid crystal polymer, known for its strength and stability under various environmental conditions. The contact material consists of beryllium copper alloy with full gold plating, providing superior conductivity and corrosion resistance. This combination ensures low contact resistance and long-term reliability.
This connector operates effectively within a temperature range from -55°C to 125°C, making it suitable for demanding industrial and commercial electronics environments. Its 2.7 A current rating supports moderate power needs without compromising signal integrity. The through-hole termination and horizontal orientation facilitate easy surface mounting and robust mechanical connection.
Additional features include alignment pins and a metal pick-and-place pad for precise automated PCB assembly. The product comes supplied on a tape and reel packaging system to enable efficient handling and mounting in mass production scenarios. The Samtec CLE series socket strips are widely used in industrial, telecommunications, computing, and other electronic manufacturing applications that demand compact, surface-mounted connector solutions.
Constructed with liquid crystal polymer housing for durability. Beryllium copper alloy contacts plated in gold for excellent conductivity. Designed for horizontal board-to-board connection with 1.2 mm row pitch. Operates reliably between -55°C and 125°C temperature range.
Supports a current rating of 2.7 A ensuring efficient power transmission. Termination type is through-hole for secure mounting. Packaged with tape and reel for automated placement. Complies with RoHS standards ensuring hazardous substance restriction.
This socket strip is ideal for use in industrial electronics, telecommunications, computing, and manufacturing environments requiring durable and reliable PCB connectors. Browse the Samtec brand and related PCB Sockets at EnvMart for advanced connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this socket strip is 125°C.
This model supports a current rating of 2.7 A, ensuring efficient power transmission.
The housing is made of liquid crystal polymer, while the contacts are constructed from beryllium copper alloy with gold plating for excellent conductivity.
The socket strip features 10 contacts arranged in 2 vertical rows.
The pitch of this socket strip is 0.8 mm, with a row pitch of 1.2 mm.
This model utilizes a through-hole termination type for secure mounting.
The orientation of this socket strip is horizontal, designed for board-to-board connections.
Yes, it complies with RoHS standards, ensuring hazardous substance restriction.
The minimum operating temperature for this socket strip is -55°C.
It is packaged with tape and reel to facilitate automated placement during PCB assembly.
This socket strip is suitable for industrial electronics, telecommunications, computing, and manufacturing environments requiring durable PCB connectors.
The country of origin for this socket strip is India.
