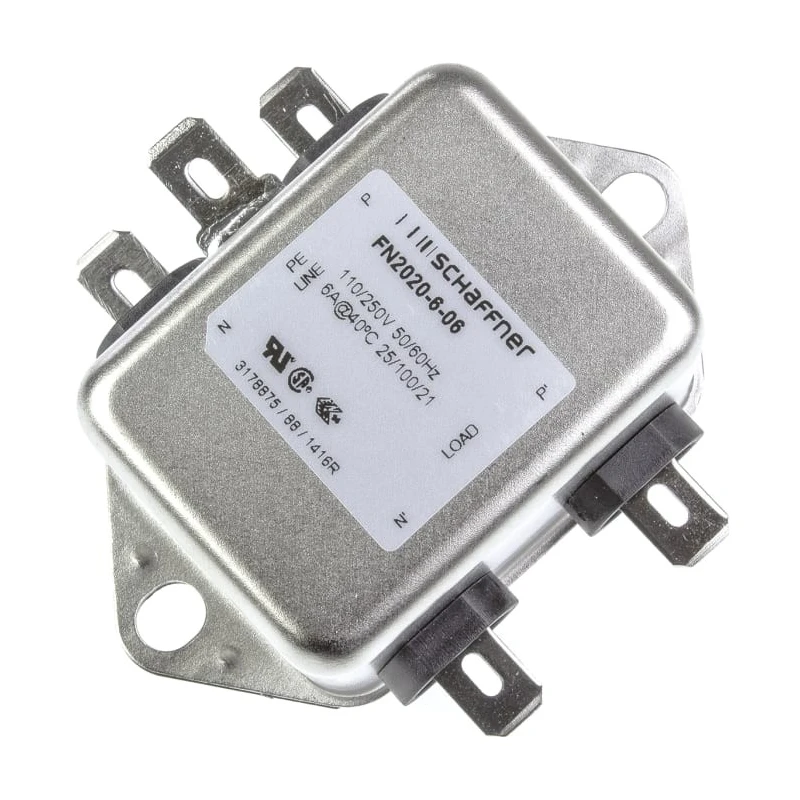

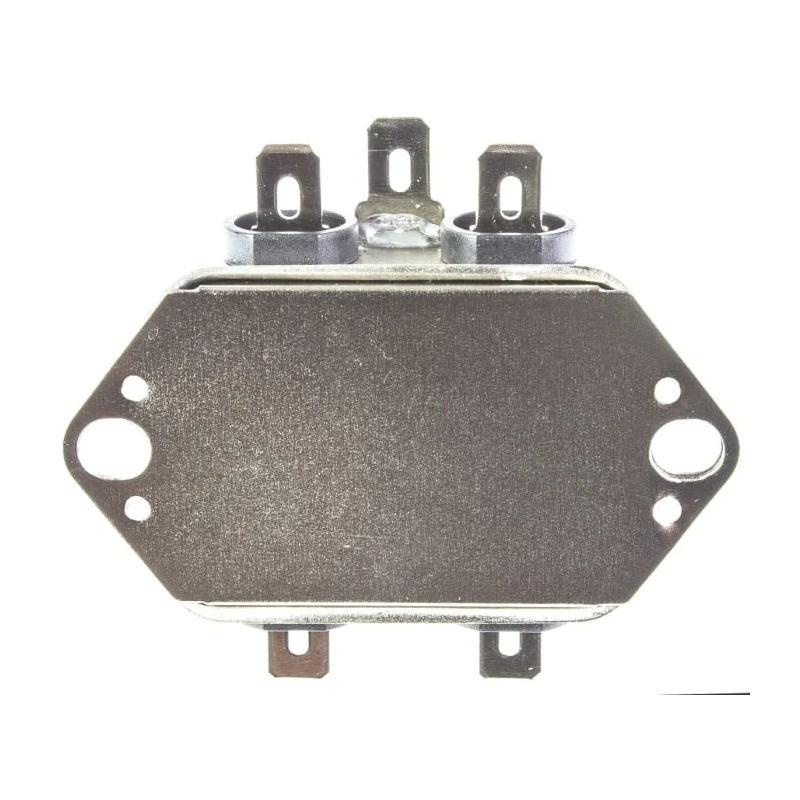

Schaffner EMI Filter 6A 250V AC/DC 400Hz Chassis Mount Fast-On Termination FN2020

Schaffner FN2020 EMI Filter FN2020 series offers robust performance in electromagnetic interference suppression for AC/DC power lines. It supports 6 A maximum current and 250 V AC/DC maximum voltage at an operating frequency of 400Hz, suitable for use in demanding industrial and electronic environments.

The filter is designed for easy chassis mounting and uses fast-on terminals to simplify electrical connections. It features a single-phase configuration with one stage providing effective attenuation against EMI noise, leveraging a choke with high saturation resistance and excellent thermal behavior.

With capacitance of 150nF and inductance of 1mH, this EMI filter minimizes interference impact on sensitive electronic circuits. It operates reliably in a wide temperature range from -25°C to 100°C, ensuring stable performance in harsh environments.

The leakage current is low at 740μA, while resistance is minimal at 1mΩ, resulting in power loss of only 1.5 watts - making it energy efficient and safe for continuous operation. The physical dimensions (64mm length, 29.3mm height, 35mm depth) allow integration into various chassis layouts without space constraints.

This Schaffner FN2020 EMI filter is a preferred choice for industries needing reliable noise suppression in power supplies, medical and safety applications, manufacturing equipment, and electronic assemblies.

Efficient EMI filtering with high current and voltage ratings. Chassis mount form factor with fast-on terminals. Robust thermal and saturation resistance design. Wide operating temperature range accommodates industrial conditions.

Compact size for easy integration in power systems. Low power loss and leakage current for improved reliability. Suitable for general purpose electronic and industrial EMI suppression. Explore other high-quality EMI Filters and power line filters at EnvMart for industrial and electronic application needs.
