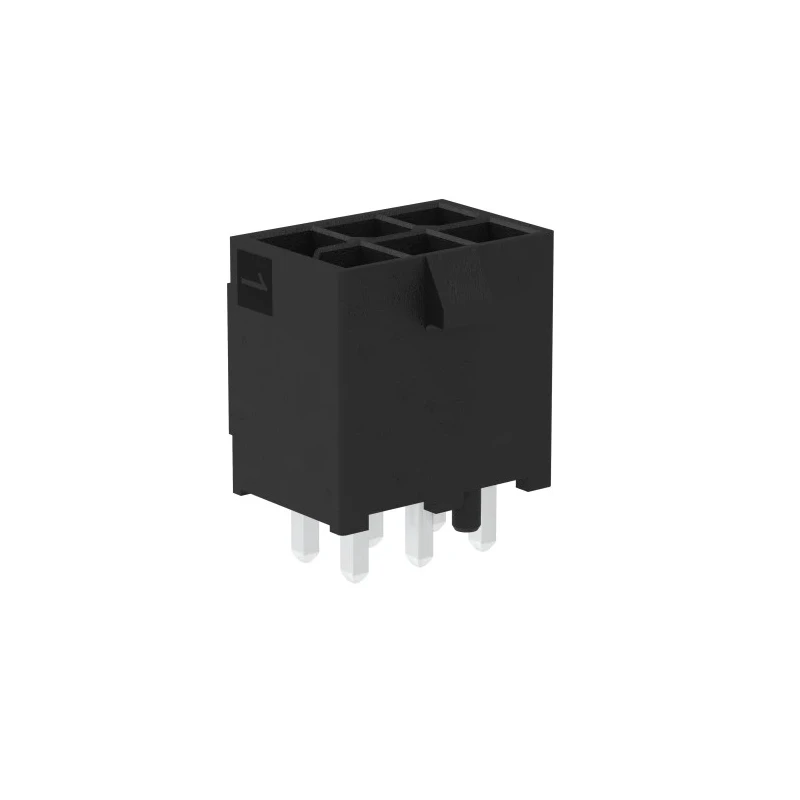

Molex Mini-Fit Max Series Vertical Through Hole PCB Header 8 Contacts 4.2 mm Pitch Shrouded 212520-1008
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 20A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | Mini-Fit Max |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Standards/Approvals | China RoHS compliant |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Provides reliable wire-to-board connection with a vertical orientation.
- Features liquid crystal polymer housing for durability and high-temperature resistance.
- Rated for 20 amperes of current capacity to support demanding electrical loads.
- Constructed with copper alloy contacts plated in tin for optimal conductivity and corrosion protection.
- Designed for through hole mount and solder termination for secure PCB attachment.
- Supports an operating temperature range between -40°C and 105°C for versatile applications.
- Shrouded design ensures protection and alignment during mating cycles, rated for up to 30 cycles.
- Complies with China RoHS regulations and is halogen free.
Product Description
Molex 212520-1008 Mini-Fit Max Series vertical through hole PCB header is a precision electronic component designed for robust and reliable wire-to-board connections. Featuring 8 female contacts arranged in 2 rows with a 4.2 mm pitch, this PCB Header is crafted from high-quality liquid crystal polymer for the housing, ensuring excellent durability and resistance to high temperatures up to 105°C.
The contacts are made from copper alloy material with a tin plating that guarantees optimal electrical conductivity and corrosion resistance. This device supports continuous current up to 20A, making it suitable for various industrial, electronic, and commercial applications where stable power delivery is critical.
The vertical through-hole mounting type with solder termination ensures firm mechanical attachment and electrical connection to printed circuit boards. Its shrouded design protects contacts from damage and misalignment and supports a maximum of 30 mating cycles, making it ideal for maintenance-intensive environments.
Operating efficiently in temperatures ranging from -40°C to 105°C, this connector is halogen free and complies with China RoHS standards, reflecting its eco-friendly construction.
Applications span across electronics manufacturing, telecommunications equipment, industrial control panels, and power distribution systems. The product is manufactured in Mexico with strict quality controls.
Reliable wire-to-board connection with vertical orientation. Durable liquid crystal polymer housing with high temperature resistance. High current capacity of 20 amperes for demanding loads. Copper alloy contacts with tin plating for excellent conductivity and corrosion protection.
Designed for through-hole mount and solder termination for secure attachment. Operating temperature range of -40°C to 105°C for versatile use. Shrouded design ensures contact protection and alignment with max 30 mating cycles.
Compliant with China RoHS and halogen free for environmental safety. Manufactured in Mexico with quality assurance. Explore a wide range of high-quality PCB connectors and related components on EnvMart to support your electronic and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current capacity of 20 amperes, making it suitable for demanding electrical loads.
It operates efficiently within a temperature range of -40°C to 105°C, allowing for versatile applications in various environments.
The housing is made from liquid crystal polymer, while the contacts are constructed from copper alloy and plated with tin for optimal conductivity and corrosion resistance.
This model features 8 female contacts arranged in 2 rows, with a pitch of 4.2 mm.
It is designed for through hole mounting with solder termination, ensuring secure attachment to printed circuit boards.
Yes, it complies with China RoHS regulations and is halogen free, reflecting its eco-friendly construction.
The shrouded design of this model supports up to 30 mating cycles, providing protection and alignment during use.
This PCB header is manufactured in Mexico, adhering to strict quality controls.
It utilizes a wire-to-board connector system, which is essential for establishing reliable connections between wires and printed circuit boards.
The contacts are arranged with a pitch size of 4.2 mm, which is standard for this type of connector.
It features a shrouded design that helps protect the contacts from damage and ensures proper alignment during mating cycles.
This model has female contacts, which are designed to connect with corresponding male connectors in a wire-to-board application.
