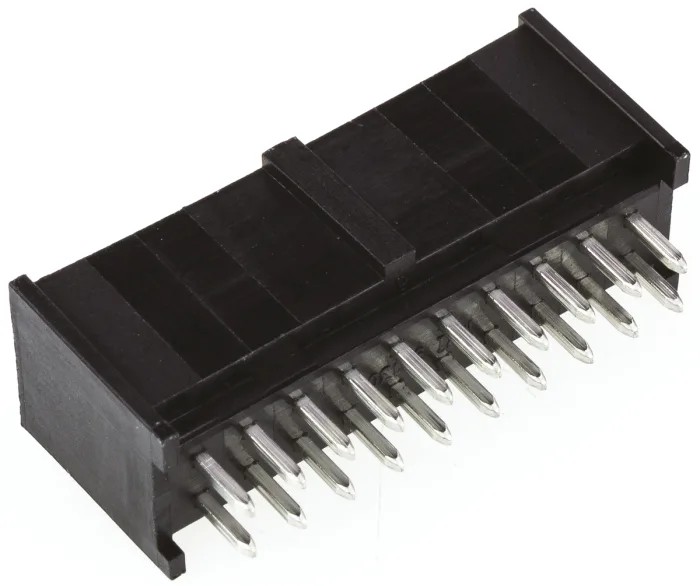

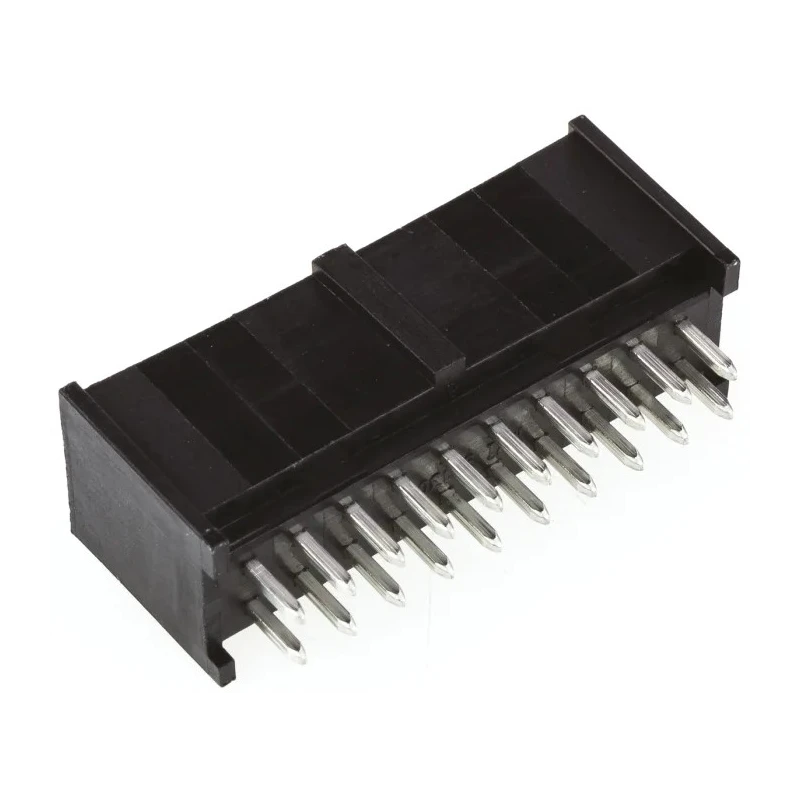

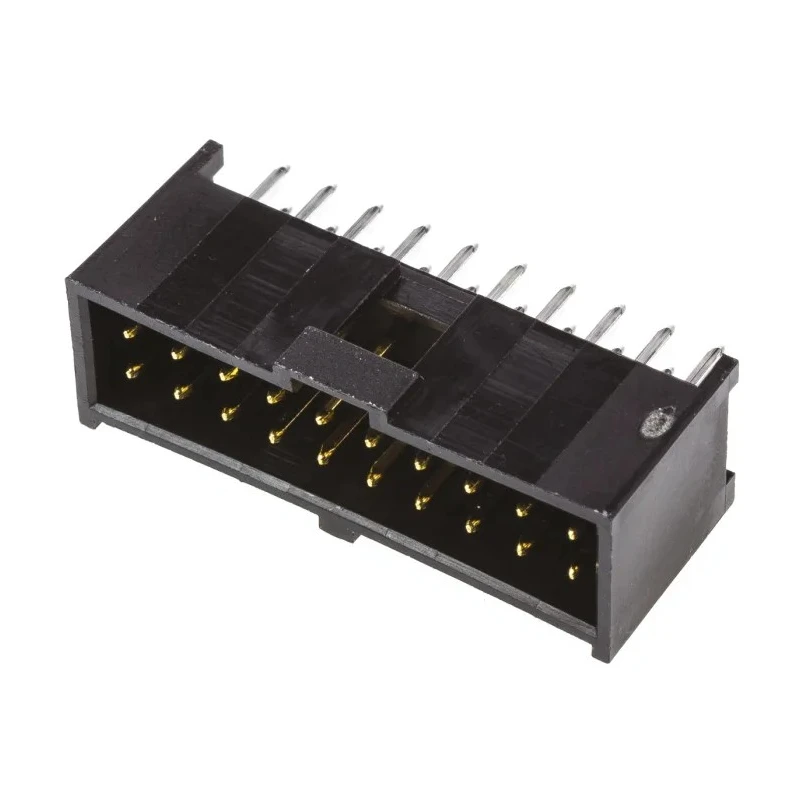

Molex C-Grid III Series Straight Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded, 3A, 350V 90130-1220

Molex 90130-1220 C-Grid III Series Straight Through Hole PCB Header is an essential component for electronic circuit boards requiring reliable wire-to-board connections. Featuring a 20-contact configuration with a 2.54 mm pitch spaced over two rows, this header is designed for applications demanding efficient power and signal transmission up to 3A current and 350V voltage.

The header is constructed with male brass contacts plated in gold to maximize corrosion resistance and conductivity while housed in high-quality polyester material that is robust and heat resistant. Its shrouded design protects the contacts from environmental damage and accidental short circuits, ensuring operational safety and durability.

This product utilizes through-hole mounting combined with solder termination, providing strong mechanical and electrical bonds on printed circuit boards. It is rated to operate within a temperature range from -55°C to 125°C, making it suitable for industrial, manufacturing, electronic assembly, and laboratory environments.

The 90130-1220 model complies with DIN 41651 and is compatible with Molex locking housings to prevent disconnects under vibration or mechanical stress. This header system is ideal for use in industrial equipment, telecommunications hardware, computing assemblies, and other electronic devices that require secure connectors with high reliability and long operational life.

20 male contacts in 2 rows designed for high-density PCB layouts. 2.54 mm pitch for wide compatibility with standard electronic components. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.

Polyester housing provides durability and withstands temperature extremes. Shrouded design enhances safety and connector integrity. Through hole mount with solder termination assures strong mechanical fixation. Operational temperature range from -55°C to 125°C supports various industrial environments.

Meets DIN 41651 standard for locking header compatibility.

Choose Molex 90130-1220 PCB header for robust, reliable connections in electronic and industrial manufacturing applications. Explore more PCB Headers and electronic connectors in our extensive EnvMart catalog.
