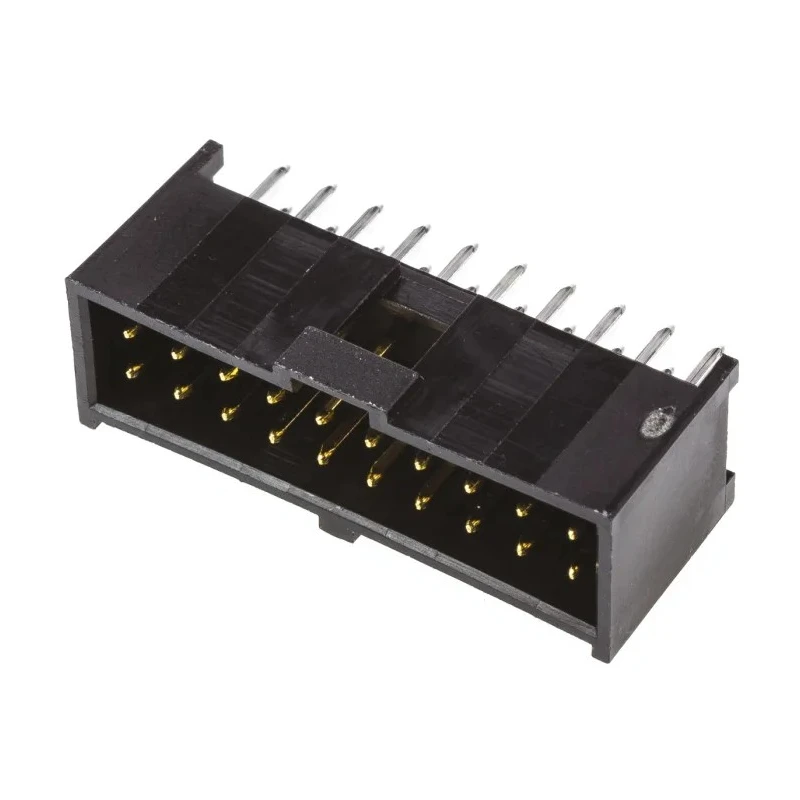

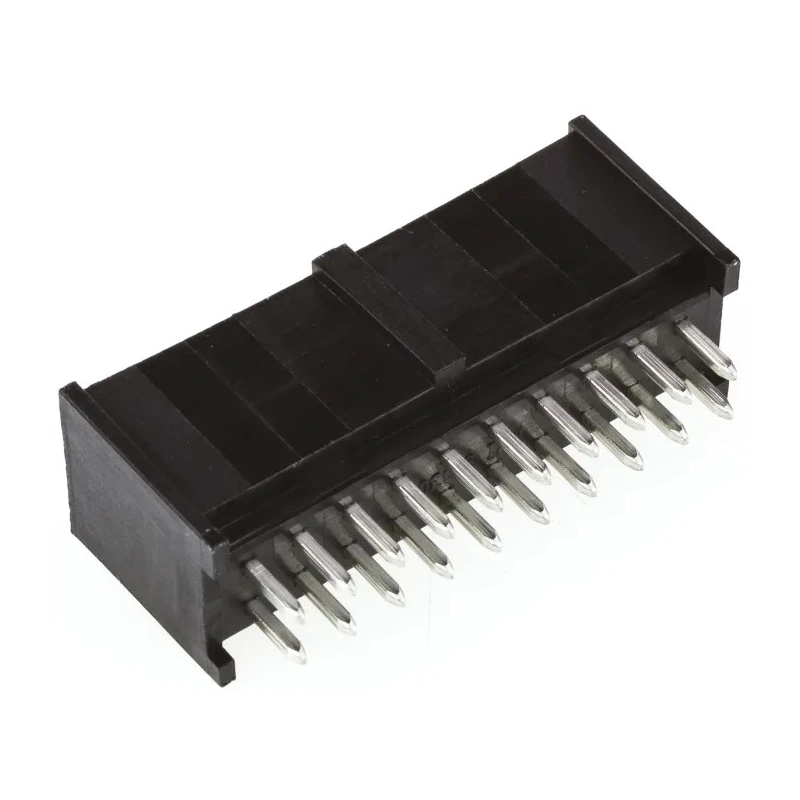

Molex C-Grid III Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 90130-1220
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Constructed with gold-plated brass contacts for excellent conductivity and corrosion resistance.
- Housing made from durable polyester material ensuring mechanical strength and insulation.
- Rated for 3 amps current and 350 volts, suitable for various electronic applications.
- Operating temperature range from -55°C up to 125°C for versatile deployment in harsh environments.
- Tail pin length of 2.9 mm and mating pin length of 6.75 mm for secure solder connections.
- Designed per DIN 41651 and HE13/14 standards ensuring compatibility with locking housings.
- Shrouded connector enhances mechanical stability and aids in correct mating orientation.
- Through-hole mount type provides strong physical connection to PCB.
Product Description
Molex 90130-1220 is a high quality C-Grid III Series Straight Through Hole PCB Header designed for secure wire-to-board connections. This 20-contact, 2.54 mm pitch, 2-row header features a shrouded design that ensures stable mechanical locking and reliable mating with corresponding housings. Constructed using gold-plated brass contacts and a polyester housing, it delivers excellent electrical conductivity and insulation performance.
The header is rated for a current of 3 amps and a voltage of 350 volts, with an operating temperature range from -55°C up to 125°C, allowing it to perform consistently in demanding industrial and electronic environments. The termination type is solder, with tail pins measuring 2.9 mm in length and mating pins at 6.75 mm for secure solder joints.
Its through-hole mounting type provides robust mechanical strength on printed circuit boards, making it suitable for manufacturing and assembly in electronics production lines. The male contact gender fits standard wire-to-board applications, while the shrouded design helps prevent misalignment during installation.
This header complies with DIN 41651 and HE13/14 standards, confirming its compatibility within Molex’s reliable C-Grid III range. Constructed with gold-plated brass contacts for consistent signal integrity. Durable polyester housing provides excellent electrical insulation.
Supports 3A current and 350V voltage ratings for robust performance. Wide operating temperature range from -55°C to 125°C ensures reliability. Shrouded and straight orientation improves mechanical stability and mating accuracy.
Through-hole mounting guarantees strong PCB attachment. Ideal for use in industrial, laboratory, manufacturing, HVAC, and commercial electronics. Explore Molex products and related PCB Headers on EnvMart for quality electronic components and connectors suitable for various technical and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 amps and a voltage of 350 volts, making it suitable for various electronic applications.
It features a pitch of 2.54 mm and has 20 contacts arranged in 2 rows.
The contacts are made of gold-plated brass, while the housing is constructed from durable polyester material, providing excellent conductivity and insulation.
The operating temperature range is from -55°C to 125°C, allowing for versatile deployment in harsh environments.
It uses a through-hole mounting type, which provides a strong physical connection to the PCB.
The tail pin length is 2.9 mm, which aids in secure solder connections.
This model is designed per DIN 41651 and HE13/14 standards, ensuring compatibility with locking housings.
The mating pin length is 6.75 mm, which helps to ensure secure connections during operation.
It utilizes a wire-to-board connector system, making it suitable for standard applications.
This header is shrouded, which enhances mechanical stability and aids in correct mating orientation.
The contact gender is male, fitting standard wire-to-board applications.
The country of origin for this model is India.
