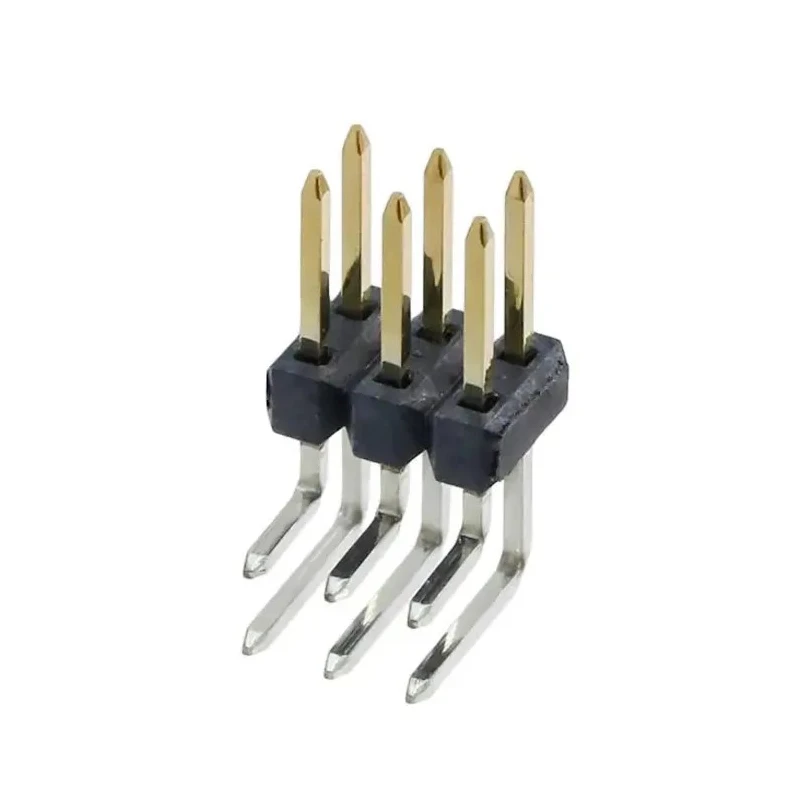

Molex C-Grid Series Right Angle Through Hole Pin Header, 6 Contacts, 2 Row, 2.54 mm Pitch, Unshrouded, Gold 879110611

Name: Molex C-Grid Series Right Angle Through Hole Pin Header, 6 Contacts, 2 Row, 2.54 mm Pitch, Unshrouded, Gold 879110611
Brand: Molex
SKU: 169184
Price: 1.1 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Indonesia
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	High Temperature Thermoplastic
Contact Material	Copper Alloy
Series	C-Grid
Termination Type	Tin
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	UL E29179
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.18mm
Mating Pin Length	6.1mm

Key Features

Rated for 3A current carrying capacity.
Constructed with high temperature thermoplastic housing for enhanced durability.
Features gold-plated copper alloy contacts for corrosion resistance and conductivity.
Terminated with tin plating and designed for through-hole mounting.
Capable of operating between -55°C and 105°C for broad temperature range applications.
Unshrouded design allows for easy mating and inspections.
Right-angle orientation ensures optimal PCB layout and connector alignment.
Accommodates voltage ratings up to 250V.

Product Description

Molex 879110611 C-Grid Series Right Angle Through Hole Pin Header is engineered for robust electronic interconnections. This connector features 6 male contacts arranged in 2 rows with a 2.54 mm pitch, enabling precise and secure board-to-board connections in electronic assemblies.

The housing is made of high temperature thermoplastic which withstands harsh environments and ensures mechanical stability. Gold-plated copper alloy contacts optimize signal integrity and prevent corrosion. Tin termination provides reliable solder joints during mounting.

Designed for through-hole mounting, this header suits applications requiring strong mechanical fixation. The right-angle orientation facilitates flexible PCB designs and efficient space utilization.

Operating temperature range from -55°C up to 105°C makes it suitable for industrial, electronic manufacturing, aerospace, automotive, and consumer electronics. It holds a 3A current rating and supports voltages up to 250V, meeting safety and operational standards including UL E29179.

Rated for 3A current capacity. High temperature thermoplastic housing material. Gold plated copper alloy contacts for enhanced conductivity. Tin termination ensures reliable solder connections. Right angle unshrouded configuration for versatile mounting.

Compatible with a 2.54 mm pitch and 2 row layout. Temperature range from -55°C to 105°C. Meets UL E29179 standards for safety compliance.

This Molex pin header is ideal for use in precision electronics, industrial control boards, telecommunications equipment, and other PCB-based assemblies requiring high reliability and durability.
