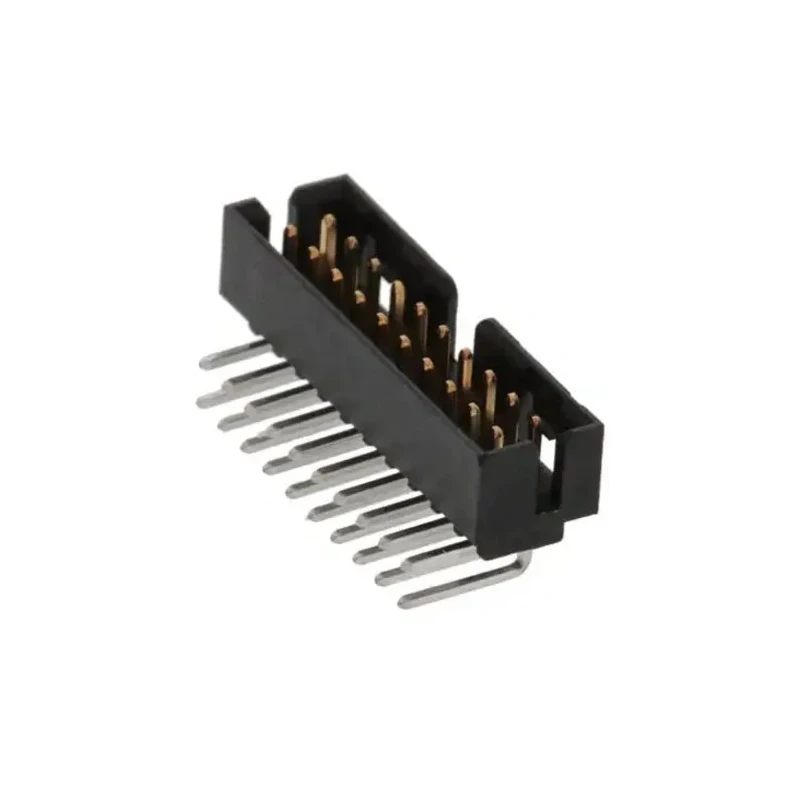

Molex Milli-Grid Series Right Angle Through Hole Shrouded PCB Header, 20 Contacts, 2 mm Pitch, 2 Rows 878332019

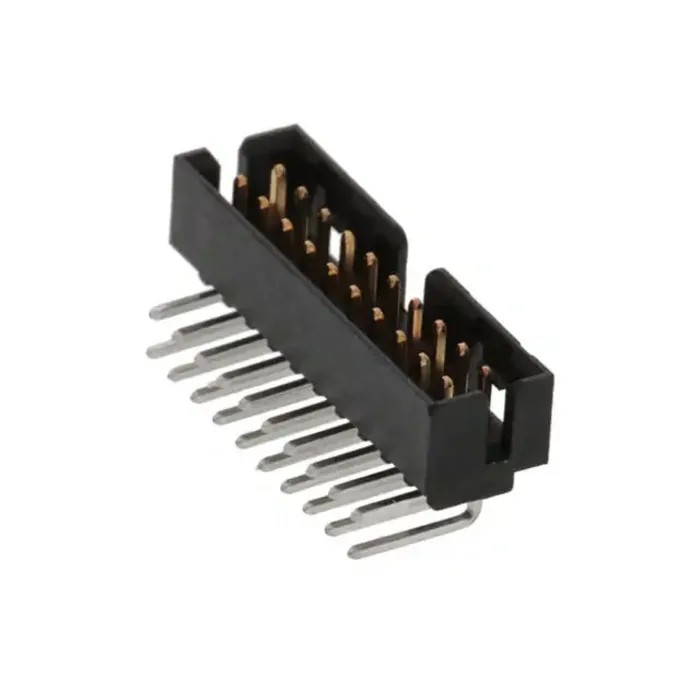

Molex 878332019 is a shrouded right angle through hole PCB header from the Milli-Grid series featuring 20 male contacts arranged in 2 rows with a 2 mm pitch. This connector is engineered for high reliability and performance in electronics applications requiring secure PCB connections.

The header includes a Nylon housing material and gold-plated phosphor bronze contacts providing excellent conductivity and corrosion resistance. It is designed to handle currents up to 2 amperes at voltages up to 125 volts, making it suitable for low power electronic circuits.

The connector's right angle orientation simplifies PCB layout designs and assembly processes. The through hole mount with solder termination ensures a robust mechanical and electrical connection ideal for industrial, commercial, and laboratory electronic assembly environments.

It functions efficiently within a wide temperature range of -55°C to 105°C and meets critical environmental compliance standards including EU RoHS and China RoHS, ensuring it is free of restricted hazardous substances.

The contact tail pin length of 2.16 mm and mating pin length of 3.6 mm support reliable mating cycles and signal integrity. The shrouded design protects the pins from damage and prevents accidental short circuits during handling and operation.

Includes 20 gold-plated phosphor bronze male contacts in 2 rows. 2 mm pitch spacing suited for compact PCB layouts. Right angle orientation enhances PCB assembly flexibility. Nylon housing provides durability and electrical insulation.

Compliance with RoHS directives ensures environmental safety.

This PCB Header is widely used in electronics manufacturing, industrial control systems, computer hardware assembly, and other applications where precise, durable PCB connections are critical. Explore more Molex PCB connectors on EnvMart to find compatible components and complementary parts.
