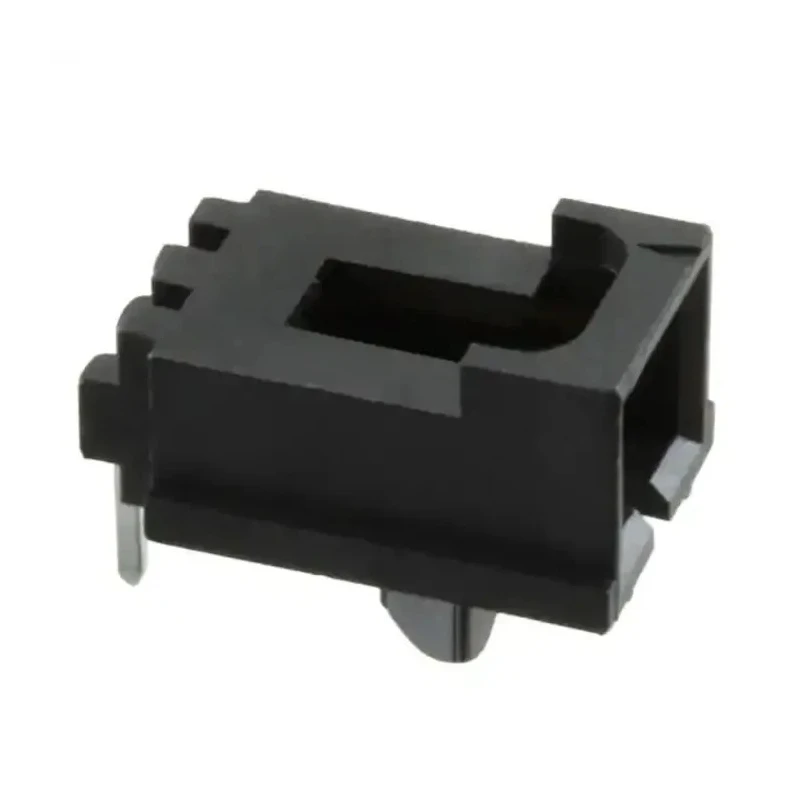

Molex SL Series Right Angle Through Hole PCB Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 705550037
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass, Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold, Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.30mm |
| Mating Pin Length | 6.1mm |
Key Features
- Constructed with high temperature thermoplastic housing for durability.
- Supports a current rating of 3A at 250V operating voltage.
- Contacts made from brass and phosphor bronze with gold and tin plating for excellent conductivity.
- Through hole mount type suitable for wire-to-board connector system.
- Designed to operate in temperature range from -40°C to 105°C.
- Tail pin length is 3.30 mm and mating pin length is 6.1 mm.
- Meets CSA LR19980 and UL E29179 standards ensuring safety and reliability.
Product Description
Molex 705550037 PCB Header is a high-quality electronic component designed for reliable wire-to-board connections in industrial, commercial, and electronic assembly applications. Featuring a right angle orientation with through hole mounting, this connector offers 3 male contacts arranged in a single row with a 2.54 mm pitch spaced for precise PCB interfacing.
The housing is made from high temperature thermoplastic material, providing rugged performance and chemical resistance under demanding environments. With contact materials composed of brass and phosphor bronze and plated with gold and tin, the header ensures low electrical resistance and enhanced corrosion protection.
Rated for 3A current and 250V voltage, this component supports medium power applications. Its operating temperature range extends from -40°C to 105°C, making it suitable for a wide variety of environments including industrial and laboratory equipment.
The connector's termination type is solder, with a tail pin length of 3.30 mm and mating pin length of 6.1 mm, offering secure mechanical and electrical connection. Compliance with CSA LR19980 and UL E29179 approvals underlines the product's adherence to international safety standards.
This shrouded PCB header is ideal for electronics manufacturers requiring robust, right angle connectors for printed circuit boards in power and signal interface roles. It supports automated assembly processes and ensures long-term durability in embedded systems.
Constructed with high temperature thermoplastic housing for durability. Supports a current rating of 3A at 250V operating voltage. Contacts made from brass and phosphor bronze with gold and tin plating for excellent conductivity.
Through hole mount type suitable for wire-to-board connector system. Designed to operate in temperature range from -40°C to 105°C. Tail pin length is 3.30 mm and mating pin length is 6.1 mm. Meets CSA LR19980 and UL E29179 standards ensuring safety and reliability.
Explore more Molex PCB Headers and electronic components tailored to high quality and performance standards at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 3A.
The operating voltage for this model is 250V.
The contacts are made from brass and phosphor bronze, and they are plated with gold and tin for enhanced conductivity.
The pitch of the contacts is 2.54 mm.
This connector is designed to operate within a temperature range of -40°C to 105°C.
This model features a through hole mount type suitable for wire-to-board connector systems.
The tail pin length is 3.30 mm.
The mating pin length is 6.1 mm.
This model meets CSA LR19980 and UL E29179 standards, ensuring safety and reliability.
This connector has 3 male contacts arranged in a single row.
The termination type for this PCB header is solder.
This model features a right angle orientation.
