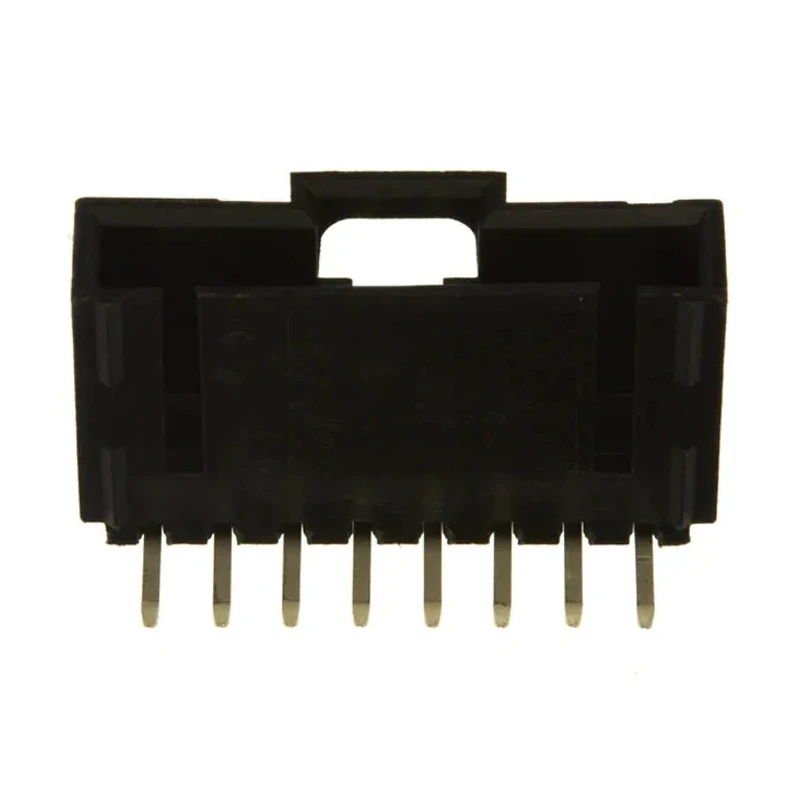

Molex SL Series Right Angle Through Hole PCB Header 8 Contacts 2.54 mm Pitch 1 Row Shrouded 705530112
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass, Phosphor Bronze |
| Series | SL |
| Termination Type | Tin |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Designed with high temperature thermoplastic housing for durability.
- Supports a current rating of 3A, suited for moderate power applications.
- Features gold-plated brass and phosphor bronze contacts for reliable conductivity and corrosion resistance.
- Right angle orientation enables flexible PCB mounting options.
- Termination type is tin, ensuring good solderability.
- Operating temperature range from -40°C to 105°C for versatile environments.
- Mating pin length of 6.1 mm and tail pin length of 3.3 mm provide secure connections.
- Certified to CSA LR19980 and UL E29179 standards for quality assurance.
Product Description
The Molex 705530112 SL Series Right Angle Through Hole PCB Header is engineered for reliable electronic connection in diverse industrial applications, including electronic manufacturing, power and connectors, and PCB assembly.
This PCB header features 8 male contacts arranged in a single row, spaced at a 2.54 mm pitch to match standard PCB layouts. Its housing is crafted from high temperature thermoplastic, providing excellent thermal resistance essential for electronic assembly processes.
With a current rating of 3A and voltage rating of 250V, this header supports moderate power signals efficiently. The contacts are made of brass and phosphor bronze with a gold plating to enhance conductivity and inhibit corrosion, while the tin termination ensures optimal solder joint quality.
The right angle orientation design facilitates connection in compact PCB footprints where space constraints exist. Additionally, the header includes a shrouded body for protection against inadvertent contact, enhancing safety and durability.
The product operates reliably over a broad temperature range of -40°C to 105°C, suitable for various industrial and commercial environments. Compliance with CSA LR19980 and UL E29179 standards ensures adherence to safety and quality regulations.
High temperature thermoplastic housing offers durability and thermal resistance. 3A current rating suitable for typical electronic power applications. Gold-plated brass and phosphor bronze contacts improve conductivity and corrosion resistance.
Right angle orientation for versatile PCB mounting. Tin termination type ensures high-quality soldering connections. Wide operating temperature from -40°C to 105°C increases versatility. Meets CSA LR19980 and UL E29179 standards for reliability.
This product is ideal for applications in industrial electronics assembly, power connectors, electronic prototypes, and repair scenarios that require dependable and standardized PCB connections.
Browse EnvMart’s Electronics Components section for more robust and quality PCB Headers and connectors offered by Molex and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3A, making it suitable for moderate power applications.
The voltage rating for this model is 250V, allowing it to handle typical electronic power signals effectively.
The contacts are made of brass and phosphor bronze, featuring gold plating to enhance conductivity and resist corrosion.
The mating pin length is 6.1 mm, while the tail pin length is 3.3 mm, ensuring secure connections.
It operates reliably over a temperature range from -40°C to 105°C, suitable for various industrial environments.
This model is designed for through hole mounting, which is common in PCB applications.
This header features a shrouded design, which provides protection against inadvertent contact.
It is certified to CSA LR19980 and UL E29179 standards, ensuring adherence to safety and quality regulations.
The contacts are arranged with a pitch of 2.54 mm, matching standard PCB layouts.
This model has a right angle orientation, allowing for flexible PCB mounting options in compact spaces.
The termination type is tin, which ensures good solderability for reliable connections.
It is ideal for applications in electronic manufacturing, power connectors, and PCB assembly.
