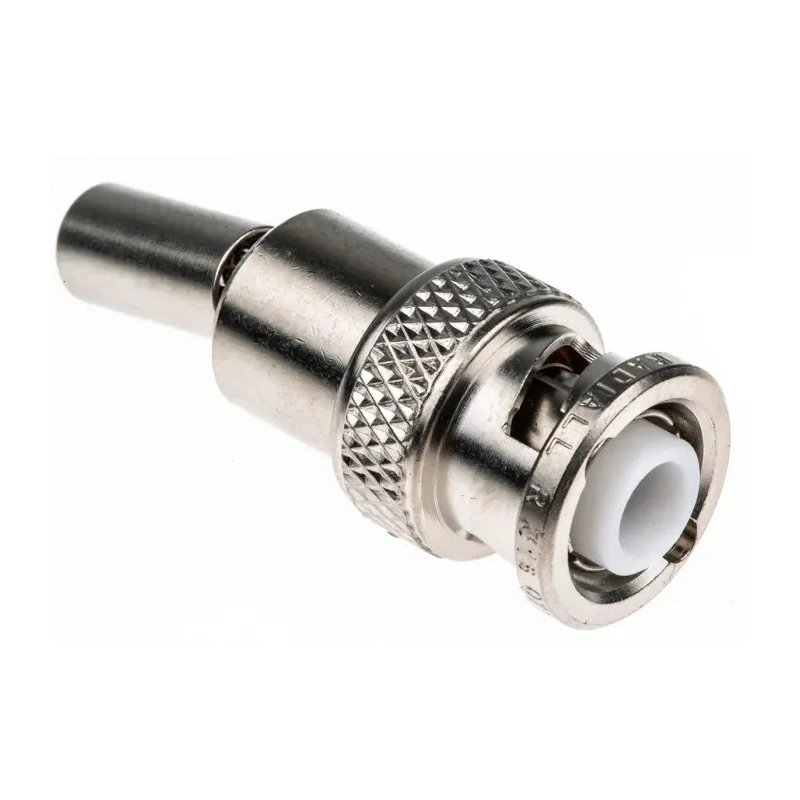

Radiall BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Crimp R316072000

Free Delivery in India | Lowest Global Shipping Charges

Radiall BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Crimp R316072000

Name: Radiall BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Crimp R316072000
Brand: Radiall
SKU: 168760
Price: 22.47 USD
Availability: InStock



Category Coaxial Connector Brand Radiall Condition New

Specifications

Country of Origin	France
Size	Standard
Brand	Radiall
Orientation	Straight
Temperature range	-55°C to +155°C
Model	R316072000
Mount Type	Cable
Operating Frequency	2GHz
Contact Material	Brass
Series	BNC
Termination Type	Crimp
Maximum Operating Temperature	155°C
Insulation resistance	5000 MΩ
Cable Type	RG-141, RG58
Minimum Operating Temperature	-55°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Silver
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

Operates with an impedance of 50 ohms and supports frequencies up to 2 GHz.
Features crimp termination compatible with RG-141 and RG58 cables.
Nickel-plated brass body and silver-plated brass contact ensure durability and conductivity.
Supports a wide temperature range from -55°C to 155°C for harsh environments.
Test voltages of 6000 V dc unmated and 10000 V dc mated for high-voltage applications.
Straight body design allows for standard size compatibility and easy installation.
Insulation resistance rated at 5000 MΩ for excellent electrical isolation.
Not intermateable with BNC or SHV Series to ensure connector specificity.

Product Description

Radiall R316072000 BNC Series Coaxial Connector Cable Male BNC is a high-quality coaxial connector operating with an impedance of 50 Ω and designed for RF applications up to 2 GHz. It features a straight body crimp termination compatible with RG-141 and RG58 cables, ensuring high reliability in signal transmission and mechanical stability.

The connector incorporates a nickel-plated brass body for corrosion resistance and a silver-plated brass contact for excellent conductivity. Its robust design enables operation within a temperature range of -55°C to +155°C, suitable for demanding industrial, laboratory, HVAC, and telecommunications environments requiring high voltage handling.

This BNC.HT Series plug withstands test voltages of 6000 V dc when unmated and 10000 V dc when mated, making it ideal for high-voltage RF applications requiring secure and durable connections. The crimp termination prevents accidental disconnections, and the bayonet fixing mechanism guarantees precise mating and demating.

The insulation resistance surpasses 5000 MΩ, providing excellent electrical isolation critical for maintaining signal integrity in sensitive communications and instrumentation setups. This product is manufactured in France and meets the needs of professional users working in electronics, electrical power, and communication industries.

This connector supports RG-141 and RG-58 cable types for versatile installation options. Nickel plating on the body ensures resistance against corrosion and mechanical wear. Silver plating on contacts improves signal quality by reducing resistance and oxidation.

Designed to operate reliably under temperatures as low as -55°C and as high as 155°C. High test voltages provide superior safety and reliability in high-voltage applications. The connector's rugged construction suits industrial, laboratory, and commercial uses.

The crimp termination and bayonet fixing offer secure and quick cable connection solutions.

This Radiall BNC connector is part of the broader range of connectors offered for electronics and electrical systems at EnvMart, ideal for users seeking premium RF Coaxial Connectors for professional-grade applications.
