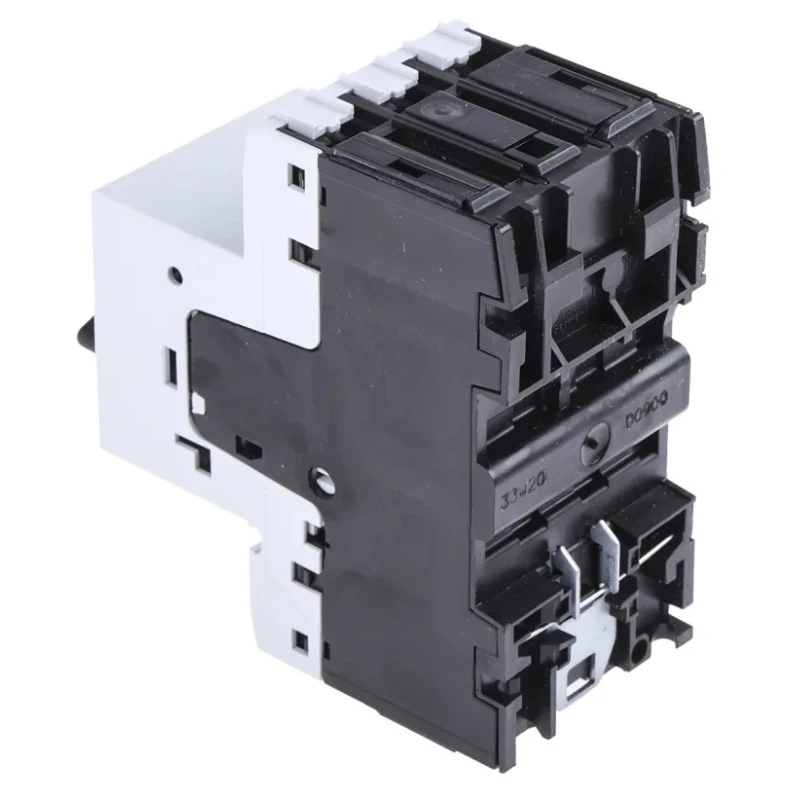

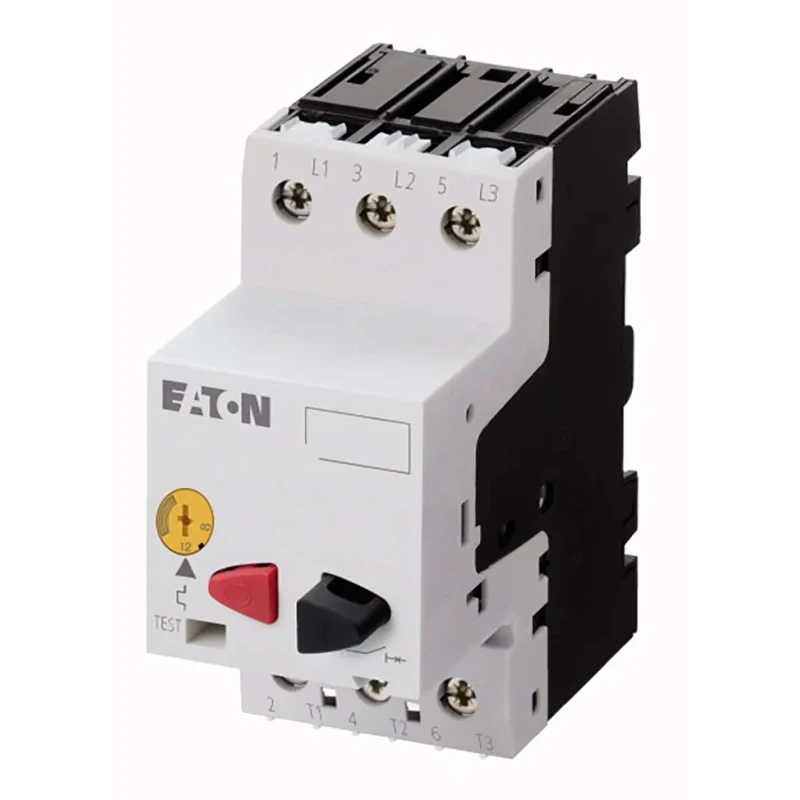

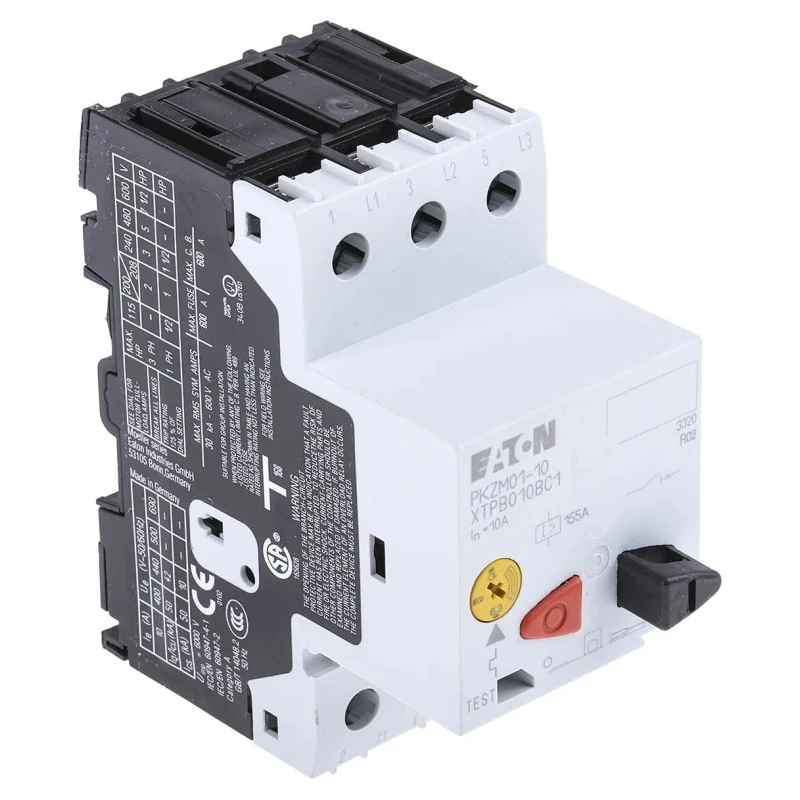

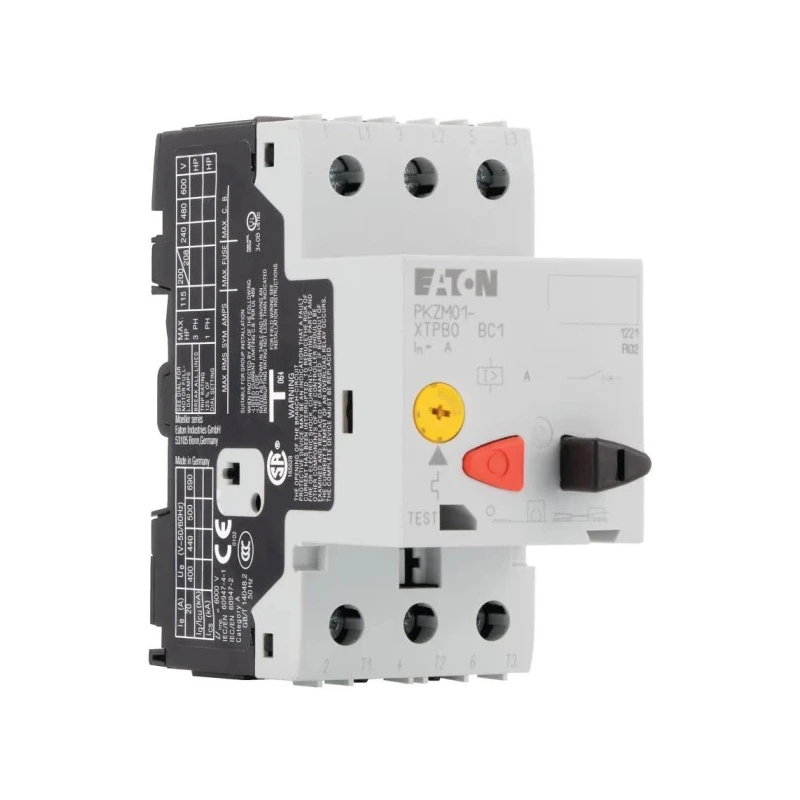

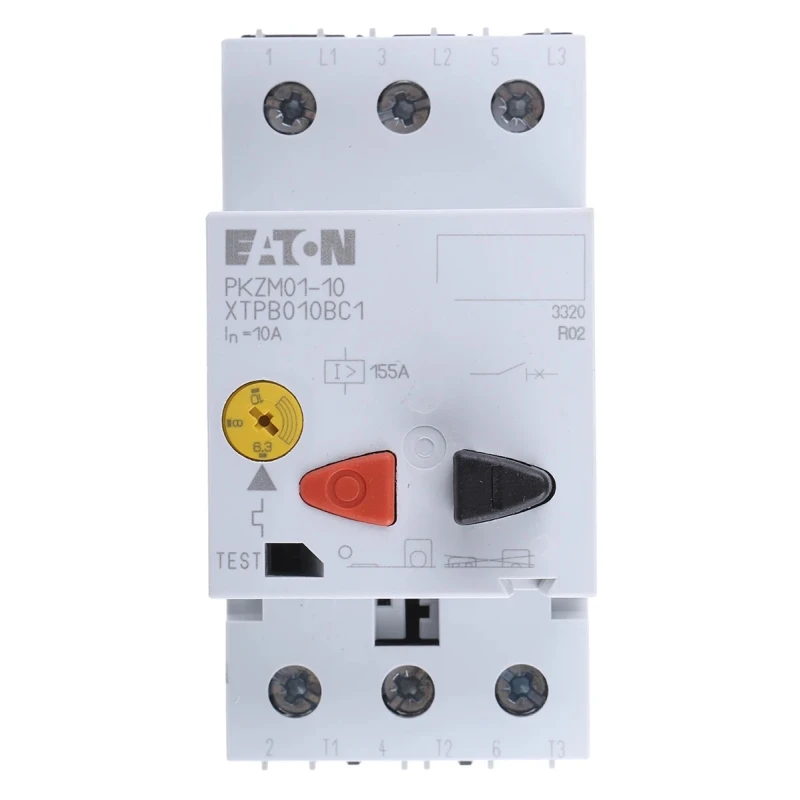

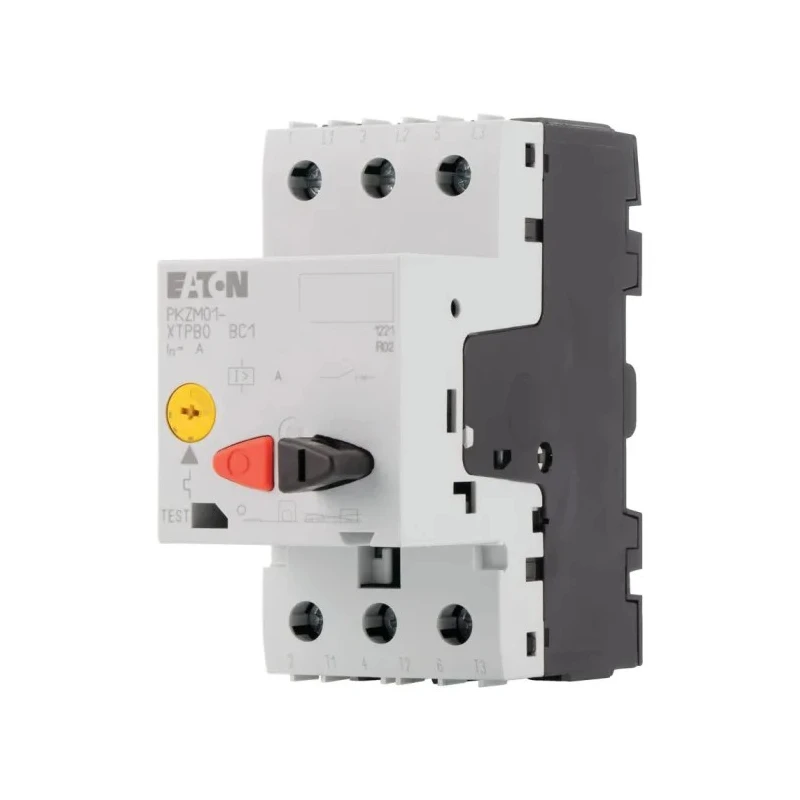

Eaton Motor Protection Circuit Breaker 10A 6.3A 690V AC 3-Pole PKZM 01 278484 PKZM01-10
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 278484 PKZM01-10 |
| IP Rating | IP00, IP20 |
| Overall Length | 93mm |
| Current Rating | 10, 6.3A |
| Series | PKZM 01 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current Transformer |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Overall Depth | 90.5mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Cooper Bussmann Copper Alloy PCB Mount Fuse Clip for 1/4inBrand | Cooper Bussmann |
Key Features
- Versatile 3-pole design supports single-phase and three-phase voltages.
- Operates at supply voltage of 690V AC with current ratings adjustable between 6.3A and 10A.
- IP20 protection rating safeguards internal components from dust ingress.
- Features push button actuator for easy reset after tripping.
- Equipped with screw terminals to ensure safe and secure wiring.
- Endures electrical lifespan of up to 50,000 cycles for long-term reliability.
- Designed to operate within temperature range of -25°C to 55°C.
- Complies with VDE 0660 Part 102, RoHS, IEC/EN 60947-4-1 standards for safety and quality.
Product Description
Eaton 278484 PKZM01-10 is a premium Motor Protection Circuit Breaker designed for high reliability and safety in industrial electrical applications. This device safeguards motor-powered equipment by tripping in response to electrical faults, thereby preventing damage and reducing downtime.
Supplied with a 3-pole configuration, it supports both single-phase and three-phase voltages at a rated supply voltage of 690V AC. The adjustable overload release setting allows current ratings from 6.3A to 10A to cater to varying motor protection needs.
The push button actuator on the front panel gives operators convenient and quick reset capabilities post-trip events, facilitating efficient operation and minimal disturbances in manufacturing or processing environments.
With an IP20 protection rating, the internal components are protected against dust ingress, enhancing product durability and lifespan. Screw terminals ensure safe connections, keeping fingers clear from live parts during installation or maintenance.
The breaker is designed to handle up to 50,000 electrical cycles, making it suitable for repetitive operations in material handling, processing plants, and other industrial sectors requiring robust motor protection devices.
Operating temperature ranges from -25°C to 55°C provide flexibility for varied environmental conditions. Compliance with international standards including VDE 0660 Part 102, RoHS directive, and IEC/EN 60947-4-1 certification assures adherence to global safety and environmental requirements.
Versatile 3-pole design supports multiple voltage configurations. Adjustable current rating between 6.3A and 10A enhances flexibility. IP20 protection rating ensures component safety from dust. Durable push button actuator for quick reset.
Robust screw terminals improve wiring safety. Long electrical lifespan of 50,000 cycles for durability. Wide temperature tolerance from -25°C to 55°C. Certified to VDE 0660 Part 102, RoHS, IEC/EN 60947-4-1 standards.
Suitable for industrial, manufacturing, material handling, and automation applications, this Eaton Motor Protection Circuit Breaker offers dependable performance and safety. Explore more motor protection products and electrical controls on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is adjustable between 6.3A and 10A.
It operates at a maximum supply voltage of 690V AC.
This unit features a 3-pole design, suitable for both single-phase and three-phase voltages.
The device has an IP20 protection rating, safeguarding internal components from dust ingress.
The overall dimensions are 93mm in length, 45mm in width, and 90.5mm in depth.
It is designed to operate within a temperature range of -25°C to 55°C.
This model endures an electrical lifespan of up to 50,000 cycles.
It utilizes a current transformer as its sensing type.
It complies with VDE 0660 Part 102, RoHS, and IEC/EN 60947-4-1 standards.
It is equipped with a durable push button actuator for easy reset after tripping.
It has screw terminals that ensure safe and secure wiring connections.
The country of origin for this model is Germany.
