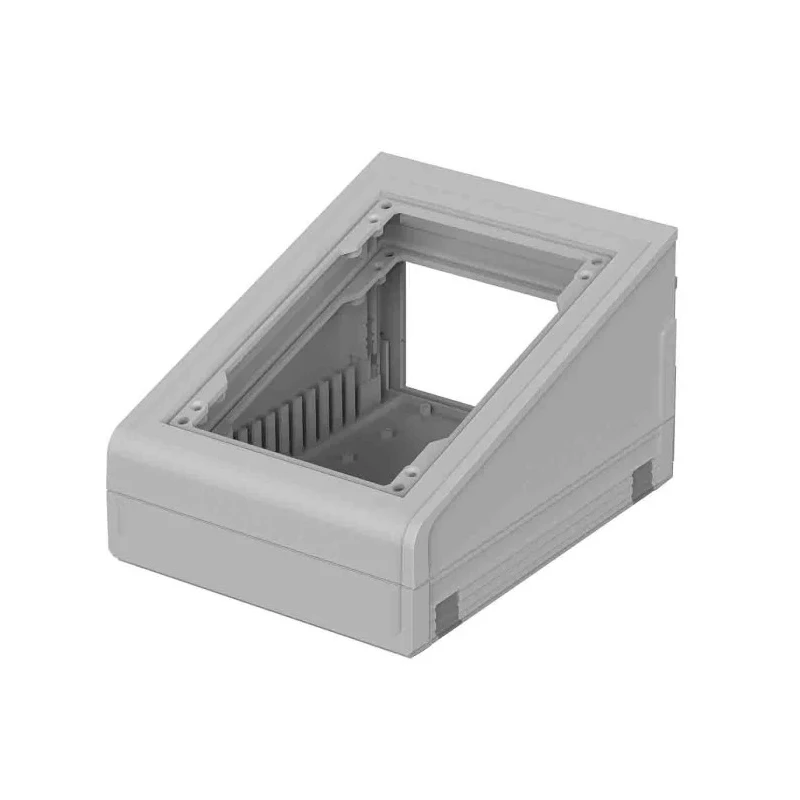

Bopla Ultrapult Series Light Grey ABS Desktop Enclosure Sloped Front 157.5 mm x 198.9 mm x 120.4 mm 45320185 UMP 32018 FP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bopla |
| Colour | Light Grey |
| Body Material | ABS |
| Model | 45320185 UMP 32018 FP |
| IP Rating | IP40 |
| Gross Weight | 456g |
| Series | Ultrapult |
| External Width | 198.9mm |
| External Height | 120.4mm |
| Standards/Approvals | RoHS |
| External Length | 157.5mm |
| L.290.9 x D.198.9 x H.120.4 mm RS stock no | 161-9330 |
| L.157.5 x D.198.9 x H. 120.4 mm RS stock no | 161-9302 |
Key Features
- The enclosure is constructed from durable ABS material suitable for electronic and electrical components.
- It features a sloped front design for ergonomic operation and IP40 rating for protection against solid intrusion but not liquids.
- Light grey color closely matches RAL 7035 with a bezel in agate grey (RAL 7038) for aesthetic consistency.
- The Ultrapult series includes two-part housings assembled with M3 screws and designed for front and rear aluminium panels.
- The enclosure is wall mountable and designed with mounting bosses for self-tapping screws to secure PCBs or cards.
- Typical applications include telecommunications systems, cable/wire management, and industrial electronic housings.
- The product complies with RoHS standards ensuring restriction of hazardous substances.

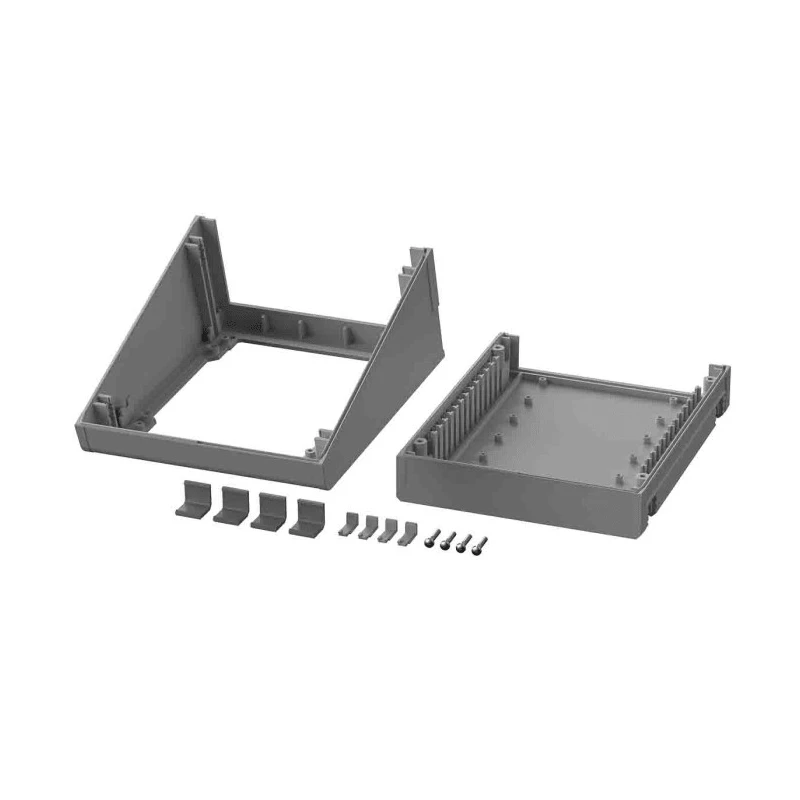

- Set includes console, 4 screw covers, 4 rubber feet, and 4 screws facilitating straightforward assembly.
Product Description
Bopla 45320185 UMP 32018 FP Ultrapult Series Desktop Enclosure is a high-quality electronic enclosure made from ABS plastic with a light grey finish. Its external dimensions are 157.5 mm length, 198.9 mm width, and 120.4 mm height, making it an excellent choice for accommodating PCBs and electrical components in industrial and telecommunications applications.
This enclosure features a sloped front for ease of use and is rated IP40 according to DIN EN 60529, providing protection against ingress of solid objects but not liquids. It incorporates a two-part housing design secured by M3 screws on the underside and is suitable for wall mounting.
The enclosure is designed to accept aluminium front and rear panels of 2 mm thickness that slide and solder into place, adding flexibility for customisations. The light grey color corresponds to RAL 7035, with a bezel in agate grey RAL 7038, offering a professional, clean appearance.
The series supports mounting of cards via bosses designed to receive self-tapping screws. It is ideal for use in food and beverage industry electronics, telecommunication systems, cable management solutions, and other commercial or industrial electronic assemblies.
The enclosure is made of ABS material with robust mechanical properties. It offers an IP40 ingress protection rating. The Ultrapult series is supplied with front and rear aluminium panel accessories that facilitate easy integration.
Wall mounting capability adds installation versatility. RoHS compliant ensuring environmentally safe manufacture. The package includes the console, 4 screw covers, 4 rubber feet, and 4 screws.
Bopla Ultrapult enclosures are widely used in industrial, laboratory, telecommunications, and manufacturing sectors where reliable housing for electronic components is essential. These Desktop Enclosures combine durability, flexibility, and ease of customization, making them suitable for a broad range of applications.
For more precision and product options, explore the Bopla brand and the Ultrapult Series at EnvMart.
