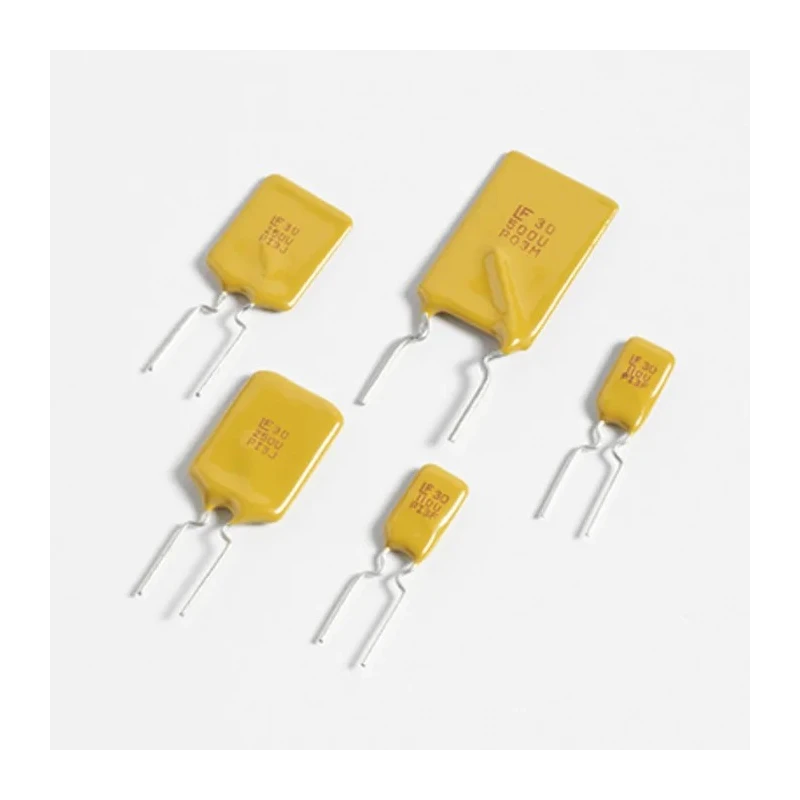

Wickmann 5 A Resettable Fuse , 10A Trip Current, 14.5s Time to Trip, Polymer Body, 3mm x 14mm x 25.6mm Dimensions 30R500UMR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wickmann |
| Body Material | Polymer |
| Height | 25.6mm |
| Length | 14mm |
| Model | 30R500UMR |
| Width | 3mm |
| Series | 30R |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 10A |
| Power Dissipation | 3W |
| Terminal Material | Tin Plated Copper |
| Time to Trip | 14.5s |
| Hold Current | 5A |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
Key Features
- The fuse features a 10A trip current for enhanced safety.
- Compact dimensions of 14mm length, 3mm width, and 25.6mm height ensure easy integration.
- Constructed with a polymer body and tin plated copper terminals for durability.
- Operates effectively within -40°C to 85°C temperature range.
- Power dissipation rated at 3 watts for stable performance.
- Minimum resistance of 0.01 ohms and maximum resistance of 50 milliohms.
- Lead-free design conforms to environmental standards.
- Ideal for low voltage (≤30V) applications requiring resettable protection.
Product Description
Wickmann 30R500UMR resettable fuse is designed for overcurrent protection in low voltage electrical applications up to 30 volts. Featuring a hold current of 5 amperes and a trip current of 10 amperes, this fuse ensures quick response with a 14.5-second trip time to protect circuits effectively. The device dimensions measure 14mm in length, 3mm in width, and 25.6mm in height, providing a compact form factor for seamless circuit board integration.
Manufactured with a polymer body and tin-plated copper terminals, the fuse combines corrosion resistance and mechanical reliability. Rated for operation in a temperature range of -40°C to 85°C and power dissipation of up to 3 watts, it maintains stable performance under varied environmental conditions. The internal resistance features a minimum of 0.01 ohms and a maximum of 50 milliohms.
The 30R series radial leaded resettable fuse uses lead-free, flame retardant epoxy polymer insulating material, supporting environmental compliance requirements. It is suited for industrial, automation, electrical, and electronic equipment that demand efficient resettable fuse protection. The fuse provides a reliable solution for circuit protection tasks where space constraints are minimal and reset capability is preferred.
The fuse supports currents up to 10A trip and 5A hold for sensitive overcurrent protection. Compact dimensions ensure compatibility with various circuit layouts. High-quality materials provide durability and long service life.
Wide operating temperature range enables industrial and commercial use. Lead-free and flame-retardant materials enhance safety standards. Designed for low voltage applications up to 30V. Flame retardant polymer body ensures fire resistance.
Radial leaded form facilitates easy through-hole PCB mounting. Set includes one Wickmann 30R500UMR Resettable Fuse. Made in China. Explore a wide range of electrical protection components and fuses at EnvMart to ensure optimal safety and compliance in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The trip current of this fuse is 10A, providing effective overcurrent protection.
The dimensions of the Wickmann 30R500UMR fuse are 14mm in length, 3mm in width, and 25.6mm in height.
The hold current rating for the Wickmann 30R500UMR is 5A, ensuring it can handle continuous current without tripping.
The time to trip for this model is 14.5 seconds, allowing for a quick response to overcurrent situations.
This fuse operates effectively within a temperature range of -40°C to 85°C.
The Wickmann 30R500UMR features a polymer body and tin-plated copper terminals, providing durability and corrosion resistance.
The power dissipation for the Wickmann 30R500UMR is rated at 3 watts, ensuring stable performance.
The minimum resistance is 0.01 ohms and the maximum resistance is 50 milliohms.
Yes, the Wickmann 30R500UMR is designed for low voltage applications up to 30 volts.
The Wickmann 30R500UMR is a radial leaded fuse, facilitating easy through-hole PCB mounting.
This fuse is manufactured in China.
The Wickmann 30R500UMR belongs to the 30R series of resettable fuses.
