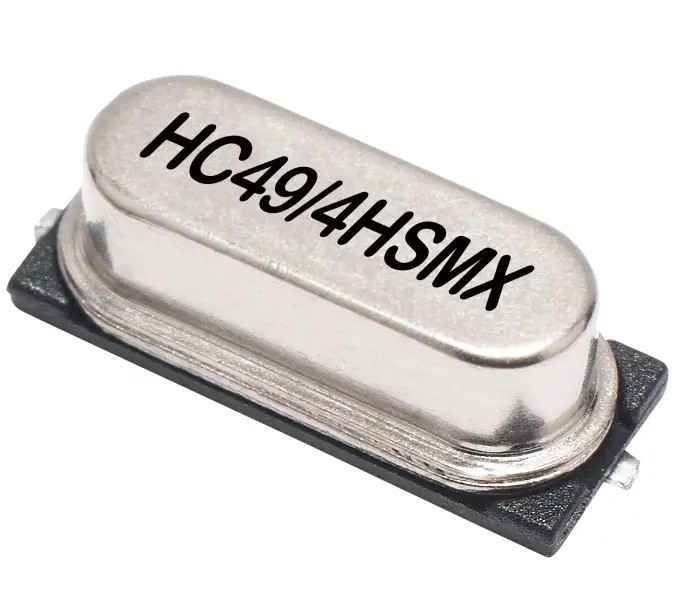

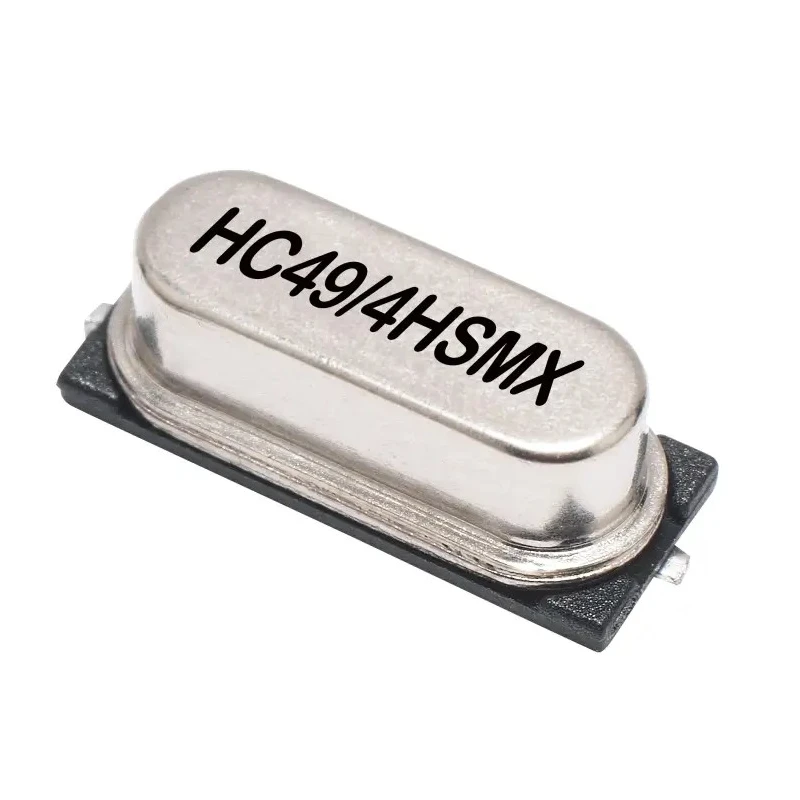

IQD 8 MHz Crystal Unit ±30 ppm Surface Mount Technology SMT 4-Pin 13.4 mm Length 4.9 mm Width LFXTAL020423

IQD LFXTAL020423 is an 8 MHz Crystal Unit designed for industrial and electronic applications requiring precise frequency control. This surface mount technology (SMT) device features a 4-pin configuration and is hermetically sealed, providing durability and stable performance.

The crystal unit offers a frequency tolerance of ±30 ppm at 25°C ±2°C, with frequency stability up to ±50 ppm. It operates reliably across a temperature range from -20°C to 70°C, making it suitable for harsh environments and varied industrial applications.

The device’s load capacitance is 18 pF, supporting stable oscillation in timing circuits. Its series resistance of 40 Ω helps minimize power loss. The compact dimensions of 13.4 mm length and 4.9 mm width enable space-efficient PCB layouts.

This crystal unit is compliant with EU directives, REACH regulations, and RoHS 2011 standards, ensuring environmental and safety compliance in electronic manufacturing. Typical applications include industrial control systems, communication devices, and other precision timing circuits in electronic component manufacturing and design.

Standard frequency of 8 MHz ensures reliable timing accuracy. Frequency tolerance of ±30 ppm supports consistent operations. Surface mount 4-pin design enables easy PCB assembly. Robust operating temperature range from -20°C to 70°C.

Series resistance of 40 Ω maintains circuit efficiency. Hermetically sealed for enhanced durability and reliability. Complies with EU, REACH, and RoHS 2011 standards. Compact size allows for efficient use of PCB space. Discover our wide range of Crystal Units and oscillators in the Electronics Components category on EnvMart for all your precision timing needs.
