Global Laser Modulating Red Laser Module 670 nm 1 mW TTL Linear Control Ellipse Pattern -12V to -8V 1060-41-000

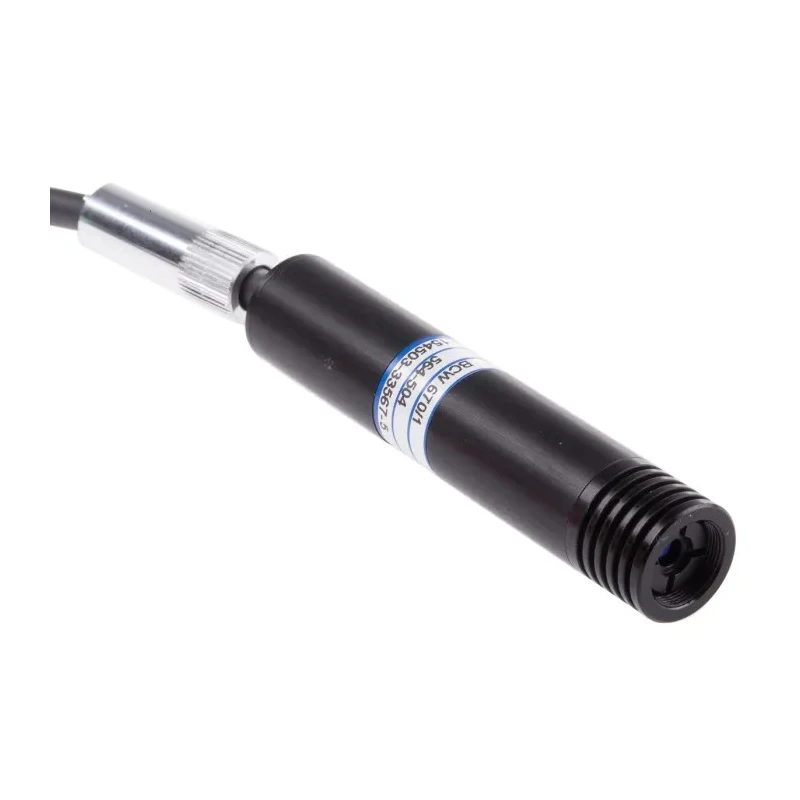

Global Laser 1060-41-000 is a high-quality modulating laser module operating at a wavelength of 670 nm, providing a 1 mW red optical output power. The integrated TTL and linear control circuitry allows precise modulation of the laser for various applications. This laser module features an ellipse emission pattern and is housed in a durable black powder coated brass body that ensures electrical isolation and mechanical robustness.

The adjustable collimating lens allows users to fine-tune the visible laser spot for pinpoint accuracy, making this module suitable for precision tasks such as alignment, edge detection, and targeting in industrial, laboratory, manufacturing, and communication systems.

Designed to operate safely within temperatures of -10°C to 50°C, it supports supply voltages from -12 V to -8 V. The modulation capability spanning from 100 Hz up to 50 MHz enhances its utility in data transmission and audio/video communication scenarios.

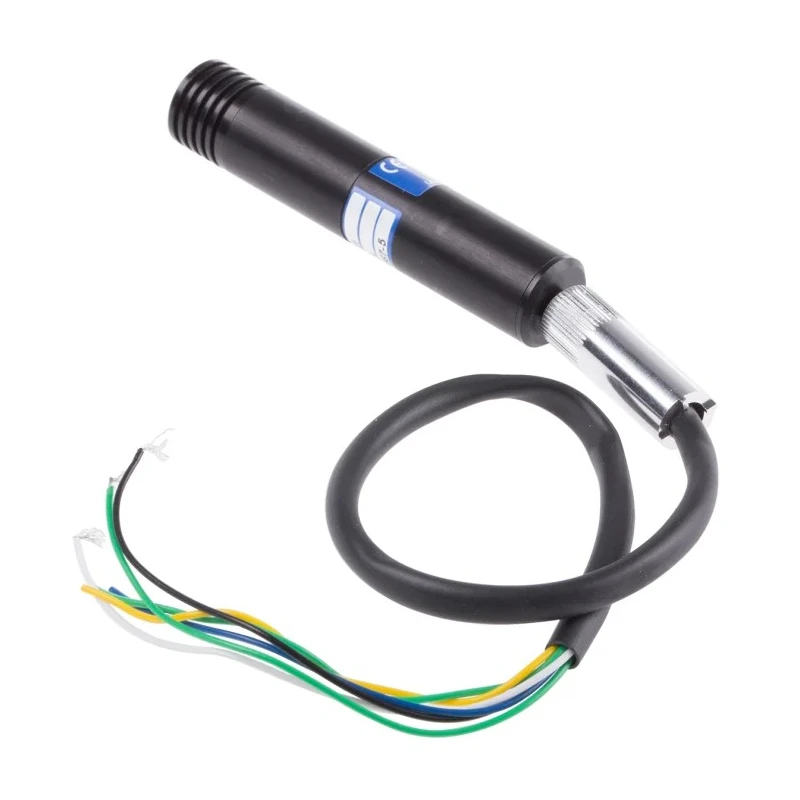

Electrical connections are clearly defined with the black wire as -Vcc, green as 0 V, white for safety interlock, blue as TTL disable, and a twisted green and yellow pair for modulation signals. This facilitates easy integration into existing electronic systems.

This laser module is built to conform with laser class 2 safety standards under BS (EN) 60825. Spot size is measured optically at 25 mm distance, providing reliable performance metrics.

Applications include industrial automation, laboratory instrumentation, communication equipment, and precise alignment tools. The product is manufactured in the United Kingdom, ensuring quality and adherence to strict manufacturing standards.
