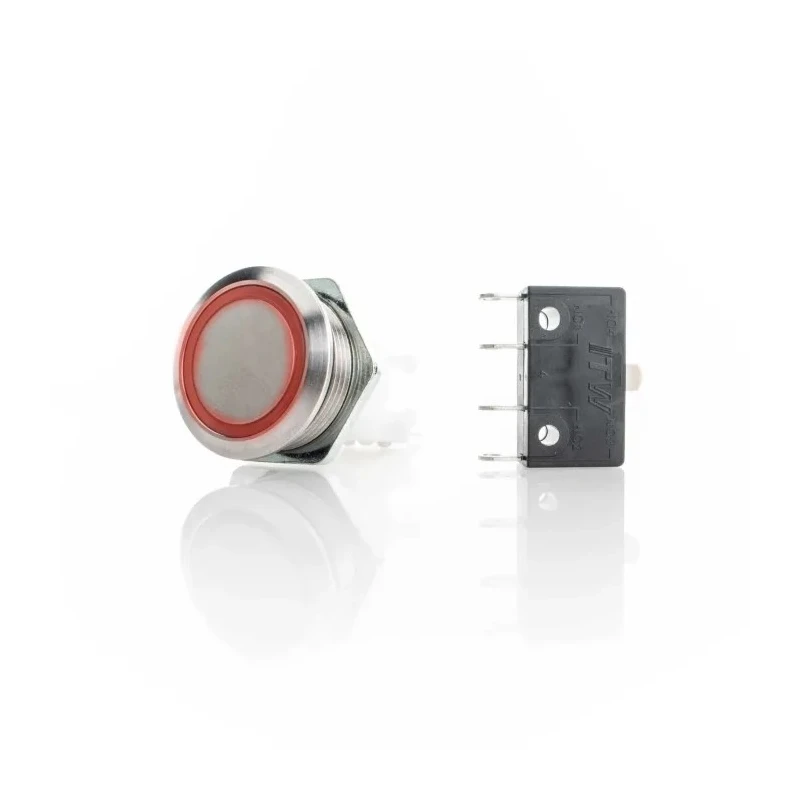

ITW Switches H48M Series Illuminated Momentary Push Button Switch Panel Mount SPDT Red LED IP67 250 V H48M-112R

ITW Switches H48M-112R Illuminated Momentary Push Button Switch is engineered for robust industrial and commercial use, featuring a stainless steel housing and IP67 rated sealing. Designed for panel mounting with a 19.6 mm cutout, it supports panel thicknesses from 0.5 mm to 4.5 mm, ensuring versatile installation options.

The switch operates momentarily with a single-pole double-throw (SPDT) contact configuration, delivering on-off switching functionality suitable for various control equipment. The actuator is round, white colored, and includes a red LED illumination for clear visual indication in operation.

It supports both DC and AC voltage up to 250V, with a current capacity of 10A, making it appropriate for rigorous electrical applications. Its operating temperature range extends from -25°C to 85°C, allowing use in diverse environmental conditions.

The IP67 frontal sealing, achieved through an o-ring, provides excellent protection against dust and water ingress, making the switch ideal for harsh industrial, security, medical, and food processing environments. Terminal type is solder, providing secure electrical connections.

This push button switch complies with UL and CSA safety standards, ensuring reliable and safe operation in demanding settings. Constructed with premium stainless steel housing for durability. Features momentary operation with on-off switch configuration.

Designed for a 19.6 mm panel cutout thickness from 0.5 mm to 4.5 mm. Red LED illumination with IP67 frontal sealing for environmental protection. Suitable for contact voltage up to 250V AC/DC and current rating of 10A. Operational temperature range from -25°C to 85°C.

Switch terminal type is solder for reliable connectivity. Complies with UL and CSA standards for industrial safety. Ideal for use in industrial machinery, security equipment, medical installations, and food processing. Explore the ITW Switches H48M Series and related Push Button Switch products on EnvMart for your electrical control and automation needs.
