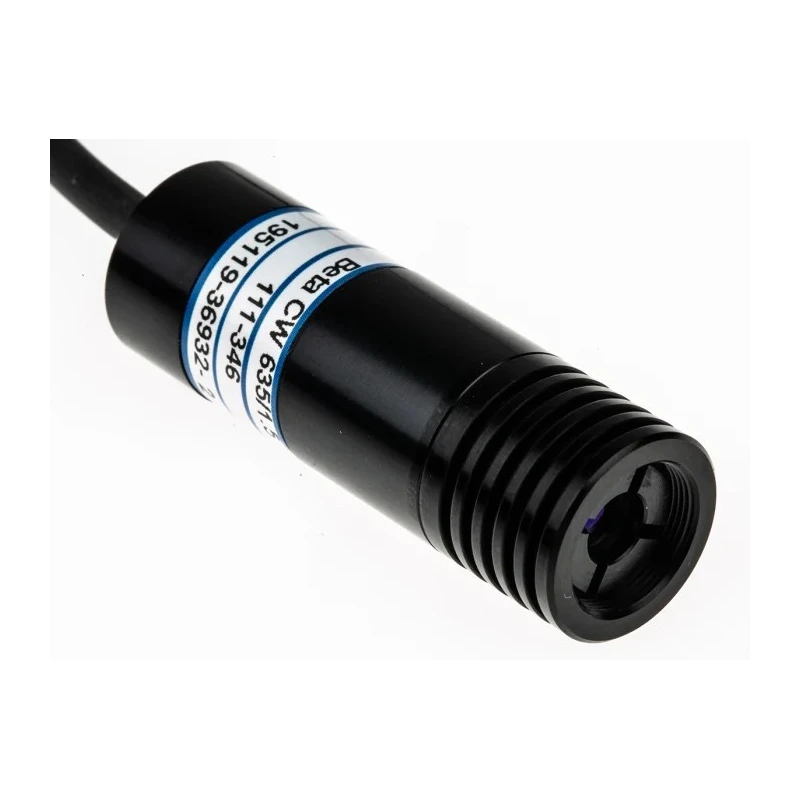

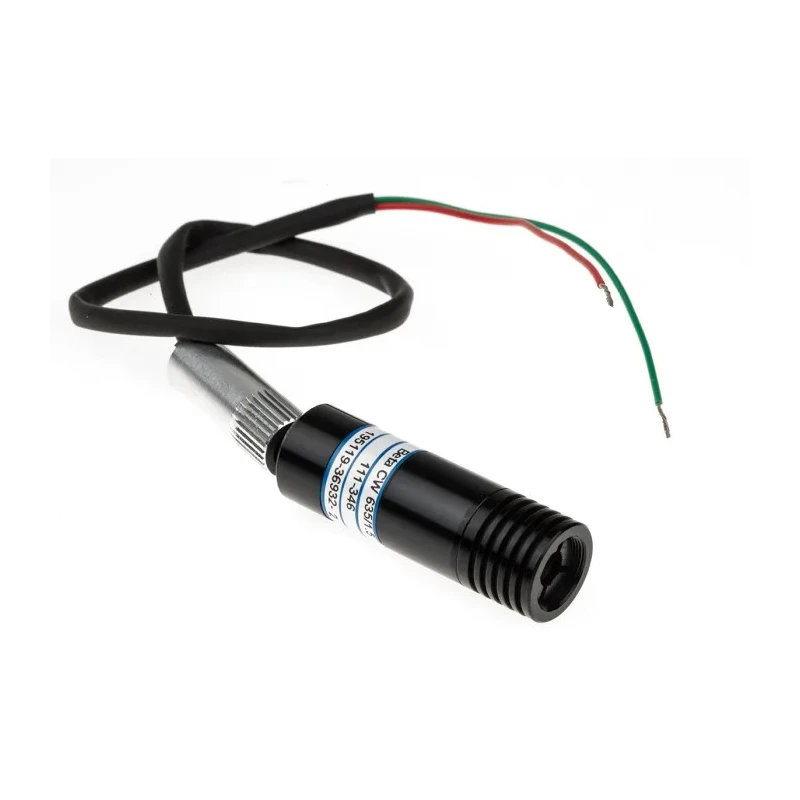

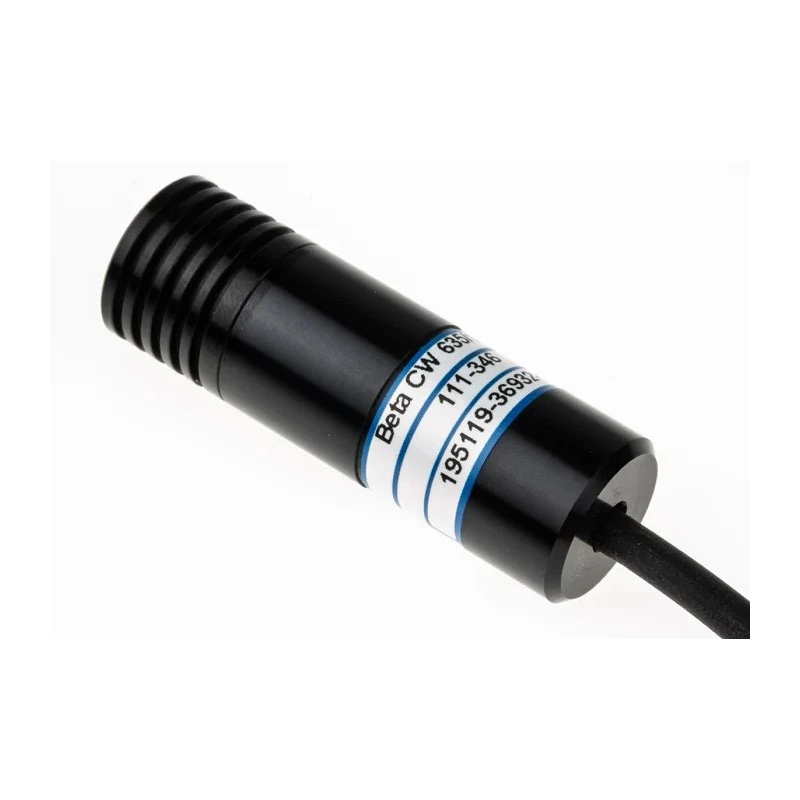

Global Laser Continuous Wave Red Laser Module 633 nm 1.5 mW Optical Output, TTL Control, Ellipse Pattern 1068-40-000

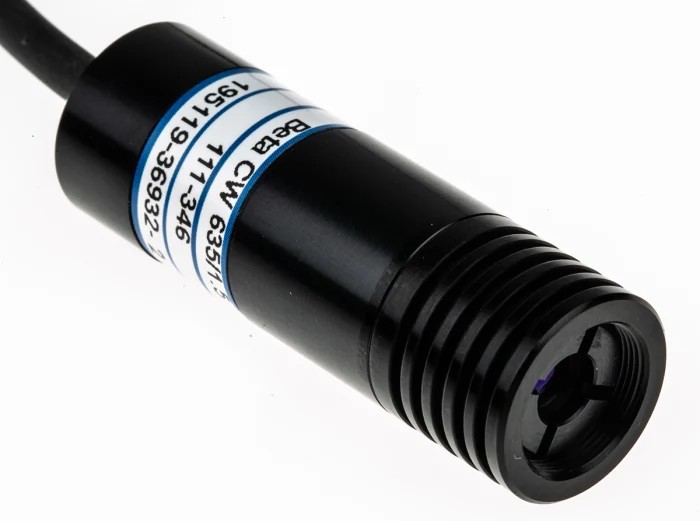

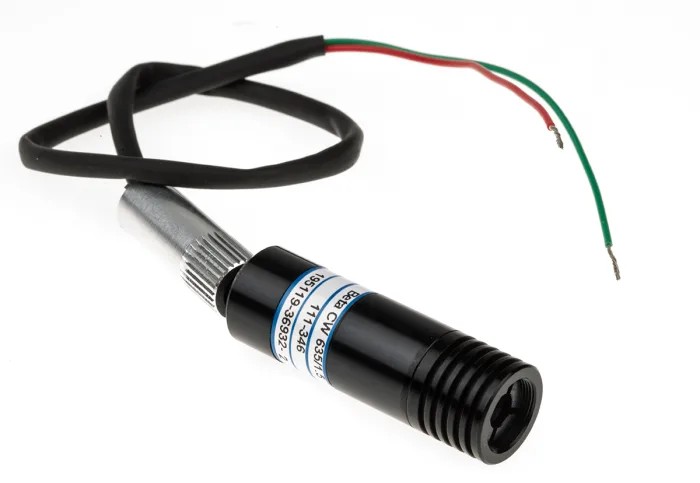

Global Laser 1068-40-000 is a Continuous Wave laser module featuring a 633 nm red laser wavelength and an optical output power of 1.5 mW. The module includes advanced TTL control, enabling precise modulation suitable for high-accuracy applications. It is engineered with an ellipse emission pattern and an adjustable collimating lens to focus the laser beam efficiently. The device operates on a power supply between 4.5 V and 5.5 V and has a compact, black powder coated brass body with a length of 46 mm and a diameter of 15.25 mm, offering robustness and electrical isolation.

This laser module is designed for various industrial and laboratory applications including alignment, position sensing, and targeting, where a stable and visible laser beam is critical. The 633 nm wavelength offers enhanced brightness, being eight times brighter than typical 670 nm modules, making it highly effective for visibility-demanding tasks.

Operating within a temperature range of -10°C to 50°C and classified under laser safety class 3R, this unit assures reliable and safe operation. The Beta CW series construction incorporates both the laser diode and driver circuitry in a single integrated module, ensuring performance and ease of integration.

The adjustable lens allows customization of the visible laser spot size, making it suitable for a wide variety of precise industrial and commercial applications. These include use in manufacturing process alignment, material processing controls, and scientific instrumentation.

Operates at 633 nm wavelength with 1.5 mW optical output power. Compact brass housing with dimensions 46 mm length and 15.25 mm diameter. Adjustable focusing lens for beam size control. Wide operating temperature range from -10°C to 50°C.

TTL control type for modulation and laser emission management. Ellipse emission pattern optimized for precise targeting. Complies with laser safety class 3R. Operates between 4.5 V minimum and 5.5 V maximum supply voltage.

This high-quality laser module is manufactured in the United Kingdom, reflecting stringent quality and performance standards. Its design and features make it suitable for various industrial, laboratory, scientific, manufacturing, and optical applications requiring visible laser sources.
