Global Laser 16° Fan Angle Line Shape Plano Convex Cylindrical Laser Lens Exit Aperture 5.5 mm 1125-500-000

Global Laser 1125-500-000 is a high precision 16° fan angle line shape plano convex cylindrical laser lens designed for industrial and laboratory laser applications.

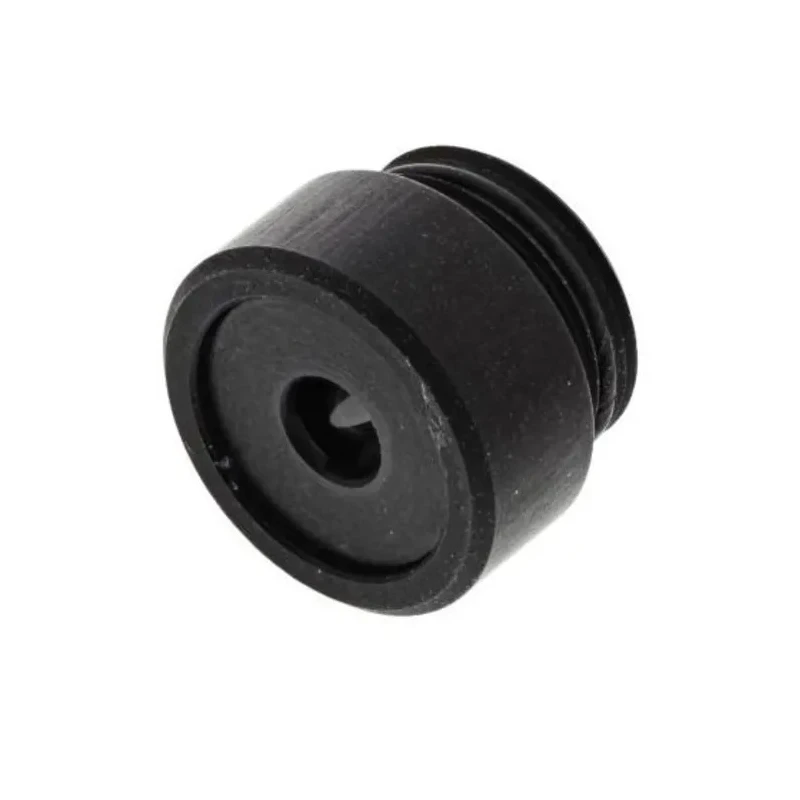

This lens features a 5.5 mm exit aperture and a cross lens composed of a moulded acrylic multi-rod lens element fitted within an 11 mm diameter lens holder. Its design facilitates simple interchangeability by screwing on and off the front of compatible M9 threaded laser modules with appropriate collimators.

Constructed using used acrylic lens material, the lens is optimized for producing line-shaped laser beams with excellent uniformity and focus. Manufactured under ISO 9001 standards in the United Kingdom, this component certifies adherence to quality management and consistent performance.

The 16° fan angle allows for precise beam shaping needed in laser scanning, cutting, or marking systems within industrial manufacturing, electronics, and scientific research environments.

The lens type is plano convex cylindrical, specifically tailored for line beam emission shaping. The compact 11 mm diameter holder and 5.5 mm exit aperture permit integration into various laser modules. It is designed for ease of replacement and maintenance in modular laser equipment setups.

Used acrylic as lens material offers stable optical characteristics for precise laser applications. ISO 9001 certification reflects rigorous quality and production standards.

This laser lens is ideally suited for integration into Laser Modules for applications including industrial cutting, laboratory laser setups, display technologies, and precision instrumentation.

For additional ranges and alternatives, users can refer to the complete set of laser lenses compatible with M9 threaded modules, ensuring the best components are selected for specific technical requirements.
