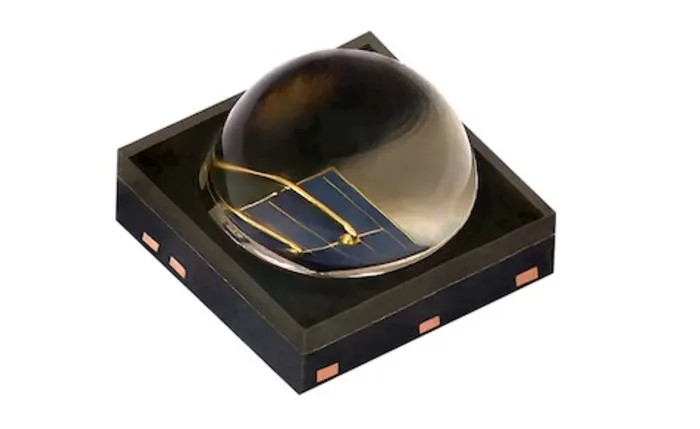

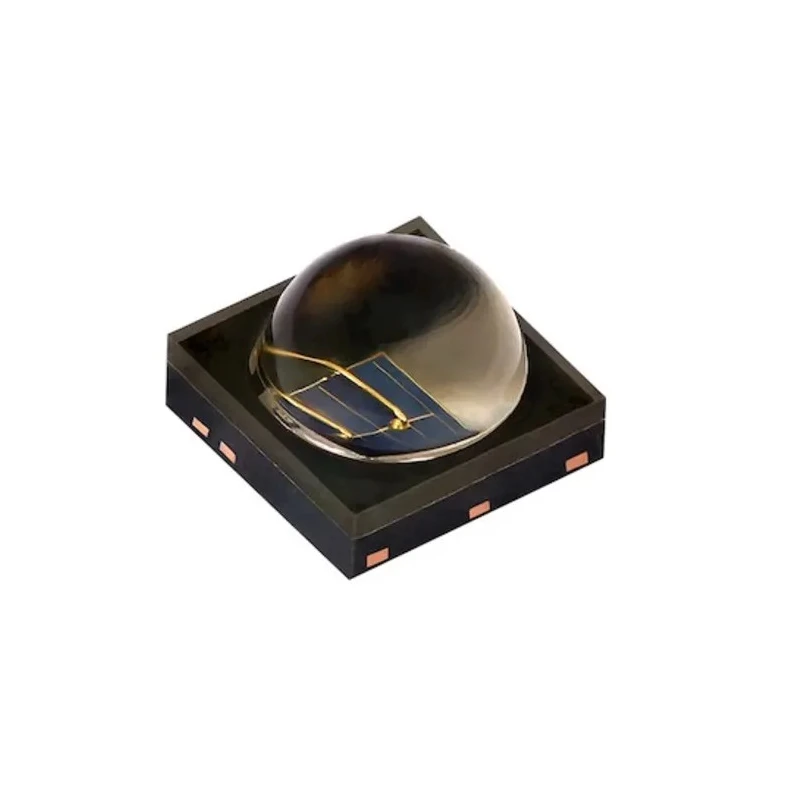

Vishay High Power Infrared Emitting Diode Surface Mount 950 nm Peak Wavelength VSMA1094400

The Vishay VSMA1094400 high power infrared emitting diode is designed for industrial and commercial electronics requiring reliable and powerful IR light sources. Operating at a peak wavelength of 950 nm, this diode utilizes a 42 mil double stack emitter chip optimized for surface mount applications. Thanks to its robust chip design, it supports continuous DC currents of up to 1.5 A and pulsed currents as high as 5.0 A, delivering exceptional radiant power output.

Its compact size of 3.4 mm length, 3.4 mm width, and 2.45 mm height makes it suitable for densely packed PCBs in sectors including industrial automation, sensing, and communication. The device's radiant flux is rated at 2100 mW with an intensity of 1225 mW per steradian, providing a strong infrared emission ideal for remote control systems, proximity sensors, and data transmission applications.

The diode’s angle of half intensity of ±40° allows for a focused beam with effective coverage area, and it offers low thermal resistance between 6 K/W and 9 K/W ensuring efficient heat management during operation. Built-in electrostatic discharge (ESD) protection up to 5 kV adheres to ANSI/ESDA/JEDEC JS-001 standards, enhancing its durability in demanding environments.

Rated for a maximum supply voltage of 5 V, the component is compliant with lead-free soldering processes and packaged in tape and reel for ease of automated manufacturing. Further reliability is provided by a floor life of 168 hours under Moisture Sensitivity Level 3 (MSL 3), based on J-STD-020 standards.

High power IR diode at 950 nm peak wavelength offers powerful emission. Double stack emitter chip ensures high radiant flux and intensity. Compact surface mount package measuring 3.4 x 3.4 x 2.45 mm. Supports continuous 1.5 A DC and pulsed currents up to 5 A.

±40° half intensity angle suitable for focused IR beams. Low thermal resistance of 6 K/W to 9 K/W for efficient heat dissipation. ESD protection up to 5 kV meets ANSI/ESDA/JEDEC JS-001. Lead-free, tape and reel packaging supports automated PCB assembly.

Floor life of 168 hours per MSL 3/J-STD-020 enhances practical usability.

This Vishay Infrared LED is applicable in electronic industrial devices, telecommunications, sensing, and data communication equipment. Its robust design and certification compliance guarantee long-term performance in manufacturing, laboratory, and commercial environments. Browse our full range of Vishay IR LEDs at EnvMart for seamless integration into your next project.
