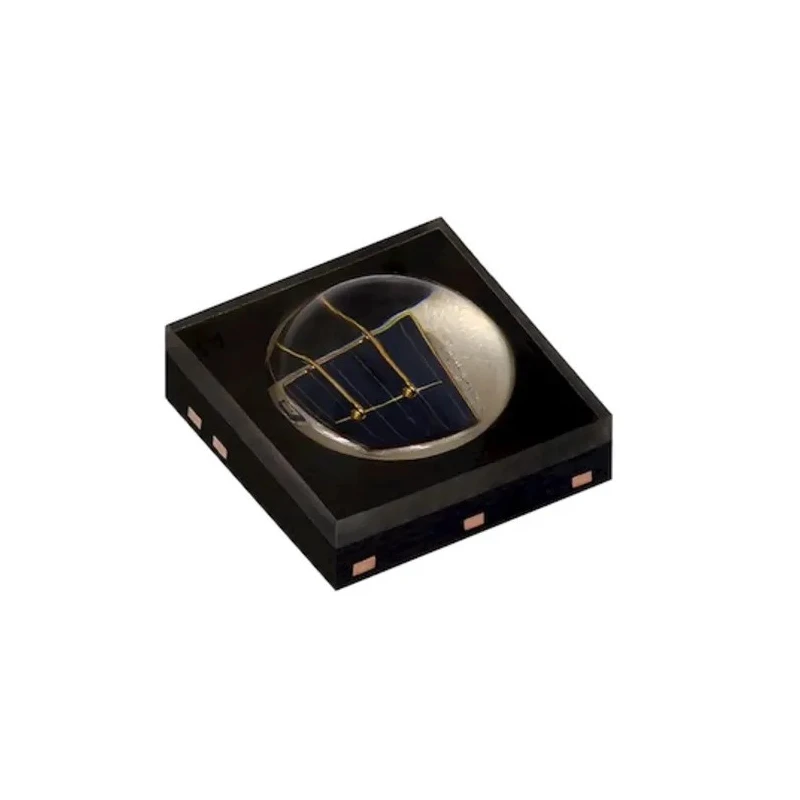

Vishay High Power Infrared Emitting Diode Surface Mount 950 nm VSMA1094600
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 3.4 x 3.4 x 1.8 mm |
| Model | VSMA1094600 |
| Packaging | SMD |
| Mount Type | Surface |
| Series | VSMA1094600 |
| Package Type | Surface Mount |
| Peak Wavelength | 950nm |
| Radiant Flux | 2100mW |
| Radiant Intensity | 670mW/sr |
| Floor Life | 168 hours |
Key Features
- Designed for high power infrared emission at 950 nm wavelength.
- Features a double stack emitter chip for superior radiant power.
- Allows up to 1.5 A DC operation and supports pulsed currents up to 5.0 A.
- Comes in a surface mount SMD package with lens for enhanced performance.
- Radiant flux rated at 2100 mW for high efficiency applications.
- Radiant intensity specified at 670 mW/sr.
- Low thermal resistance, with floor life of up to 168 hours (MSL 3).
- ESD protection up to 5 kV according to ANSI/ESDA/JEDEC JS-001.
Product Description
Vishay VSMA1094600 is a high power infrared emitting diode, engineered to deliver peak performance in demanding industrial and electronic applications. With its surface mount SMD package and integrated lens design, this device achieves exceptional radiant output, making it ideal for infrared transmission systems requiring reliability and intensity.
Operating at a peak wavelength of 950 nm, the VSMA1094600 utilizes a double stack emitter chip for increased efficiency and radiant power. Its robust design supports continuous currents up to 1.5 A and pulsed operation up to 5.0 A, enabling high powered LED setups for sensing, communication, and optoelectronic systems.
The diode provides radiant flux of 2100 mW and radiant intensity of 670 mW/sr, ensuring strong signal quality and transmission range. With a low thermal resistance of 6 K/W to JSP, this model remains cool and stable during high duty cycles.
Packaging details include a compact SMD form factor with lens, measuring 3.4 x 3.4 x 1.8 mm (LxWxH), suitable for automated assembly and integration into advanced PCB designs. The device offers a floor life of 168 hours (MSL 3) per J-STD-020 and ESD immunity up to 5 kV to ANSI/ESDA/JEDEC JS-001 standards.
Designed for high power infrared emission at 950 nm wavelength. Double stack emitter chip architecture for maximum radiant output. Surface mount SMD package with integrated lens, optimized for PCB designs. Radiant flux of 2100 mW and radiant intensity of 670 mW/sr for demanding optoelectronic applications.
Supports continuous 1.5 A DC and pulse currents up to 5.0 A. Low thermal resistance and extended floor life. Electrostatic discharge protection up to 5 kV. Reliably used in industrial sensors, IR communication, laboratory instruments, and automation systems.
This product is suitable for industrial electronics, laboratory sensor setups, automated control and monitoring systems, and manufacturing environments demanding high reliability and performance from IR LEDs.
Explore more Infrared LED solutions and Vishay optoelectronic components in the EnvMart electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the VSMA1094600 is 950 nm.
The radiant flux rating for this model is 2100 mW, making it suitable for high efficiency applications.
The radiant intensity of this infrared emitting diode is specified at 670 mW/sr.
It supports continuous DC currents up to 1.5 A and pulsed currents up to 5.0 A.
The dimensions of this model are 3.4 x 3.4 x 1.8 mm (LxWxH).
This infrared LED comes in a surface mount SMD package with an integrated lens for enhanced performance.
The thermal resistance is low, rated at 6 K/W, which helps maintain stability during high duty cycles.
The floor life of this model is up to 168 hours, compliant with MSL 3 per J-STD-020.
It is designed for use in industrial sensors, IR communication, laboratory instruments, and automation systems.
This model offers ESD protection up to 5 kV according to ANSI/ESDA/JEDEC JS-001 standards.
This infrared LED utilizes a surface mount type, making it suitable for automated assembly.
The country of origin for this infrared emitting diode is India.
