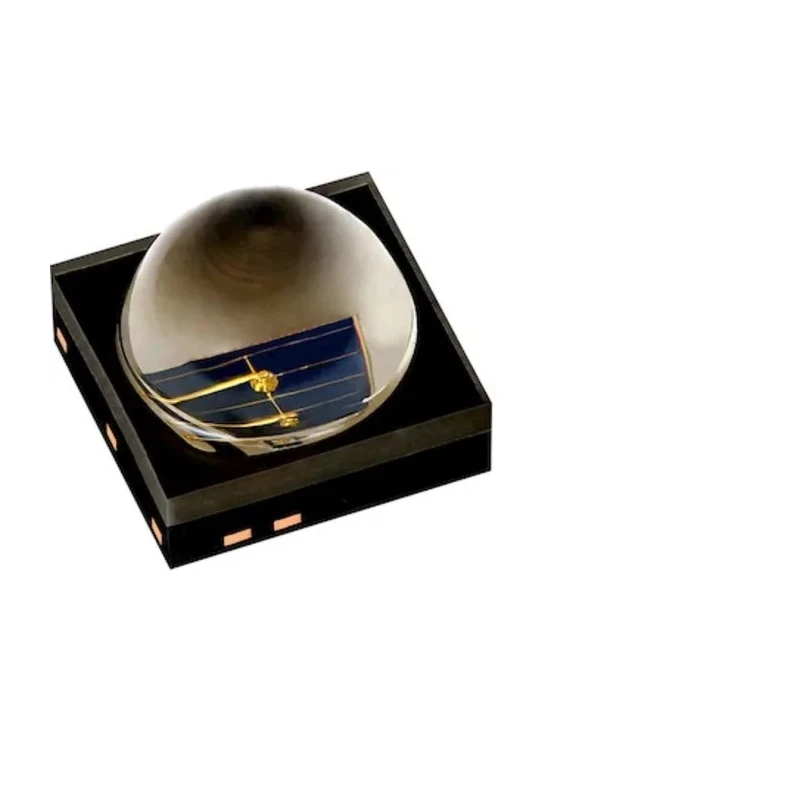

Vishay High Power Infrared Emitting Diode Surface Mount 860 nm, 2100 mW Radiant Flux, VSMA1085250
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1085250 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VSMA1085250 |
| Package Type | Surface Mount |
| Standards/Approvals | JEDEC JS-001, ANSI, ESDA |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 860nm |
| Radiant Flux | 2100mW |
| Angle of half intensity | 28° |
| Radiant Intensity | 1950mW/sr |
Key Features
- High power infrared emitter with 860 nm peak wavelength.
- Surface mount package for integration onto PCBs.
- Radiant Flux of 2100 mW and radiant intensity of 1950 mW/sr.
- Maximum supply voltage rated at 5 V.
- Features double stack emitter chip for enhanced radiant power.
- Low thermal resistance, suitable for high current operation up to 1.5 A DC.
- Complies with JEDEC JS-001, ANSI, ESDA standards, ESD up to 5 kV.
- Angle of half intensity ±28° for focused output.
Product Description
The Vishay VSMA1085250 is a high power infrared emitting diode engineered for demanding optoelectronic applications. Designed in a surface mount package, this component offers outstanding radiant power, making it ideal for industrial, laboratory, and commercial systems needing efficient IR emission.
With a peak wavelength of 860 nm, the VSMA1085250 delivers high-intensity infrared output, suitable for remote control transmission, optical sensors, data communication, and IR illumination. The radiant flux reaches 2100 mW, with radiant intensity up to 1950 mW/sr, supporting applications where focused infrared light and high power output are crucial.
The device incorporates a double stack emitter chip, optimizing performance and allowing continuous DC operation up to 1.5 A, and pulsed currents up to 5.0 A. Its low thermal resistance design ensures reliable performance under demanding thermal environments. The angle of half intensity is ±28°, providing a balanced spread for targeted emission.
High power infrared emission with 860 nm peak wavelength. Surface mount configuration enables easy PCB integration. 2100 mW radiant flux for industrial-grade performance. Maximum supply voltage 5 V; floor life 168 hours, MSL 3.
Low thermal resistance: 6 K/W < RthJSP < 9 K/W. ESD protection up to 5 kV according to ANSI/ESDA/JEDEC JS-001. Supplied on tape & reel packaging for manufacturing convenience. Angle of half intensity ±28° for optimal focus.
Ideal for integration into electronic circuits for sensing, data transmission, and environmental monitoring. Applications include industrial automation, laboratory instruments, security systems, and optoelectronics development.
The device meets JEDEC JS-001, ANSI, and ESDA standards, ensuring compliance and reliability for professional use. The surface mount package dimensions are 3.4 x 3.4 x 2.9 mm (L x W x H), facilitating compact system designs.
Browse more Vishay optoelectronic components and Infrared LEDs for diverse industrial and electronics sector requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this model is 860 nm.
The maximum supply voltage rated for the VSMA1085250 is 5 V.
It has a radiant flux of 2100 mW, making it suitable for high-power applications.
The radiant intensity of this model is 1950 mW/sr.
The angle of half intensity is ±28°, which provides a focused output.
This model is provided in a surface mount package, suitable for PCB integration.
It is supplied on tape and reel packaging for convenience in manufacturing processes.
The thermal resistance is low, ranging from 6 K/W to 9 K/W.
It complies with JEDEC JS-001, ANSI, and ESDA standards, ensuring reliability for professional use.
The VSMA1085250 can operate continuously at up to 1.5 A DC.
It is suitable for applications in industrial automation, laboratory instruments, and security systems.
The country of origin for this infrared emitting diode is India.
