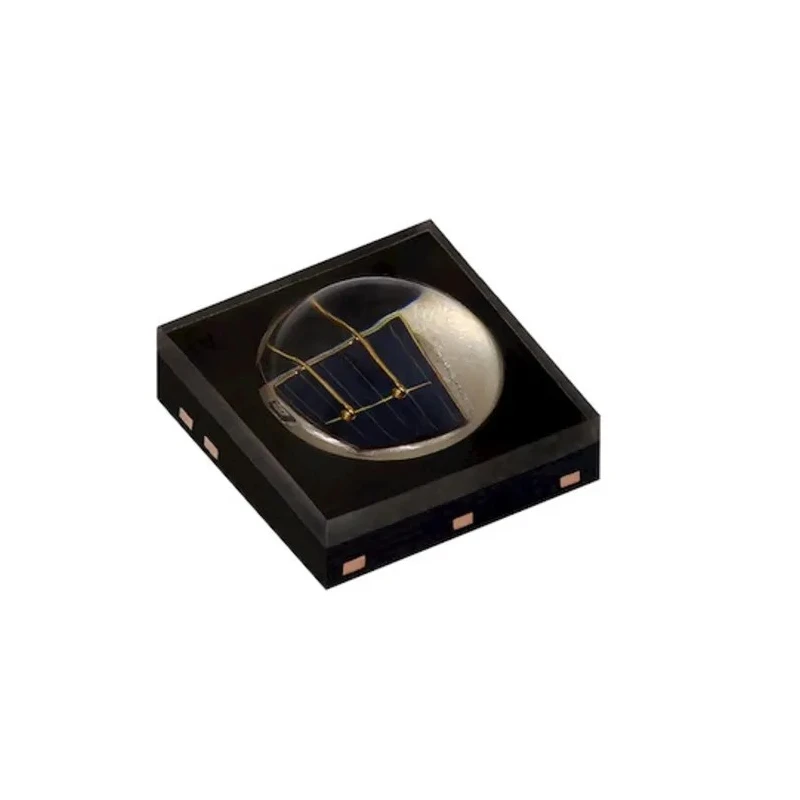

Vishay SurfLightTM High Power Infrared Emitting Diode Surface Mount 860 nm VSMA1085600

Vishay VSMA1085600 SurfLightTM High Power Infrared Emitting Diode is engineered for demanding industrial, commercial, and laboratory applications. The diode harnesses a peak wavelength of 860 nm, making it highly effective for infrared transmission, sensing, and remote control functions.

Designed in an efficient surface mount package, this component is ideal for automated PCB assembly lines and thrives in space-restricted layouts. The SurfLightTM series double stack emitter chip construction enables substantial radiant output, supporting up to 2100 mW of radiant flux and an impressive radiant intensity of 715 mW/sr.

The device handles maximum supply voltages of up to 5 V and is capable of handling continuous DC operation at 1.5 A, with pulsed currents up to 5.0 A. Its wide angle of half intensity (±60°) ensures broad IR coverage, suitable for applications in optoelectronic sensing, wireless communication, and data transmission.

Low thermal resistance features assist in maintaining performance during continuous operation. Surface mount configuration and tape & reel packaging support efficient production processes and ensure consistent quality in batch manufacturing.

Reliability is backed by compliance with industry standards including ANSI / ESDA / JEDEC JS-001 and J-STD-020 for ESD safety and thermal endurance. The diode is lead-free reflow soldering compatible and has a floor life of 168 hours, MSL 3, making it suited for rigorous electronic environments.

Operates at a peak wavelength of 860 nm for enhanced IR emission. Surface mount package suitable for automated assembly and compact designs. Maximum supply voltage of 5 V ensures compatibility with standard electronics. Provides radiant flux up to 2100 mW with high radiant intensity (715 mW/sr).

Wide angle of half intensity (±60°) supports broad coverage in sensing and communication. Double stack emitter chip offers high radiant power. Supports pulsed currents up to 5.0 A and DC operation at 1.5 A. Low thermal resistance for efficient heat management in continuous use.

Meets ANSI / ESDA / JEDEC JS-001, J-STD-020 standards for reliability and ESD protection.

Industrial uses include optoelectronic sensors, IR remote controls, machine vision, industrial automation systems, and laboratory measurement setups. Explore more Vishay optoelectronic components and Infrared LEDs in Electronics & Electricals at EnvMart.
