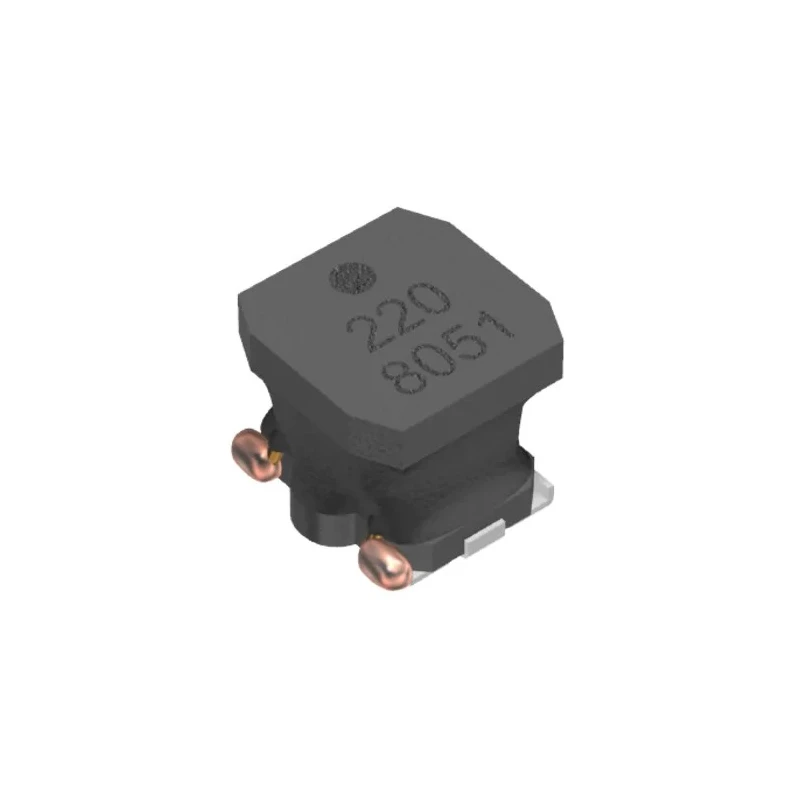

TDK Shielded Wirewound Surface Mount Inductor 2.2 μH ±30% 6.4 A DC Current, Ferrite Core, 5x4.5x5.3 mm VLS5045EX-2R2N-H
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 5mm |
| Model | VLS5045EX-2R2N-H |
| Depth | 5.3mm |
| Packaging | Tape & Reel |
| Series | VLS-EX-H |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 5045 |
| Maximum DC Current | 6.4A |
| Maximum DC Resistance | 28.6mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance tolerance of ±30% suitable for automotive power circuits.
- Maximum DC current rating of 6.4 A enables handling of high current loads.
- Constructed with a ferrite magnetic core for effective magnetic shielding.
- Compact 5mm length, 4.5mm height, and 5.3mm depth package size (5045 case).
- Complies with automotive standard AEC-Q200 for reliable performance in harsh environments.
- Operating temperature range from -40°C to 125°C for wide thermal stability.
- Tape & reel packaging supports automated surface mount assembly processes.
- Magnetic shield construction offers compatibility with high-density PCB mounting.
Product Description
TDK VLS5045EX-2R2N-H is a shielded wirewound surface mount inductor featuring a ferrite core and an inductance of 2.2 μH with ±30% tolerance, designed for demanding automotive and industrial power applications. It supports a maximum DC current of 6.4 A, making it suitable for use in electronic control modules, airbags, headlights, electronic power steering, meters, and airbag systems.
The compact 5045 case measures 5 mm in length, 4.5 mm in height, and 5.3 mm in depth, facilitating high-density mounting on PCBs. Its ferrite magnetic core ensures effective magnetic shielding, minimizing electromagnetic interference in the power circuit. The inductor meets the stringent automotive standard AEC-Q200, signifying high reliability for automotive electronics exposed to harsh conditions.
Operable across a wide temperature range from -40°C to 125°C, this inductor maintains stable performance in both extreme cold and high heat environments. The components come packaged in tape & reel format, compatible with automated surface mount technology assembly lines.
Inductance tolerance of ±30% suitable for automotive power circuits. Maximum DC current rating of 6.4 A enables handling of high current loads. Constructed with a ferrite magnetic core for effective magnetic shielding. Compact 5mm length, 4.5mm height, and 5.3mm depth package size (5045 case).
Complies with automotive standard AEC-Q200 for reliable performance in harsh environments. Operating temperature range from -40°C to 125°C for wide thermal stability. Magnetic shield construction offers compatibility with high-density PCB mounting.
Tape & reel packaging supports automated surface mount assembly processes.
This inductor is ideal for industrial, automotive, and electronic manufacturing sectors requiring magnetic shielding, compact component design, and high current capacity. Explore EnvMart's extensive inventory of electronic components for reliable power and signal integrity solutions.
Explore more products in our Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 μH with an inductance tolerance of ±30%.
It supports a maximum DC current rating of 6.4 A, making it suitable for handling high current loads.
This unit has a compact size with a length of 5 mm, height of 4.5 mm, and depth of 5.3 mm, conforming to the 5045 case package.
The inductor operates within a temperature range of -40°C to 125°C, ensuring stable performance in extreme conditions.
It is constructed with a ferrite core, which provides effective magnetic shielding.
The inductor is packaged in tape & reel format, which is compatible with automated surface mount assembly processes.
This model complies with the AEC-Q200 automotive standard, indicating its reliability for automotive applications.
The maximum DC resistance is 28.6 mΩ, contributing to its efficiency in power circuits.
It features a shielded construction, which minimizes electromagnetic interference in power circuits.
The series designation for this model is VLS-EX-H, indicating its specific product line within TDK's offerings.
Yes, this inductor complies with RoHS standards, ensuring it meets environmental regulations.
