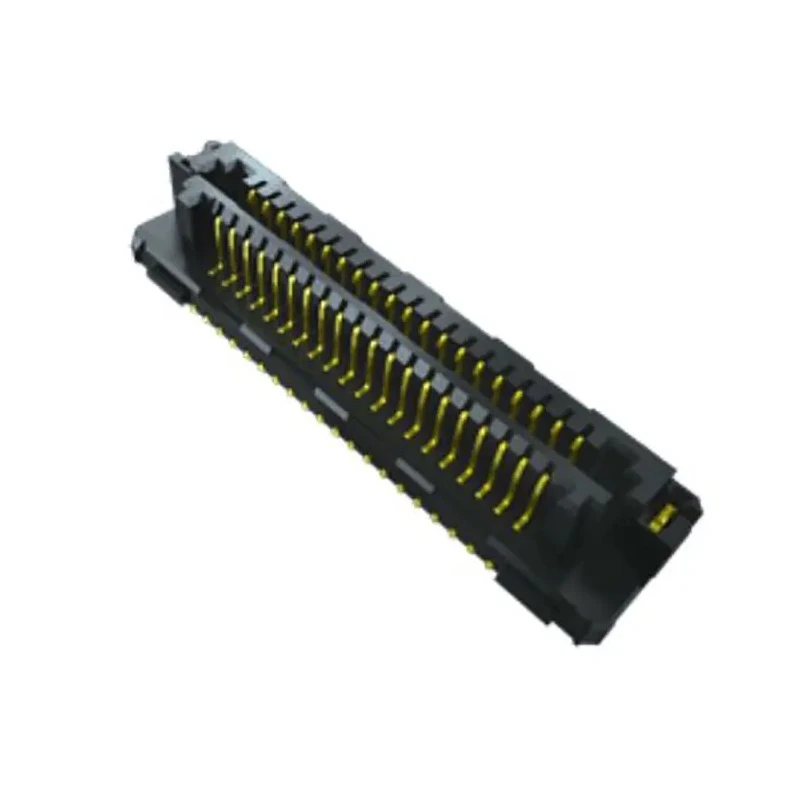

Samtec Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-03.0-F-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-03.0-F-DV-A-N-K-TR

Name: Samtec Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded LSEM-120-03.0-F-DV-A-N-K-TR
Brand: Samtec
SKU: 167281
Price: 7.45 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	225, 318V ac
Brand	Samtec
Orientation	Vertical
Current	1.8A
Model	LSEM-120-03.0-F-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSEM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with liquid crystal polymer housing for durability.
Phosphor bronze contacts plated with gold for optimal conductivity.
Supports a current rating of 1.8 A per pin.
Designed for vertical surface mount with board-to-board connector system.
Operates reliably between -55°C and 125°C temperatures.
Uses solder termination type with male contact gender.
Suitable for high-speed signal applications requiring 0.8 mm pitch spacing.

Product Description

Samtec LSEM-120-03.0-F-DV-A-N-K-TR is a vertical surface mount PCB header designed for high-speed board-to-board connectivity. It features 40 gold-plated phosphor bronze contacts with a 0.8 mm pitch spaced across two rows, housed in a robust liquid crystal polymer shrouded body for protection and reliable insertion.

This connector supports a current rating of 1.8 A per pin and operates over a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial, electronic manufacturing, and laboratory applications where directional connections on printed circuit boards are required.

The termination type is solder, ensuring secure mechanical and electrical connection to PCB pads. The male gender contacts suit a variety of mating connectors in board-to-board connection systems, optimized for compact and precise installations where vertical orientation saves space.

These headers comply with no specific standards or approvals but possess high-quality contact materials and plating to assure performance and durability. They accommodate voltage ratings of 225 to 318 volts AC, supporting electrical and electronic equipment usage.

Applications include industrial automation, communication devices, instrumentation, and other electronic component assemblies needing reliable, high-density PCB connectors. Constructed with liquid crystal polymer housing for durability.

Phosphor bronze contacts plated with gold for optimal conductivity. Supports a current rating of 1.8 A per pin. Designed for vertical surface mount with board-to-board connector system. Operates reliably between -55°C and 125°C temperatures.

Uses solder termination type with male contact gender. Suitable for high-speed signal applications requiring 0.8 mm pitch spacing. Voltage rating up to 318V AC for industrial use. Explore more in the PCB Header category at EnvMart for advanced electronic connectors and components suitable for industrial and laboratory uses.
