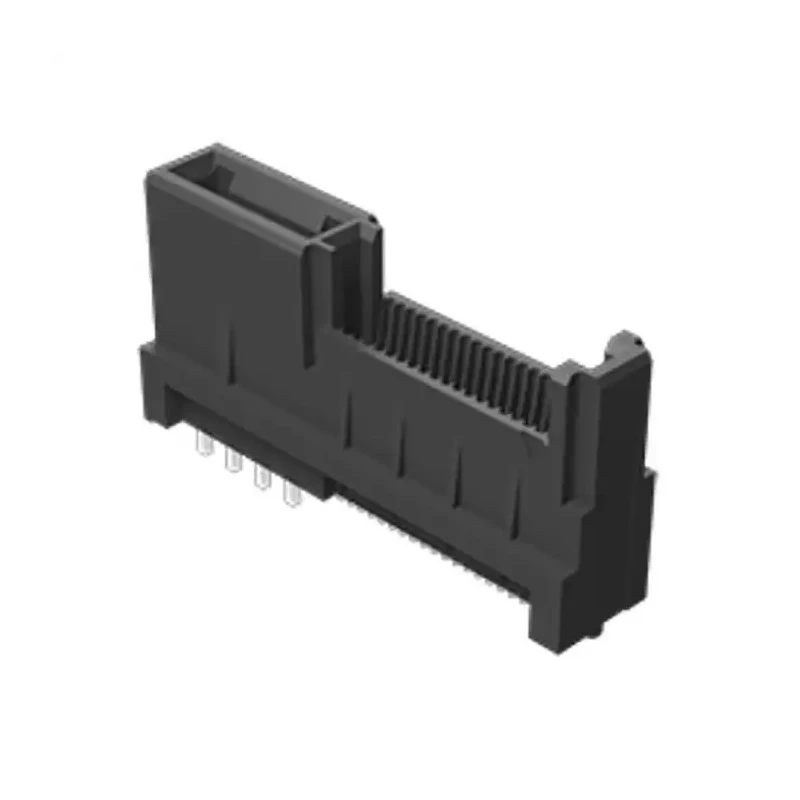

Samtec Right Angle Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-120-01-L-RA

Free Delivery in India | Lowest Global Shipping Charges

Samtec Right Angle Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-120-01-L-RA

Name: Samtec Right Angle Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-120-01-L-RA
Brand: Samtec
SKU: 167268
Price: 5.73 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	240V
Brand	Samtec
Orientation	Right Angle
Current	2.6A
Model	HSEC8-120-01-L-RA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HSEC8-120-01-L-RA
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Card Slot	.062" (1.60 mm)
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector Gender	Female
Card Type	PCIe
Card Thickness	1.6mm

Key Features

The connector features a right angle orientation suitable for compact electronic assemblies.
It has 40 contacts arranged in 2 rows, supporting a current rating of 2.6A.
The contact plating is gold on beryllium copper alloy contacts for reliable signal transmission.
Mount type is surface mount with solder termination for PCB integration.
Operating temperature range from -55°C to 125°C ensures durability in harsh environments.
The housing is made of liquid crystal polymer providing high thermal resistance.
Designed for 1.6 mm card thickness with a card slot of 0.062 inch (1.60 mm).
Series HSEC8-120-01-L-RA offers extended life product (E.L.P.) technology for reliability.

Product Description

Samtec HSEC8-120-01-L-RA is a high-performance right angle edge connector female designed for surface mounting on printed circuit boards. This connector is part of Samtec's HSEC8 series, featuring a 0.8 mm pitch and 40 contacts arranged in 2 rows, making it suitable for PCIe card connections and high-speed digital applications.

The gold-plated beryllium copper contacts provide excellent conductivity and corrosion resistance, while the liquid crystal polymer housing ensures mechanical stability and thermal endurance up to 125°C. The connector supports a continuous current of 2.6A and voltage rating of 240V, enabling its use in various electronic and industrial equipment.

Operating reliably in temperatures ranging from -55°C to 125°C, this connector is durable under extreme environmental conditions. It includes features such as an optional weld tab for enhanced mechanical strength and optional board locks and cable latching for secure assembly.

The card slot fits a card thickness of 1.6 mm (.062 inch), ensuring compatibility with standard PCIe cards, and its surface mount termination type uses soldering to provide stable PCB attachment. This product is compliant with typical industrial standards though no specific approvals are indicated.

The connector has a rugged Edge Rate® contact system enabling high-speed, single-ended and differential pair connections. It supports pass-through options for more flexible PCB layouts. The series offers extended life product (E.L.P.™) benefits ensuring prolonged operational lifespan.

Its compact right angle design aids miniaturization in electronics designs.

This Samtec HSEC8-120-01-L-RA Edge Connector is ideal for industrial, computing, and telecommunications equipment requiring high reliability and performance connectivity solutions.
