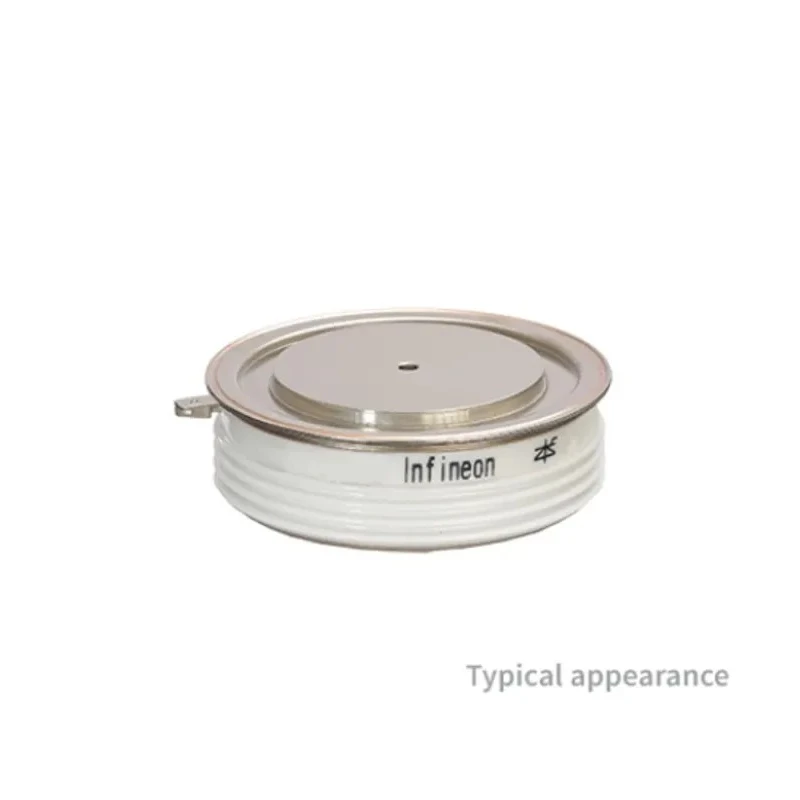

Infineon Thyristor 1600 V, 1810 A, 250 mA Gate Trigger Current, 30.7 kA Surge Rating, TO-200 Package T1900N16TOFVTXPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | T1900N16TOFVTXPSA1 |
| Series | T1900N |
| Maximum Operating Temperature | 135°C |
| Package Type | TO-200 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Rated Average On-State Current Irms | 1810A |
| Thyristor Type | PCT |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 30.7kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 500mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.1V |
Key Features
- Phase control thyristor optimized for UPS-Bypass and high current capacity applications.
- Equipped with TO-200 industrial standard package ensuring robust and sealed ceramic housing.
- Supports a surge current rating of 30.7 kA for high overload conditions.
- Gate trigger current of 250 mA and gate trigger voltage up to 2 V enable controlled switching.
- Operates reliably in ambient temperatures from -40°C to 135°C for industrial environments.
- Pin count of 4 facilitates electrical connections in power control circuits.
- Maximum holding current of 500 mA ensures safe operation in power electronics.
- Peak on-state voltage of 1.1 V minimizes conduction losses.
Product Description
Infineon's T1900N16TOFVTXPSA1 is a high-power thyristor designed for demanding industrial applications requiring reliable phase control switching. It features a repetitive peak reverse voltage of 1600 V and a rated average on-state current Irms of 1810 A, making it suitable for high current capacities.
The device is packaged in a TO-200 hermetic ceramic housing measuring 75 mm diameter and 26 mm height, providing a robust and sealed construction that withstands harsh operating environments. This thyristor excels in UPS-Bypass circuits and other power control systems demanding high surge current capability, with a surge current rating of 30.7 kA.
The maximum gate trigger current is 250 mA with a corresponding maximum gate trigger voltage of 2 V, allowing precise gate triggering control. The device operates safely between temperatures of -40°C and 135°C, demonstrating its suitability for a broad range of industrial temperature conditions.
Phase Control Thyristor with high surge current capability. Robust TO-200 ceramic package ensures durability. Optimized for UPS-Bypass and power electronics applications. Repetitive peak reverse voltage of 1600 V supports high voltage applications.
Rated average on-state current of 1810 A for heavy-duty switching. Maximum gate trigger current of 250 mA and voltage of 2 V enable efficient switching. Operating temperature range from -40°C to 135°C allows use in varied industrial environments.
Pin count of 4 simplifies integration in power circuits. Compact and reliable package design for long service life.
This thyristor is primarily targeted for industrial, power electronics, and manufacturing applications needing high current and voltage switching devices. It is not intended for automotive standards compliance.
EnvMart offers this Infineon T1900N16TOFVTXPSA1 Thyristor as a new condition product with high reliability and robust build quality. This component is ideal for engineers and industrial technicians seeking a robust thyristor for demanding power control tasks.
Explore more products in the Thyristors category at EnvMart for comprehensive solutions in semiconductor discrete components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage for this model is 1600 V.
The rated average on-state current (Irms) is 1810 A.
It has a surge current rating of 30.7 kA, suitable for high overload conditions.
The maximum gate trigger current is 250 mA, with a maximum gate trigger voltage of 2 V.
It operates reliably in ambient temperatures ranging from -40°C to 135°C.
This model is packaged in a TO-200 hermetic ceramic housing.
It features a pin count of 4, facilitating electrical connections in power control circuits.
The peak on-state voltage is 1.1 V, which helps minimize conduction losses.
It is optimized for UPS-Bypass and high current capacity applications in power control systems.
The maximum holding current is 500 mA, ensuring safe operation in power electronics.
This thyristor is classified as a Phase Control Thyristor (PCT).
The country of origin for this product is India.
