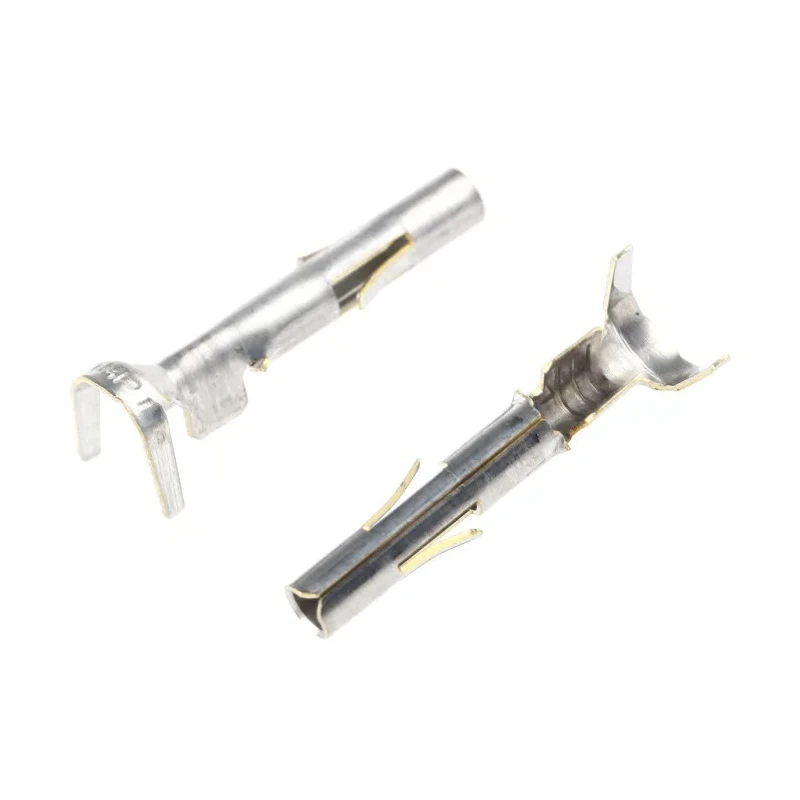

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal 20 AWG Min Crimp, 14 AWG Max 350551-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Length | 20.83mm |
| Model | 350551-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 6mΩ |
| Contact Orientation | Straight |
| Connector & Contact Terminates To | Wire & Cable |
Key Features
- Constructed with brass contact material and tin plating for reliable conductivity.
- Supports a maximum current of 19 amperes.
- Suitable for use with Universal MATE-N-LOK connector housings.
- Measures 20.83 mm in length with straight contact orientation.
- Operates effectively within a temperature range of -55°C to 105°C.
- Designed for crimp termination to wire and cable for secure connections.
- Maximum contact resistance of 6 milliohms ensures minimal electrical loss.
- Ideal for consumer electronics, HVAC, commercial, and power supply applications.
Product Description
TE Connectivity 350551-1 Universal MATE-N-LOK Series Female Crimp Terminal is a high-quality electrical connector contact designed for precise and reliable wire terminations. Manufactured with brass and finished with tin plating, it offers excellent conductivity and corrosion resistance.
This Crimp Terminal supports wire sizes ranging from 20 AWG (minimum) to 14 AWG (maximum), catering to diverse electrical applications. It is rated for a current capacity of 19A and can operate reliably within a wide temperature range from -55°C to 105°C, making it suitable for use in demanding environments.
The terminal features a straight contact orientation, measuring 20.83 mm in length, allowing for streamlined insertion into Universal MATE-N-LOK connector housings. It is designed specifically for crimp termination to wire and cable, ensuring a secure mechanical and electrical connection.
Its low maximum contact resistance of 6 milliohms minimizes signal loss and power dissipation, guaranteeing efficient circuit performance. These contacts are commonly utilized in consumer electronics, HVAC systems, commercial electrical equipment, and power supply units, where dependable and robust connections are critical.
Constructed with brass contact material and tin plating for reliable conductivity. Supports a maximum current of 19 amperes. Compatible with Universal MATE-N-LOK connector housings. Length of 20.83 mm with straight contact orientation for effective connectivity.
Operates within -55°C to 105°C temperature range for versatile usage. Crimp termination type ensures secure wire connections. Maximum contact resistance of 6 milliohms for minimal electrical loss. Suitable for consumer electronics, HVAC, commercial, and power supply applications.
TE Connectivity’s Universal MATE-N-LOK Contacts provide a cost-effective and reliable method for grouping multiple connections in industrial and commercial equipment. These contacts enhance assembly efficiency and electrical performance in critical circuitry.
Explore more specialized connectors and terminals in the Electronics Components category at EnvMart for comprehensive solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this crimp terminal is 19 amperes.
This terminal supports wire sizes ranging from 20 AWG (minimum) to 14 AWG (maximum).
The length of this terminal is 20.83 mm.
It operates effectively within a temperature range of -55°C to 105°C.
The contact material is brass, finished with tin plating for reliable conductivity.
The maximum contact resistance is 6 milliohms, ensuring minimal electrical loss.
This terminal uses crimp termination to secure connections to wire and cable.
Yes, it is designed for use with Universal MATE-N-LOK connector housings.
It is suitable for consumer electronics, HVAC systems, commercial electrical equipment, and power supply applications.
The contact orientation of this terminal is straight.
The country of origin for this crimp terminal is India.
This crimp terminal belongs to the Universal MATE-N-LOK series.
