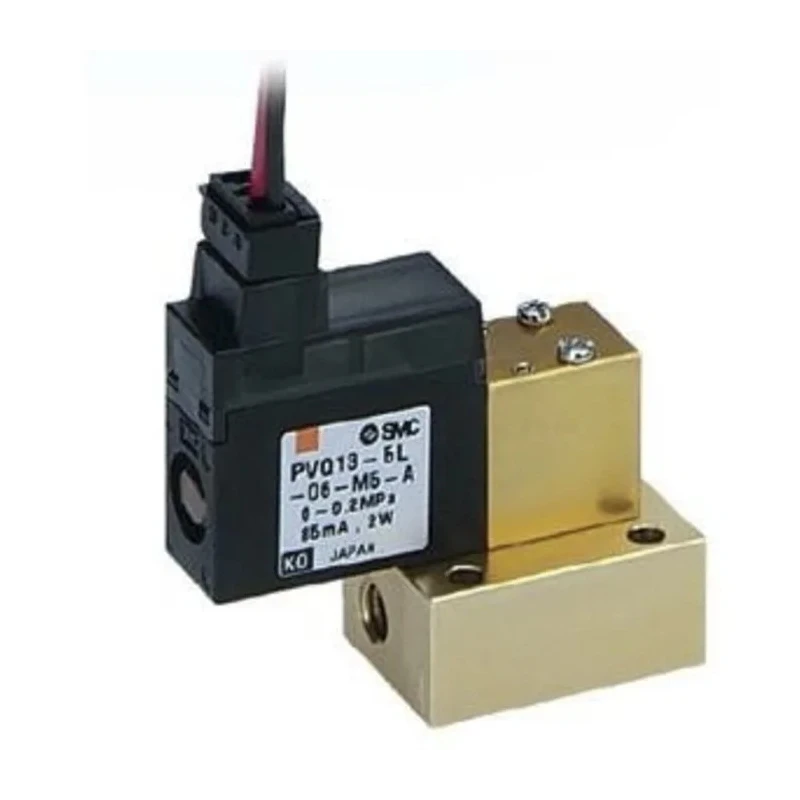

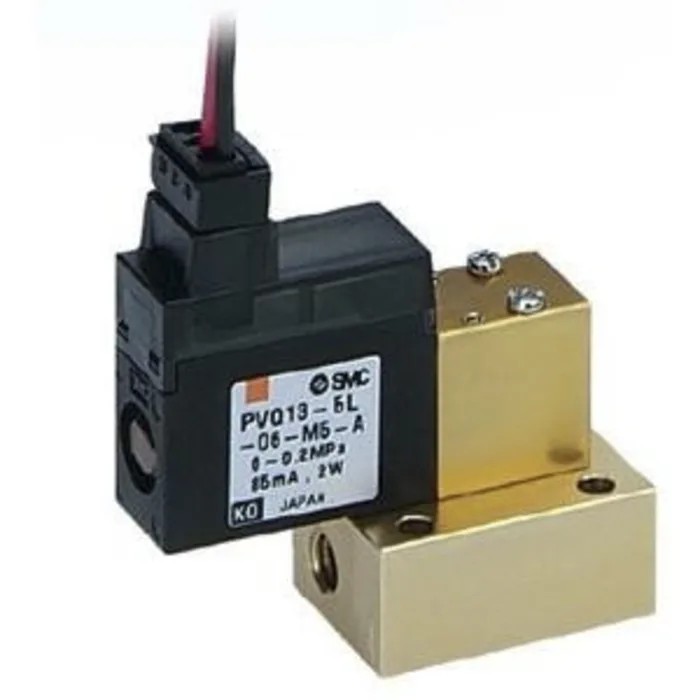

SMC Proportional Control Valve NC Solenoid 24V DC 0.8 mm Port M5 x 0.8 PVQ13-5L-03-M5-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Proportional Control Valve NC Solenoid 24V DC 0.8 mm Port M5 x 0.8 PVQ13-5L-03-M5-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	1 Mpa
Height	36.6mm
Length	38.1mm
Model	PVQ13-5L-03-M5-A
Width	16mm
Mount Type	Base
Series	PVQ10
Number Of Ports	2
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	0.8 mm
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	5L/min
Standards/Approvals	RoHS, CE
Connection Thread Standard	M5 x 0.8
Minimum Pilot Pressure	0MPa
Valve Function	NC
Electrical Connection Type	L-Plug Connector
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	2W

Key Features

The valve uses a base mount design with brass body construction for durability.
It has an M5 x 0.8 female connection thread port size of 0.8 mm.
Operates at maximum pressure of 1 MPa and maximum temperature of 50°C.
Solenoid power consumption is low at just 2W for energy-efficient operation.
Suitable for air-blow manufacturing, medical device blood pressure regulation, vacuum chamber flow control, and pneumatic system air management.
Features direct poppet operation with minimal hysteresis for accurate flow control.
Electrical connection is via an L-plug connector and the valve has 2 positions.
The compact dimensions are approximately 38.1 mm length, 36.6 mm height, and 16 mm width.

Product Description

SMC PVQ13-5L-03-M5-A proportional control valve is a heavy-duty pneumatic valve engineered for precision fluid regulation in industrial automation and fluid power applications. This normally closed valve operates with a 24V DC solenoid and features a base mount configuration.

The valve has a 0.8 mm port size with female M5 x 0.8 threaded connections, enabling secure integration into pneumatic circuits. Constructed with a robust brass body, it delivers high durability and wear resistance suitable for demanding environments.

Designed for efficient energy consumption, the valve operates at a low power draw of 2 watts, ensuring minimal energy costs. It supports a maximum operating pressure of 1 MPa and functions reliably within a temperature range up to 50°C.

With direct poppet valve construction, the device achieves smooth, precise flow control while maintaining a minimal hysteresis of 10% or less. This enables accurate pressure regulation and repeatable performance in processes requiring fine control. The valve also features 2 operational positions and an L-plug electrical connection for easy installation.

Typical applications include air-blow operations in manufacturing lines, precise blood pressure control in medical instrumentation, vacuum chamber flow regulation, and managing air supply and exhaust in pneumatic systems. Its compact size allows use in restricted spaces while retaining excellent performance.

The valve has a durable brass body for longevity. Operates at 24 V DC solenoid voltage with low 2W power. Offers precise control with minimal hysteresis for accuracy. Suitable for industrial, medical, vacuum chamber, and pneumatic use cases.

Compact dimensions support integration into tight assemblies.

This SMC proportional control valve is a premium solution designed in Japan, compliant with RoHS and CE standards, ensuring regulatory reliability. Its reliable performance and low power consumption make it ideal for modern automation systems.
