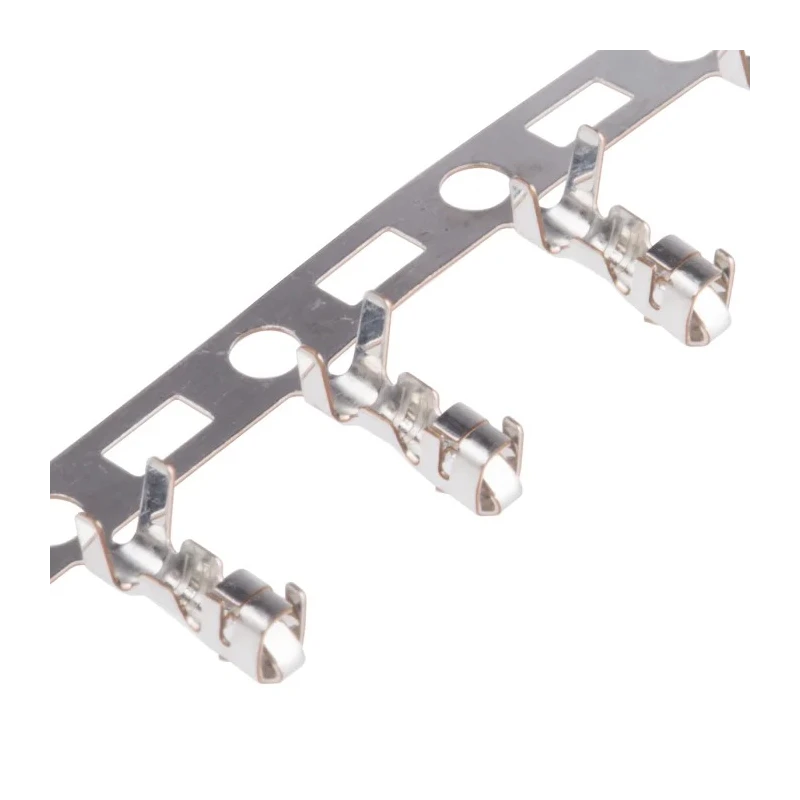

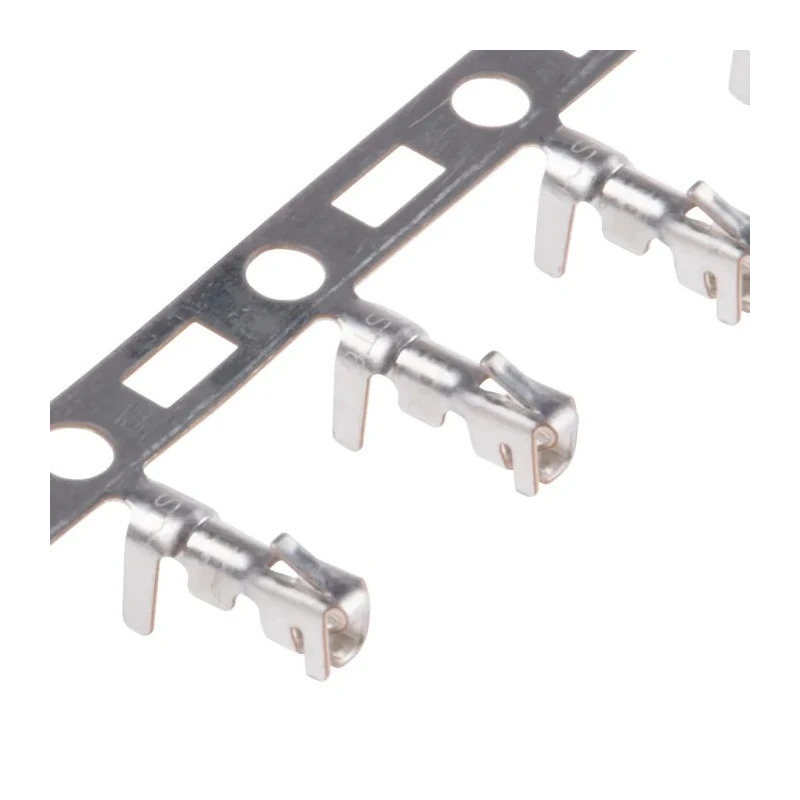

JST XH Series Female Crimp Terminal 3A Current 28 AWG Min Crimp, 22 AWG Max SXH-001T-P0.6

The JST SXH-001T-P0.6 is a high-quality female crimp terminal designed for use with XH series connector housings. Crafted from durable phosphor bronze and coated with tin plating, this terminal offers reliable electrical conductivity and excellent corrosion resistance suitable for demanding industrial and electronic applications.

Engineered for wire sizes ranging from 28 AWG (0.08 mm²) to 22 AWG (0.33 mm²), it supports a continuous current capacity of 3A, making it suitable for low to moderate power signal and control circuits. The crimp termination style ensures firm and stable wire connections, essential for maintaining signal integrity and mechanical reliability in assembled harnesses and PCB connections.

This crimp terminal is capable of withstanding operating temperatures between -25°C and 85°C, making it adaptable to various environmental conditions found in industrial, manufacturing, and electronic equipment installations.

With a maximum contact resistance of 20 milliohms, it provides efficient electrical conduction and minimal power loss. This product is manufactured in China with a focus on quality and durability, aligning with industry expectations for performance and longevity.

The JST XH Series Female Crimp Terminal SXH-001T-P0.6 is widely used in electronics manufacturing, telecommunications, instrumentation, and automation equipment where compact, reliable wire connections are essential.

Constructed from phosphor bronze material to ensure lasting integrity. Tin plating enhances corrosion resistance and electrical performance. Compatible with XH series connector housings for seamless integration. Supports wire gauge sizes from 28 AWG to 22 AWG for flexible application.

Crimp termination style offers secure and stable connections. Designed for operating temperatures ranging from -25°C to 85°C. Maximum contact resistance of 20 milliohms to maintain efficient conduction. Rated for a current capacity of 3A for low to medium power applications.
