Samtec EHF Series Straight Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded EHF-125-01-L-D-SM-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec EHF Series Straight Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded EHF-125-01-L-D-SM-P-TR

Name: Samtec EHF Series Straight Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded EHF-125-01-L-D-SM-P-TR
Brand: Samtec
SKU: 166462
Price: 12.46 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	EHF-125-01-L-D-SM-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHF
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold Flash
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Cable

Key Features

The header features a shrouded design for secure mating and an ejector latch for ease of use.
It employs phosphor bronze contacts plated with gold flash for excellent conductivity and corrosion resistance.
The housing is made from durable Liquid Crystal Polymer suitable for surface mount applications.
Operating temperature ranges from -55°C to 125°C, ensuring reliability in varied environments.
It is a straight orientation male contact header designed for precise solder termination.
Board-to-cable connector system facilitates versatile and efficient electronic connections.
Compliance with no specific standards; suitable for general PCB connector applications.
Polarizing notch included for accurate and secure mating of connectors.

Product Description

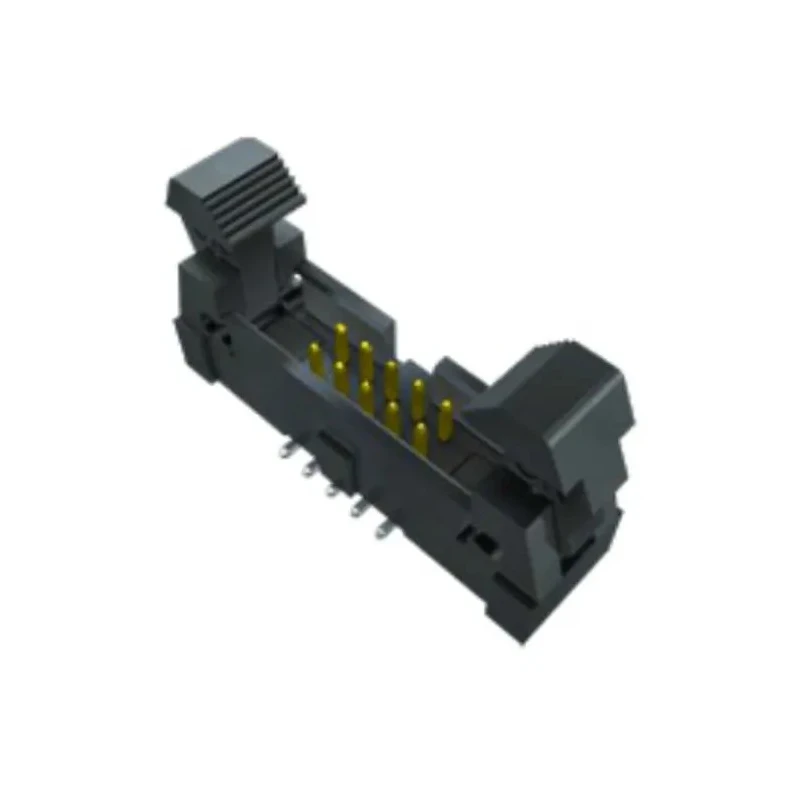

Samtec EHF-125-01-L-D-SM-P-TR is a Straight Surface PCB Header featuring 50 contacts arranged in 2 rows with a 1.27 mm pitch. This shrouded header is designed for board-to-cable connection systems and is optimized for surface mount technology (SMT) on printed circuit boards.

The housing material consists of Liquid Crystal Polymer, offering high mechanical strength and temperature resistance suitable for demanding industrial and manufacturing environments. Contacts are made from phosphor bronze with a gold flash plating to ensure excellent electrical conductivity and durability over long-term use.

The header is equipped with a polarizing notch and an ejector latch, enhancing secure and precise mating, reducing connector damage risks during assembly or disassembly. Its termination type is solder, with male contact gender and a straight orientation, making it suitable for diverse PCB designs and applications.

Operating temperature ranges from -55°C to +125°C, accommodating a wide array of electronic components and environmental conditions. This header does not carry specific standards or approvals but is designed for reliability in standard industrial electronics assembly and interconnect applications.

The header features a shrouded body for secure mating and an ejector latch for reliable locking. Phosphor bronze contacts with gold flash plating provide robust electrical performance. Liquid Crystal Polymer housing ensures mechanical durability and thermal stability.

Supports surface mount PCB installation with 1.27 mm pitch spacing. Includes polarizing notch for error-proof connector alignment. Male, straight orientation with solder termination for effective PCB connectivity. Operating temperature range from -55°C to 125°C suits diverse environments.

Suitable for industrial, laboratory, and electronics manufacturing applications. Ideal for use in board-to-cable interconnect systems requiring high contact counts.

Select Samtec PCB Headers for reliable and precise electronic component connections. Explore other PCB connectors and electronic components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
