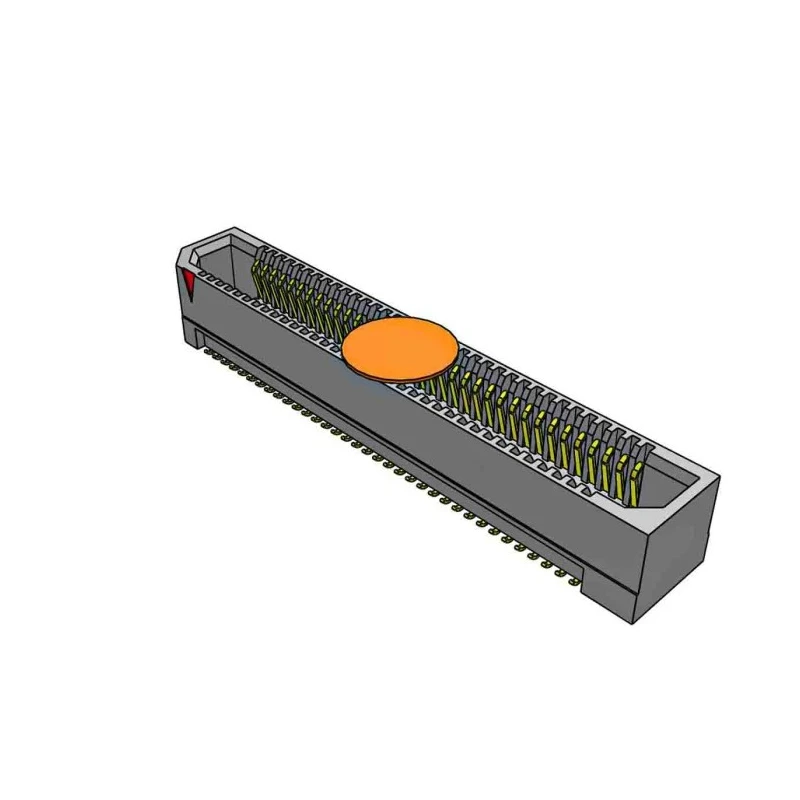

Samtec ASP Series Vertical Surface PCB Socket 70-Contact 2 Row 0.8 mm Pitch Solder ASP-135029-01

Samtec ASP-135029-01 is a high-quality PCB socket designed for vertical surface mounting applications. It features 70 contacts arranged in 2 rows with a fine 0.8 mm pitch, making it suitable for precise board-to-board connector systems.

The socket is constructed with a liquid crystal polymer housing that provides mechanical strength and thermal stability. Its solder termination type ensures a secure and reliable connection on the PCB surface.

This connector supports a maximum current of 2.7 amperes and a voltage rating of up to 339 volts, enabling robust electrical performance in demanding industrial environments. The operating temperature range from -55°C to 125°C guarantees reliable function under a wide range of thermal conditions.

Featuring female contacts made from beryllium copper alloy, this socket offers excellent conductivity and contact resilience. The stacking height of 10 mm and a row pitch of 1.27 mm aid in compact and efficient PCB layout designs.

Certified RoHS compliant, the ASP Series PCB Socket meets stringent environmental and safety standards. Typical industrial applications include electronics manufacturing, power distribution systems, and advanced PCB assembly in laboratory and commercial settings.

Designed for board-to-board connector systems with solder termination. Constructed with liquid crystal polymer housing for durability and thermal resistance. Operates at up to 2.7A and 339V for high electrical performance.

Wide operating temperature range from -55°C to 125°C. Female beryllium copper alloy contacts ensure reliable conductivity. Compact vertical surface mount form factor with 10 mm stacking height. Meets RoHS standards for environmental compliance.

Suitable for industrial, laboratory, and commercial PCB applications. Explore more PCB Sockets and connectors to enhance your electronics projects and industrial installations at EnvMart.
