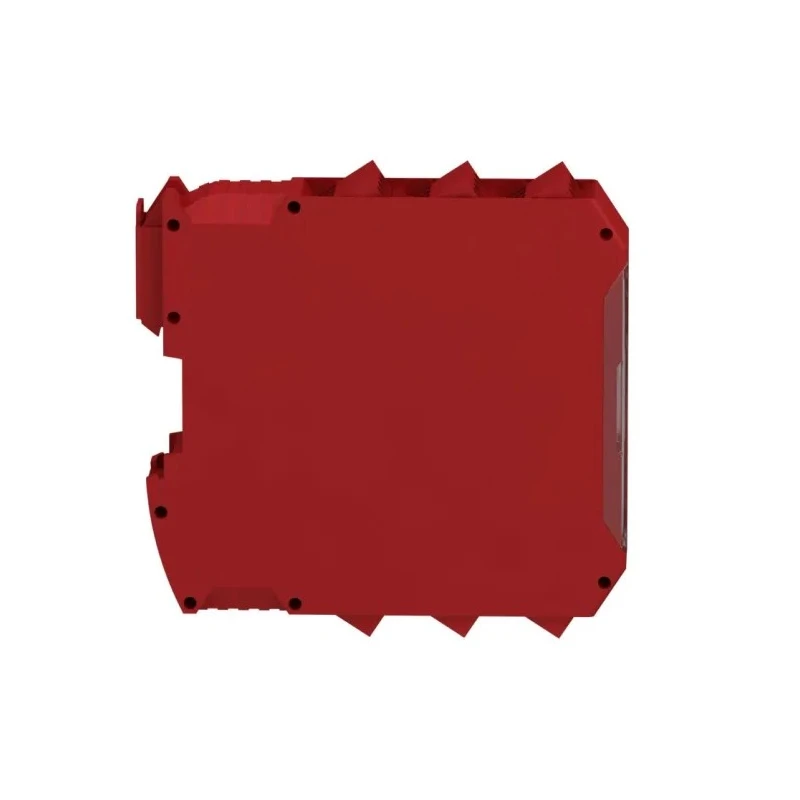

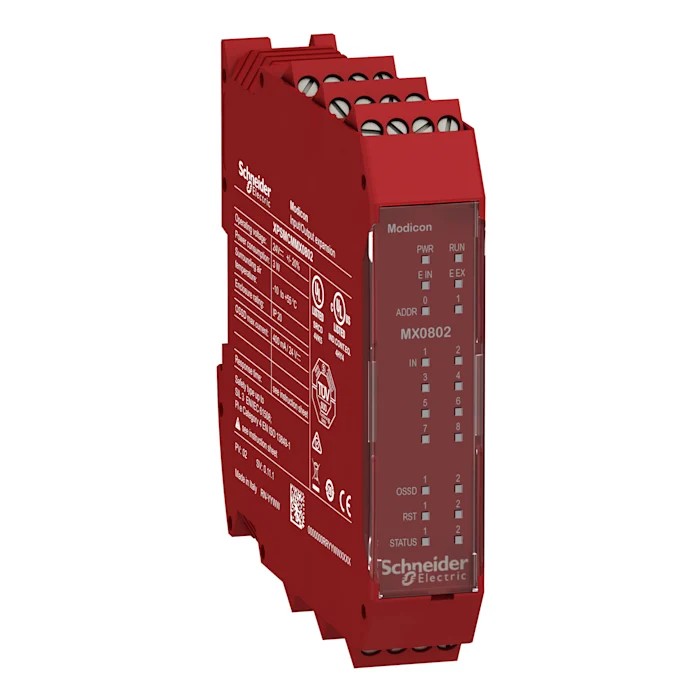

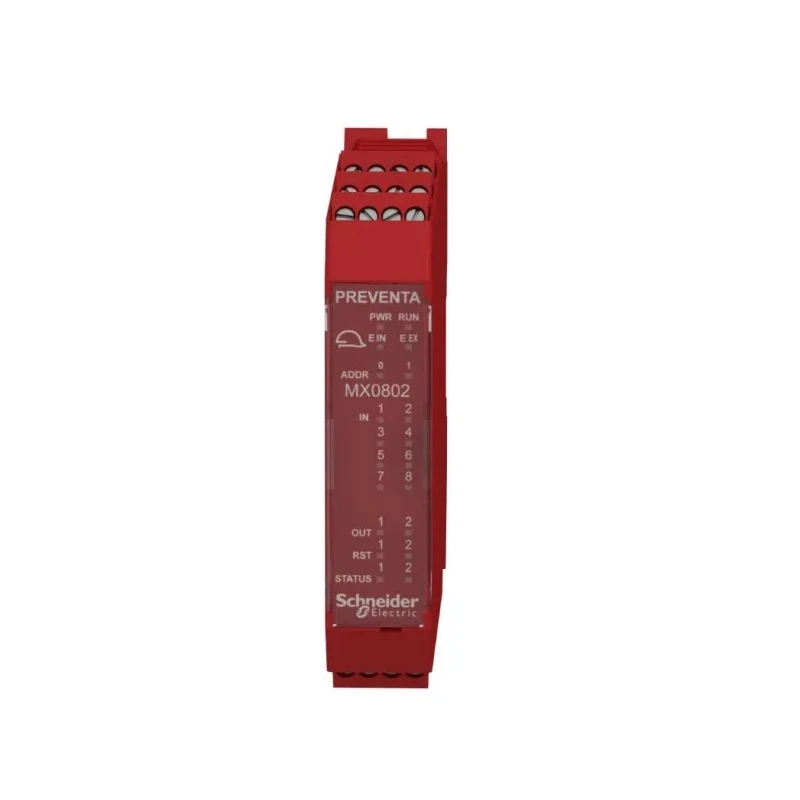

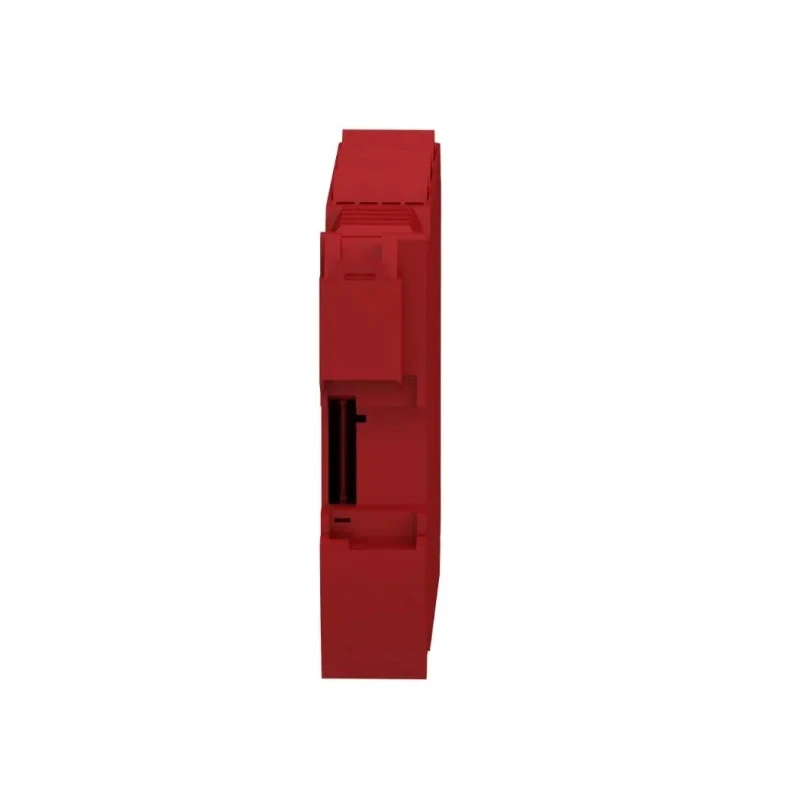

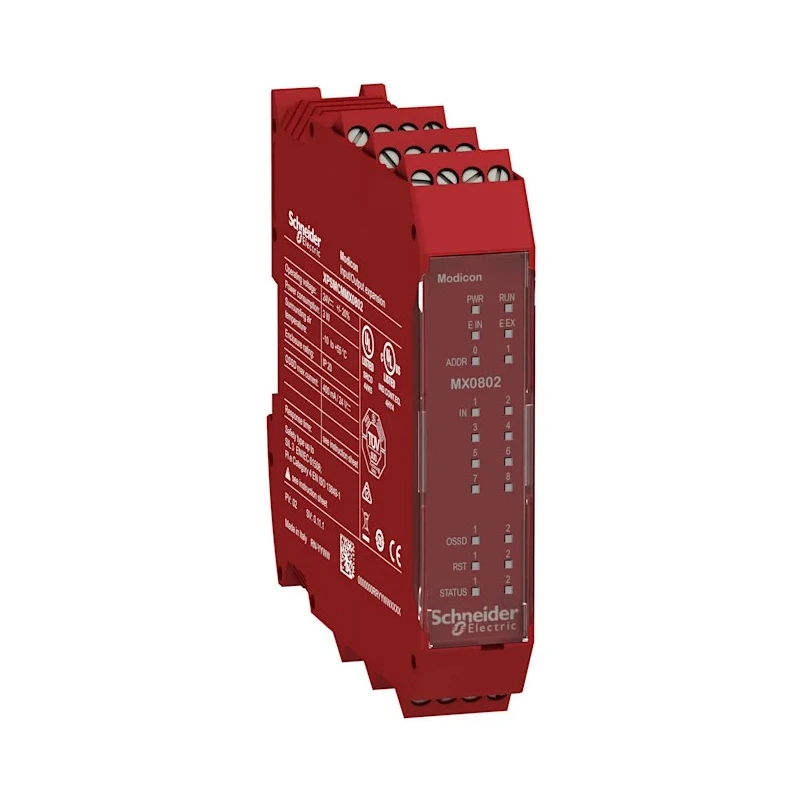

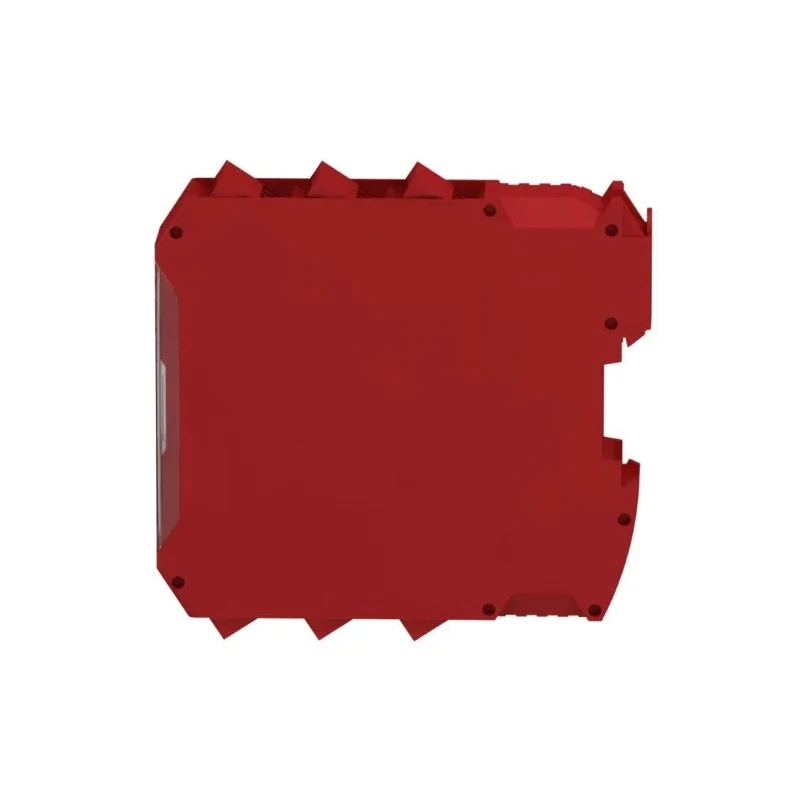

Schneider Electric Preventa Series Input/Output Module 10 Inputs 8 Outputs 24V dc XPSMCMMX0802

Schneider Electric XPSMCMMX0802 Preventa Series Input/Output Module is designed for safety-critical industrial automation applications, providing 10 digital inputs and 8 outputs operating at 24V dc. It ensures precise monitoring and control of safety devices in manufacturing, water treatment, HVAC, and commercial automation systems.

This expansion module is engineered to connect to Preventa modular safety controllers via the expansion bus connector and mounts securely on DIN rails, offering compactness and ease of installation with dimensions of 22.5 mm width, 99 mm height, and 114.5 mm depth.

Equipped with screw-type removable terminal blocks, it facilitates reliable wiring connections. The module supports line control monitoring through 4 dedicated test outputs allowing comprehensive status checks of input circuits. It features 2 pairs of OSSD outputs, each capable of 400 mA output current, configurable filters and delays for inputs, and independent control of output pairs.

Diagnostic output signals and front LED indicators enable simple troubleshooting and status monitoring. The device conforms to cULus safety standards, is TUV SUD certified to Cat 4, PLe EN/ISO 13849-1, and SILCL 3 IEC/EN 61508 & IEC/EN 60261 standards, assuring compliance with stringent safety requirements.

This module serves critical roles in industrial safety and process control, supporting Start/Restart interlock inputs and external device monitoring (EDM). Its green premium status and RoHS compliance align with environmental sustainability goals.

Complies with cULus standards for industrial safety. Mounts easily on DIN Rail for compact installation. Equipped with screw-type terminal blocks for secure connections. Provides 3W power rating ensuring low power consumption.

Supports line control monitoring with 4 test outputs for input circuit status. Includes 2 OSSD output pairs with 400 mA current each for safety device control. Features configurable filters, delays, and diagnostic output signaling.

Compact dimensions 22.5 × 99 × 114.5 mm for space-efficient mounting. Green premium and RoHS compliant ensuring environmental care. Compatible with Preventa modular safety controllers for seamless integration.

This Input/Output Module is ideal for implementation in industrial, laboratory, manufacturing, and commercial automation environments that require high safety integrity and reliable safety device monitoring.
