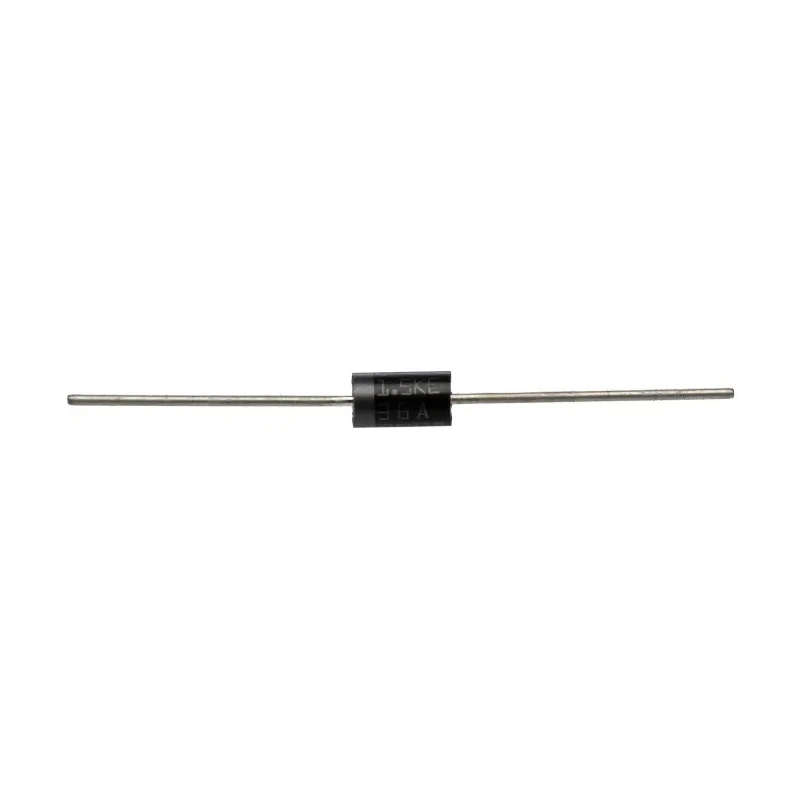

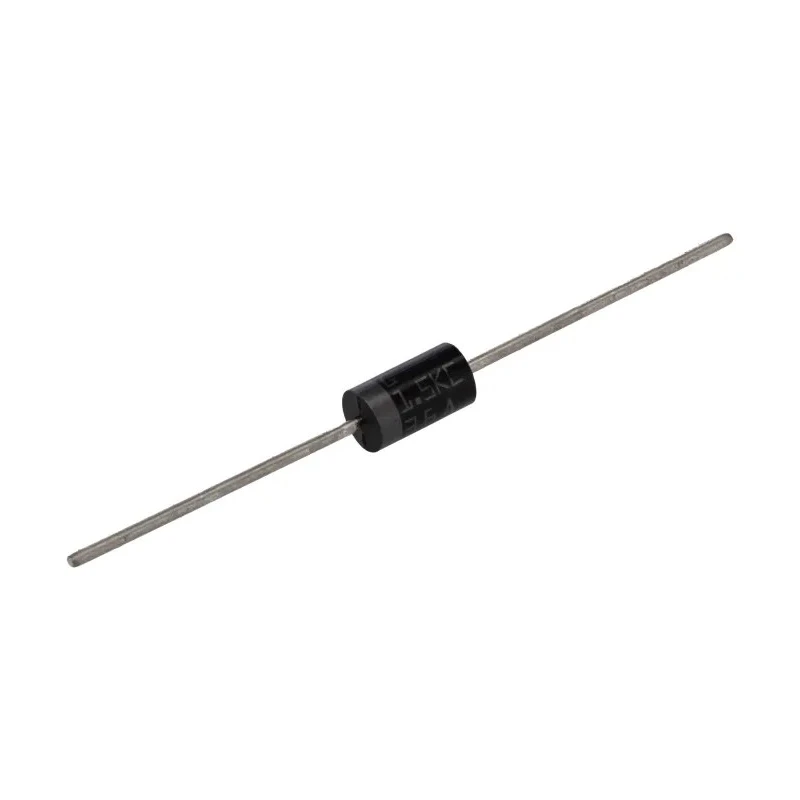

STMicroelectronics Uni-Directional TVS Diode 2-Pin DO-201 1.5 kW Peak Pulse Power 1.5KE36A

STMicroelectronics 1.5KE36A is a high-performance uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes and transients. This device features a single element configuration with a peak pulse power dissipation of 1.5 kW, making it ideal for protecting circuits against high energy transient voltage events.

Manufactured in a robust DO-201 through-hole package, this TVS diode supports a 2-pin configuration suitable for easy insertion into printed circuit boards. With a minimum breakdown voltage of 34.2 volts and a maximum reverse standoff voltage of 30.8 volts, it effectively clamps voltage surges to a safe clamping voltage of 64.3 volts, safeguarding downstream components from damage.

The device operates reliably under extreme temperature conditions from -65°C up to 175°C, ensuring durability in demanding industrial, automotive, and electronic applications. Its compact size with dimensions of 9.5 mm in length and 5.3 mm in diameter facilitates versatile deployment in space-constrained environments.

This TVS diode supports a maximum peak pulse current of 156 A, handling substantial transient currents without degradation, and features a minimal maximum reverse leakage current of 1 microampere, enhancing energy efficiency. Despite not having integrated ESD protection or meeting automotive standards, the 1.5KE36A is suitable for a broad range of industrial electronics, power supplies, and control systems requiring reliable transient surge protection.

Designed for robust transient voltage suppression in electrical and electronic circuits. Provides efficient protection for discrete semiconductors and sensitive electronic components. Reliable performance in industrial, manufacturing, and power management applications.

Compact through-hole DO-201 package supports easy PCB assembly and replacement. Capable of high surge energy dissipation with low leakage currents.

This STMicroelectronics TVS Diode is widely used across electronic manufacturing, power supply units, and industrial control equipment to improve durability and longevity by preventing voltage transient damages. Explore EnvMart’s extensive collection of semiconductor protection components for tailored circuit protection solutions.
