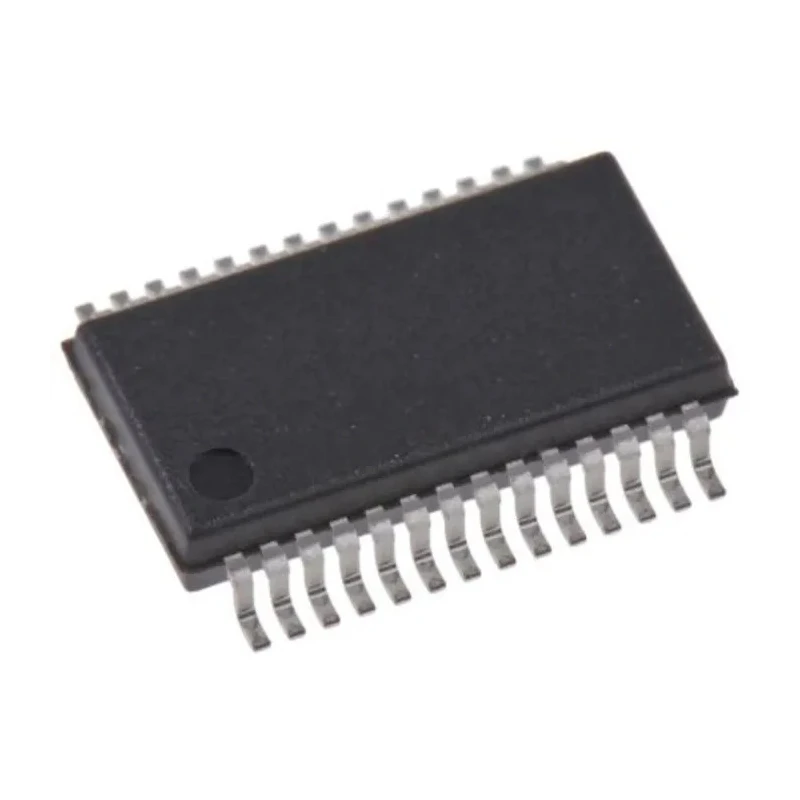

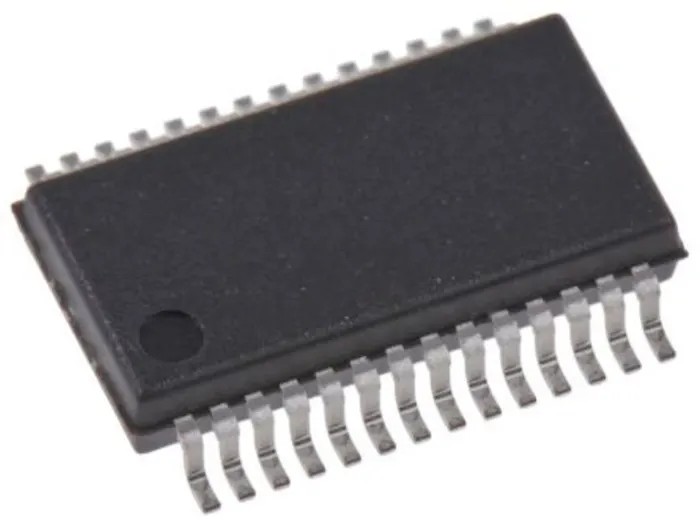

Maxim Integrated Line Transceiver CMOS Inverting 28-Pin SSOP MAX213EEAI+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated Line Transceiver CMOS Inverting 28-Pin SSOP MAX213EEAI+

Name: Maxim Integrated Line Transceiver CMOS Inverting 28-Pin SSOP MAX213EEAI+
Brand: Maxim Integrated
SKU: 159118
Price: 15.33 USD
Availability: InStock



Category Line Interface ICs Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Brand	Maxim Integrated
Height	1.99mm
Length	10.33mm
Model	MAX213EEAI+
Width	7.9mm
Mount Type	Surface
Output type	CMOS
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Polarity	Inverting
IC Type	Line Transceiver IC
Pin Count	28
Maximum Supply Voltage	5.5V
Logic Family	CMOS/TTL
Logic Function	Line Driver, Driver, Converter
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	10mA
Maximum Propagation Delay Time @ CL	10μs
Supply Current	20mA
Maximum Low Level Output Current	60mA

Key Features

Operates with a single +5V supply and CMOS logic interfacing.
Features 28-pin SSOP package with surface mount type for compact board space.
Supports input single ended signals and outputs CMOS inverting signals.
Designed with high ±15kV Human Body Model ESD protection for robust performance.
Operates within temperature range from -40°C to 85°C ensuring industrial grade reliability.
Maximum propagation delay time is 10μs at capacitive load, supporting efficient data transmission.
Supply current is 20mA with minimum and maximum supply voltage of 4.5V to 5.5V.
Pin count of 28 pins facilitates multiple connection points.

Product Description

Maxim Integrated MAX213EEAI+ is a CMOS Line Transceiver designed for inverting logic operation in a 28-pin SSOP surface mount package. This line driver and converter IC operates on a single +5V supply with integrated charge pump circuitry, simplifying power requirements in electronic circuits.

It delivers high reliability communication with enhanced ±15kV Human Body Model (HBM) electrostatic discharge protection, making it suitable for demanding environments. The device supports single-ended input signals and outputs CMOS inverting signals, ideal for interface and line driving applications.

Operating temperature ranges from -40°C to 85°C enable stable function in industrial or commercial electronic systems. The chip has a typical supply current of 20mA and a maximum propagation delay of 10 microseconds at capacitive loads, ensuring effective signal timing.

The package measures 10.33mm in length, 7.9mm in width, and 1.99mm in height with 28 pins, suitable for surface mounting on compact circuit boards.

The MAX213EEAI+ is widely applicable in industrial automation, instrumentation, communication equipment, and other semiconductor interface applications requiring CMOS line transceiver functions.

Operates with a single +5V supply, simplifying power design. Supports single ended input and CMOS inverting output signals. High ±15kV ESD protection ensures device safety and longevity. Wide operating temperature from -40°C to 85°C for industrial applications.

Integrates charge pump circuitry eliminating external capacitors. Compact 28-pin SSOP surface mount package for easy PCB integration. Maximum output current capability with 10mA high level and 60mA low level driving strength.

Supply voltage range of 4.5V to 5.5V provides design flexibility. Low propagation delay of 10 microseconds supports efficient data transmission. Ideal for line interface IC applications in electronic components and power connectors.

Explore Maxim Integrated and similar semiconductor components at EnvMart’s Electronics & Electricals category.

Explore more products in our Line Interface ICs category.
